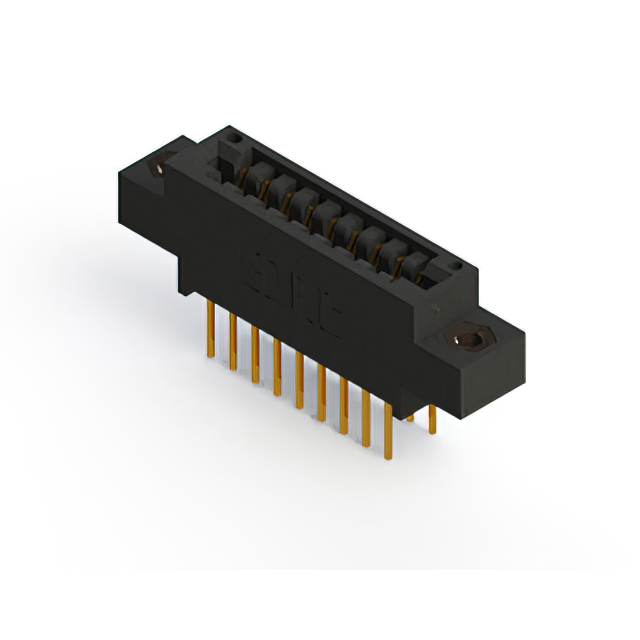

396-018 Series
Manufacturer: EDAC Inc.
Catalog
CONN EDGE SGL FMALE 18POS 0.125
...
| Part | Read Out | Color | Number of Positions | Flange Feature | Contact Material | Number of Positions/Bay/Row [custom] | Card Type | Termination Rows | Material - Insulation | Contact Finish | Contact Type | Mounting Type | Number of Rows | Gender | Pitch [x] | Pitch [x] | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Finish Thickness | Contact Finish Thickness | Flange Feature | Flange Feature | Features | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Single | Black | 18 | 4-40 Threaded Insert Top Mount Opening | Copper Alloy | 18 | Non Specified - Single Edge | 1 | Polyester Thermoplastic | Gold | Cantilever | Through Hole | 1 | Female | 0.125 in | 3.18 mm | -40 °C | 105 ░C | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | |||||
 EDAC Inc. | Single | Black | 18 | 4-40 Threaded Insert Top Mount Opening | Copper Alloy | 18 | Non Specified - Single Edge | 1 | Polyester Thermoplastic | Gold | Cantilever | Through Hole | 1 | Female | 0.125 in | 3.18 mm | -40 °C | 105 ░C | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | |||||
 EDAC Inc. | Dual | Black | 18 | Copper Alloy | 9 | Non Specified - Dual Edge | 2 | Polyester Thermoplastic | Gold | Cantilever | Board Edge Straddle Mount | 2 | Female | 0.125 in | 3.18 mm | -40 °C | 105 ░C | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | 3.25 mm | 0.128 in | Card Extender | |||
 EDAC Inc. | Single | Black | 18 | Flush Mount Side Opening Unthreaded | Copper Alloy | 18 | Non Specified - Single Edge | 1 | Polyester Thermoplastic | Gold | Cantilever | Through Hole Right Angle | 1 | Female | 0.125 in | 3.18 mm | -40 °C | 105 ░C | Solder Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | 3.25 mm | 0.128 " | |||
 EDAC Inc. | Single | Black | 18 | Flush Mount Top Opening Unthreaded | Copper Alloy | 18 | Non Specified - Single Edge | 1 | Polyester Thermoplastic | Gold | Cantilever | Through Hole | 1 | Female | 0.125 in | 3.18 mm | -40 °C | 105 ░C | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | 3.96 mm | 0.156 in | |||
 EDAC Inc. | Dual | Black | 18 | M3 Threaded Insert Top Mount Opening | Copper Alloy | 9 | Non Specified - Dual Edge | 2 | Polyester Thermoplastic | Gold | Cantilever | Through Hole | 2 | Female | 0.125 in | 3.18 mm | -40 °C | 105 ░C | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | |||||
 EDAC Inc. | Single | Black | 18 | Copper Alloy | 18 | Non Specified - Single Edge | 1 | Polyester Thermoplastic | Gold | Cantilever | Through Hole | 1 | Female | 0.125 in | 3.18 mm | -40 °C | 105 ░C | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | 3.25 mm | 0.128 in | ||||
EDAC Inc. | Dual | Black | 18 | Copper Alloy | 9 | Non Specified - Dual Edge | 2 | Polyester Thermoplastic | Gold | Cantilever | Through Hole Right Angle | 2 | Female | 0.125 in | 3.18 mm | -40 °C | 105 ░C | Solder Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | 3.25 mm | 0.128 in | ||||
 EDAC Inc. | Single | Black | 18 | Floating Bobbin Top Mount Opening | Copper Alloy | 18 | Non Specified - Single Edge | 1 | Polyester Thermoplastic | Gold | Cantilever | Through Hole | 1 | Female | 0.125 in | 3.18 mm | -40 °C | 105 ░C | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | 2.95 mm | 0.116 in | |||
 EDAC Inc. | Dual | Black | 18 | 4-40 Flush Mount Threaded Insert Top Opening | Copper Alloy | 9 | Non Specified - Dual Edge | 2 | Polyester Thermoplastic | Gold | Cantilever | Through Hole | 2 | Female | 0.125 in | 3.18 mm | -40 °C | 105 ░C | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám |
