PCA-6MA Series

Manufacturer: Adam Tech

Catalog

CONN FFC FPC 4POS 0.5MM R/A

Part	Housing Color	Contact Finish Thickness	Actuator Color	Current Rating (Amps)	Contact Finish	Number of Positions	Contact Material	FFC, FCB Thickness	Cable End Type	Connector/Contact Type	Height Above Board [z]	Height Above Board [z]	Locking Feature	Voltage Rating	Flat Flex Type	Housing Material	Features	Pitch	Pitch	Actuator Material	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Mounting Type
Adam Tech PCA-6MA-04-HD-3-G	Natural	Flash	Black	0.2 A	Gold	4	Copper Alloy	0.3 mm	Tapered	Contacts Top and Bottom	1 mm	0.039 "	Backlock Flip Lock	30 VDC	FFC FPC	Liquid Crystal Polymer (LCP)	Solder Retention Zero Insertion Force (ZIF)	0.02 "	0.5 mm	Liquid Crystal Polymer (LCP)	UL94 V-0	85 °C	-25 °C	Solder	Right Angle Surface Mount

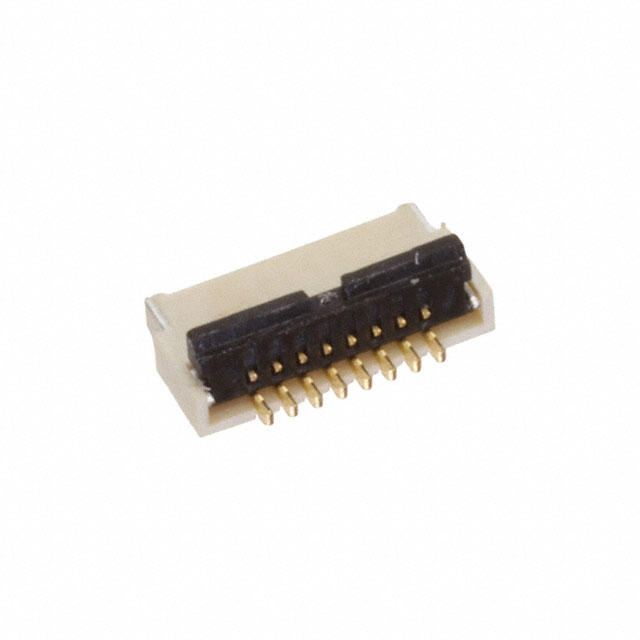

Adam Tech PCA-6MA-10-HD-3-G	Natural	Flash	Black	0.2 A	Gold	10	Copper Alloy	0.3 mm	Tapered	Contacts Top and Bottom	1 mm	0.039 "	Backlock Flip Lock	30 VDC	FFC FPC	Liquid Crystal Polymer (LCP)	Solder Retention Zero Insertion Force (ZIF)	0.02 "	0.5 mm	Liquid Crystal Polymer (LCP)	UL94 V-0	85 °C	-25 °C	Solder	Right Angle Surface Mount
Adam Tech PCA-6MA-08-HD-3-G-T/R	Natural	Flash	Black	0.2 A	Gold	8	Copper Alloy	0.3 mm	Tapered	Contacts Top and Bottom	1 mm	0.039 "	Backlock Flip Lock	30 VDC	FFC FPC	Liquid Crystal Polymer (LCP)	Solder Retention Zero Insertion Force (ZIF)	0.02 "	0.5 mm	Liquid Crystal Polymer (LCP)	UL94 V-0	85 °C	-25 °C	Solder	Right Angle Surface Mount
Adam Tech PCA-6MA-24-HD-3-G-T/R	Natural	Flash	Black	0.2 A	Gold	24	Copper Alloy	0.3 mm	Tapered	Contacts Top and Bottom	1 mm	0.039 "	Backlock Flip Lock	30 VDC	FFC FPC	Liquid Crystal Polymer (LCP)	Solder Retention Zero Insertion Force (ZIF)	0.02 "	0.5 mm	Liquid Crystal Polymer (LCP)	UL94 V-0	85 °C	-25 °C	Solder	Right Angle Surface Mount
Adam Tech PCA-6MA-10-HD-3-G-T/R	Natural	Flash	Black	0.2 A	Gold	10	Copper Alloy	0.3 mm	Tapered	Contacts Top and Bottom	1 mm	0.039 "	Backlock Flip Lock	30 VDC	FFC FPC	Liquid Crystal Polymer (LCP)	Solder Retention Zero Insertion Force (ZIF)	0.02 "	0.5 mm	Liquid Crystal Polymer (LCP)	UL94 V-0	85 °C	-25 °C	Solder	Right Angle Surface Mount

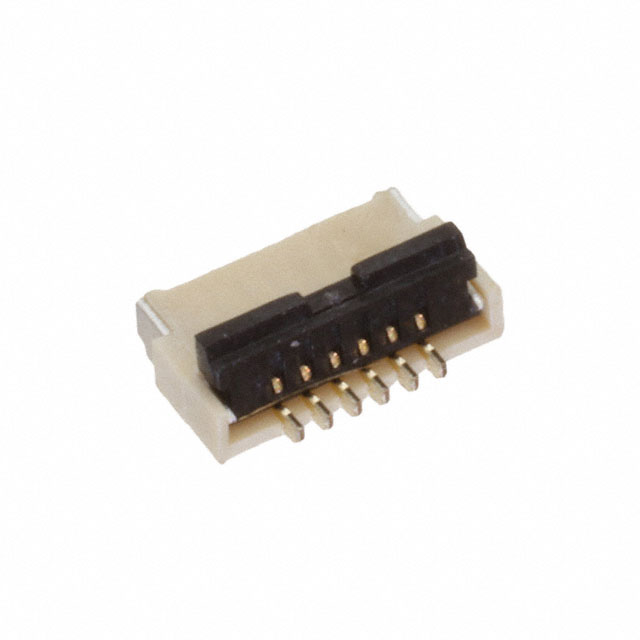

Adam Tech PCA-6MA-06-HD-3-G	Natural	Flash	Black	0.2 A	Gold	6	Copper Alloy	0.3 mm	Tapered	Contacts Top and Bottom	1 mm	0.039 "	Backlock Flip Lock	30 VDC	FFC FPC	Liquid Crystal Polymer (LCP)	Solder Retention Zero Insertion Force (ZIF)	0.02 "	0.5 mm	Liquid Crystal Polymer (LCP)	UL94 V-0	85 °C	-25 °C	Solder	Right Angle Surface Mount
