SS075Q Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH SNAP ACT SPDT 0.1A 125V
| Part | Operating Position [x] | Operating Position [x] | Termination Style | Release Force | Current Rating (Amps) | Actuator Type | Circuit | Operating Force | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating - AC | Switch Function | Pretravel | Pretravel | Mounting Type | Electrical Life | Mechanical Life | Operating Position | Operating Position |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

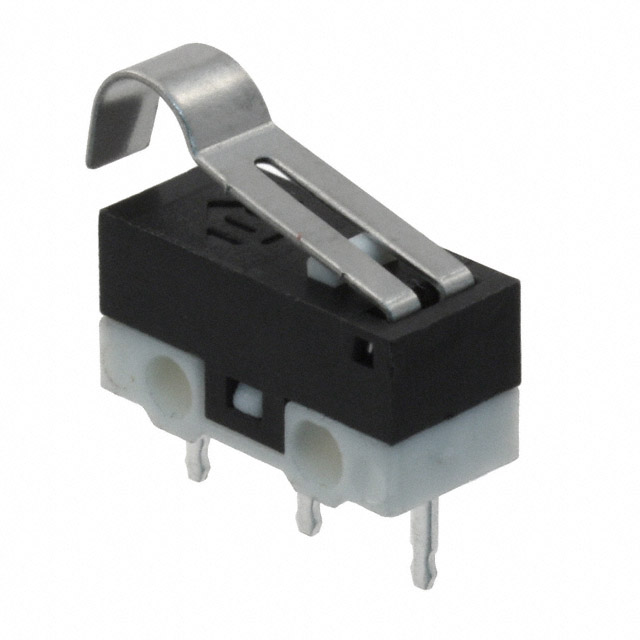

 E-Switch | 0.38 in | 9.7 mm | PC Pin | 15 gf | 100 mA | Lever Simulated Roller | SPDT | 50 gf | -25 °C | 75 ░C | 125 V | On-Mom | 0.053 " | 1.35 mm | Through Hole | 100000 Cycles | 1000000 Cycles | ||
 E-Switch | Solder Lug | 15 gf | 100 mA | Lever Straight | SPDT | 40 gf | -25 °C | 75 ░C | 125 V | On-Mom | 0.063 in | 1.6 mm | Chassis Mount | 100000 Cycles | 1000000 Cycles | 0.345 in | 8.8 mm | ||
E-Switch | Solder Lug | 10 gf | 100 mA | Lever Simulated Roller | SPDT | -25 °C | 75 ░C | 125 V | On-Mom | 0.08 in | 2 mm | Chassis Mount | 100000 Cycles | 1000000 Cycles | 0.425 in | 10.8 mm |
