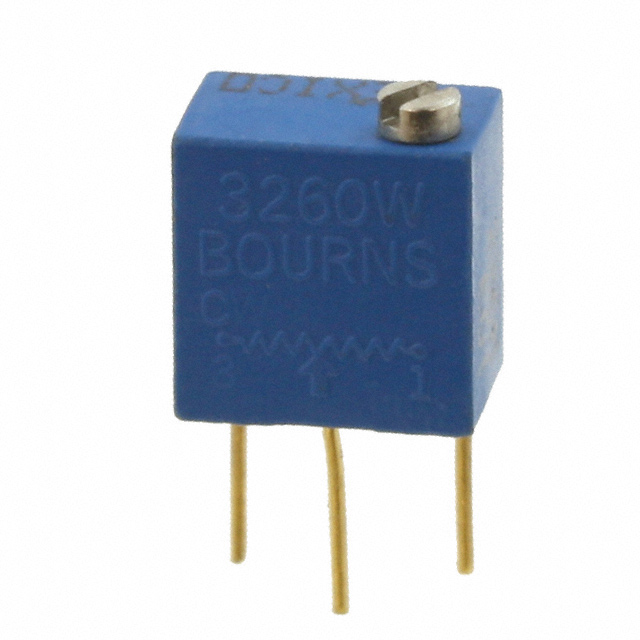

3260W Series

Catalog

TRIMMER 10K OHM 0.25W PC PIN TOP

Part	Adjustment Type	Mounting Type	Power (Watts)	Power (Watts)	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Temperature Coefficient	Tolerance	Resistive Material	Termination Style	Resistance	Number of Turns
Bourns Inc. 3260W-1-103	Top Adjustment	Through Hole	0.25 W	0.25 W	4.32 mm	0.17 in	0.25 in	6.35 mm	70 ppm/°C	5 %	Wirewound	PC Pins	10000 Ohms	11
Bourns Inc. 3260W-1-201	Top Adjustment	Through Hole	0.25 W	0.25 W	4.32 mm	0.17 in	0.25 in	6.35 mm	70 ppm/°C	5 %	Wirewound	PC Pins	200 Ohms	11
Bourns Inc. 3260W-1-100	Top Adjustment	Through Hole	0.25 W	0.25 W	4.32 mm	0.17 in	0.25 in	6.35 mm	70 ppm/°C	5 %	Wirewound	PC Pins	10 Ohms	11
Bourns Inc. 3260W-1-101	Top Adjustment	Through Hole	0.25 W	0.25 W	4.32 mm	0.17 in	0.25 in	6.35 mm	70 ppm/°C	5 %	Wirewound	PC Pins	100 Ohms	11
Bourns Inc. 3260W-1-502	Top Adjustment	Through Hole	0.25 W	0.25 W	4.32 mm	0.17 in	0.25 in	6.35 mm	70 ppm/°C	5 %	Wirewound	PC Pins	5 kOhms	11
Bourns Inc. 3260W-1-202	Top Adjustment	Through Hole	0.25 W	0.25 W	4.32 mm	0.17 in	0.25 in	6.35 mm	70 ppm/°C	5 %	Wirewound	PC Pins	2 kOhms	11
Bourns Inc. 3260W-1-203	Top Adjustment	Through Hole	0.25 W	0.25 W	4.32 mm	0.17 in	0.25 in	6.35 mm	70 ppm/°C	5 %	Wirewound	PC Pins	20 kOhms	11
