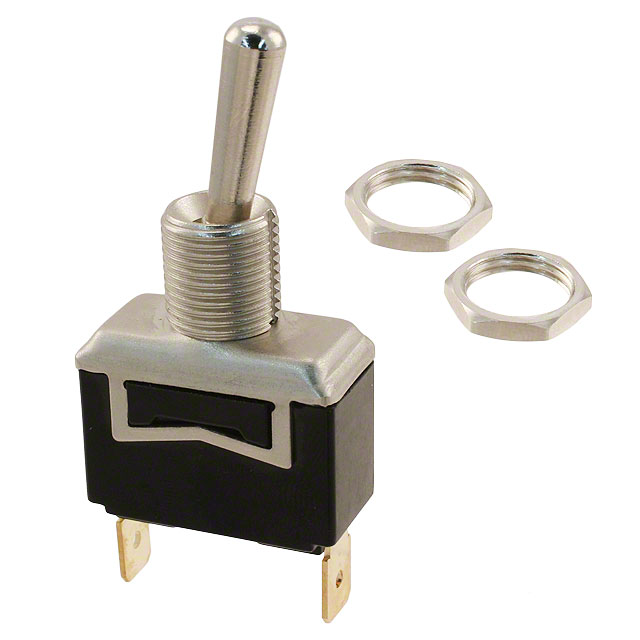

ST141 Series
Manufacturer: E-Switch
Beta
⌘K
TOGGLE SWITCH, OFF-ON, SPST, NON ILLUMINATED, 20 A, PANEL MOUNT
| Part | Electrical Life | Actuator Material | Switch Function | Voltage Rating - AC | Circuit | Operating Temperature [Min] | Operating Temperature [Max] | Actuator Type | Actuator Length [x] | Bushing Thread | Current Rating (Amps) | Panel Cutout Dimensions [diameter] | Mounting Type | Termination Style | Illumination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 6000 Cycles | Brass Nickel Plated | On-Off | 125 V | SPST | 0 °C | 85 °C | Standard Round | 19.5 mm | M12 x 1 | 20 A | 12 mm | Panel Mount | Quick Connect - 0.250" (6.3mm) | Non-Illuminated |
 E-Switch | 6000 Cycles | Brass Nickel Plated | On-Off | 125 V | SPST | 0 °C | 85 °C | Standard Round | 13 mm | M12 x 1 | 20 A | 12 mm | Panel Mount | Quick Connect - 0.250" (6.3mm) | Non-Illuminated |
 E-Switch | 6000 Cycles | Brass Nickel Plated | On-Off | 125 V | SPST | 0 °C | 85 °C | Standard Round | 19 mm | 15/32-32 | 20 A | 12 mm | Panel Mount | Quick Connect - 0.250" (6.3mm) | Non-Illuminated |
