391-090 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 90POS 0.100

Part	Termination Rows [custom]	Material - Insulation	Number of Rows [custom]	Pitch	Pitch	Operating Temperature [Min]	Operating Temperature [Max]	Color	Contact Material	Read Out	Mounting Type	Number of Positions	Number of Positions/Bay/Row	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Contact Finish Thickness	Contact Finish Thickness	Termination	Card Thickness [Max]	Card Thickness [Min]	Gender	Contact Finish	Card Type	Contact Type	Features
EDAC Inc. 391-090-522-203	2	Polyester Thermoplastic	2	0.1 "	2.54 mm	-40 C	105 ░C	Black	Copper Alloy	Dual	Through Hole	90	45	0.116 "	Floating Bobbin Flush Mount	2.95 mm	0.25 Ám	10 Áin	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Gold	Non Specified - Dual Edge	Semi Bellows
EDAC Inc. 391-090-555-208	2	Polyester Thermoplastic	2	0.1 "	2.54 mm	-40 C	105 ░C	Black	Copper Alloy	Dual	Through Hole	90	45		4-40 Flush Mount Threaded Insert Top Opening		0.25 Ám	10 Áin	Solder Eyelet(s)	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Gold	Non Specified - Dual Edge	Semi Bellows	Card Extender
EDAC Inc. 391-090-520-202	2	Polyester Thermoplastic	2	0.1 "	2.54 mm	-40 C	105 ░C	Black	Copper Alloy	Dual	Through Hole	90	45	0.128 "	Flush Mount Top Opening Unthreaded	3.25 mm	0.25 Ám	10 Áin	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Gold	Non Specified - Dual Edge	Semi Bellows
EDAC Inc. 391-090-555-204	2	Polyester Thermoplastic	2	0.1 "	2.54 mm	-40 C	105 ░C	Black	Copper Alloy	Dual	Through Hole	90	45	0.156 "	Flush Mount Top Opening Unthreaded	3.96 mm	0.25 Ám	10 Áin	Solder Eyelet(s)	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Gold	Non Specified - Dual Edge	Semi Bellows	Card Extender

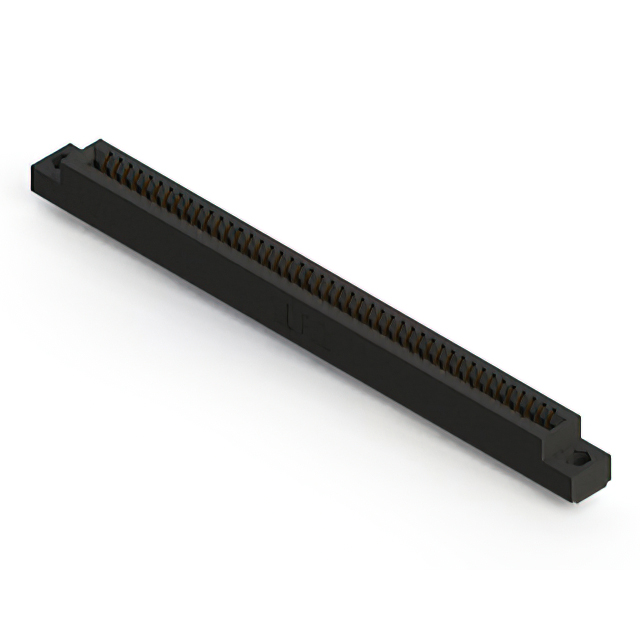

EDAC Inc. 391-090-520-204	2	Polyester Thermoplastic	2	0.1 "	2.54 mm	-40 C	105 ░C	Black	Copper Alloy	Dual	Through Hole	90	45	0.156 "	Flush Mount Top Opening Unthreaded	3.96 mm	0.25 Ám	10 Áin	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Gold	Non Specified - Dual Edge	Semi Bellows
EDAC Inc. 391-090-522-202	2	Polyester Thermoplastic	2	0.1 "	2.54 mm	-40 C	105 ░C	Black	Copper Alloy	Dual	Through Hole	90	45	0.128 "	Flush Mount Top Opening Unthreaded	3.25 mm	0.25 Ám	10 Áin	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Gold	Non Specified - Dual Edge	Semi Bellows
EDAC Inc. 391-090-556-201	2	Polyester Thermoplastic	2	0.1 "	2.54 mm	-40 C	105 ░C	Black	Copper Alloy	Dual	Board Edge Straddle Mount	90	45				0.25 Ám	10 Áin	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Gold	Non Specified - Dual Edge	Semi Bellows	Card Extender

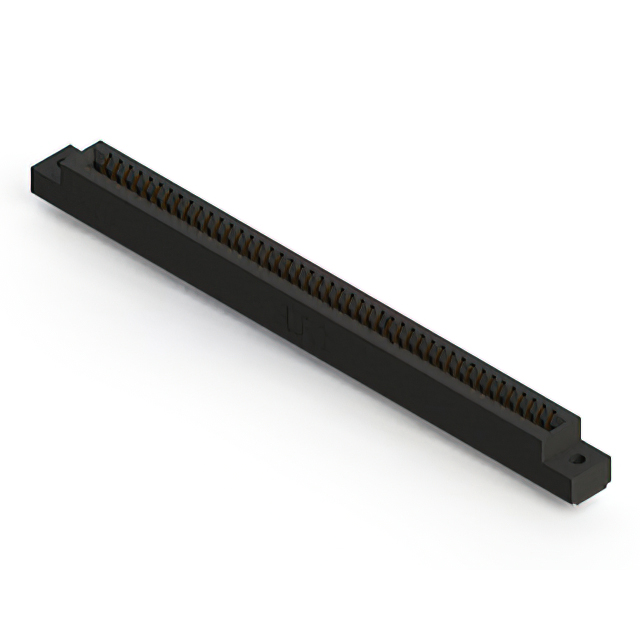

EDAC Inc. 391-090-524-202	2	Polyester Thermoplastic	2	0.1 "	2.54 mm	-40 C	105 ░C	Black	Copper Alloy	Dual	Through Hole	90	45	0.128 "	Flush Mount Top Opening Unthreaded	3.25 mm	0.25 Ám	10 Áin	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Gold	Non Specified - Dual Edge	Semi Bellows
EDAC Inc. 391-090-521-203	2	Polyester Thermoplastic	2	0.1 "	2.54 mm	-40 C	105 ░C	Black	Copper Alloy	Dual	Through Hole	90	45	0.116 "	Floating Bobbin Flush Mount	2.95 mm	0.25 Ám	10 Áin	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Gold	Non Specified - Dual Edge	Semi Bellows
EDAC Inc. 391-090-555-203	2	Polyester Thermoplastic	2	0.1 "	2.54 mm	-40 C	105 ░C	Black	Copper Alloy	Dual	Through Hole	90	45	0.116 "	Floating Bobbin Flush Mount	2.95 mm	0.25 Ám	10 Áin	Solder Eyelet(s)	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Gold	Non Specified - Dual Edge	Semi Bellows	Card Extender
