147730 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

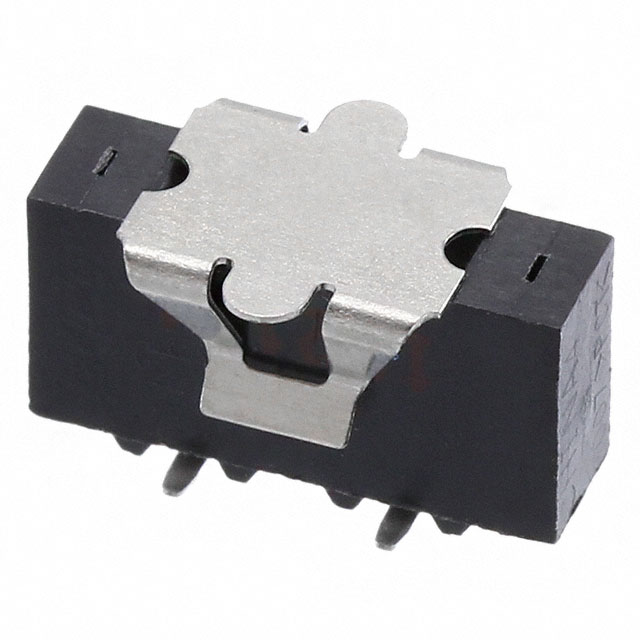

3 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SURFACE MOUNT, RECEPTACLE, ROHS COMPLIANT
| Part | Insulation Height | Insulation Height | Termination | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Type | Style | Insulation Material | Mounting Type | Features | Contact Shape | Contact Finish - Mating | Fastening Type | Pitch - Mating | Pitch - Mating | Number of Positions Loaded | Contact Finish - Post | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Rows | Contact Material | Current Rating (Amps) | Insulation Color | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 6.73 mm | 0.265 in | Solder | 150 Áin | 3.81 Ám | Female Socket | Board to Board Cable | Polyester Glass Filled | Surface Mount | Board Lock Pick and Place | Square | Gold | Push-Pull | 0.1 in | 2.54 mm | All | Tin | 10 çin | 0.25 çm | 1 | Phosphor Bronze | 2 A | Black | 125 °C | -65 ░C | Receptacle Bottom or Top Entry | UL94 V-0 |
