1102305 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

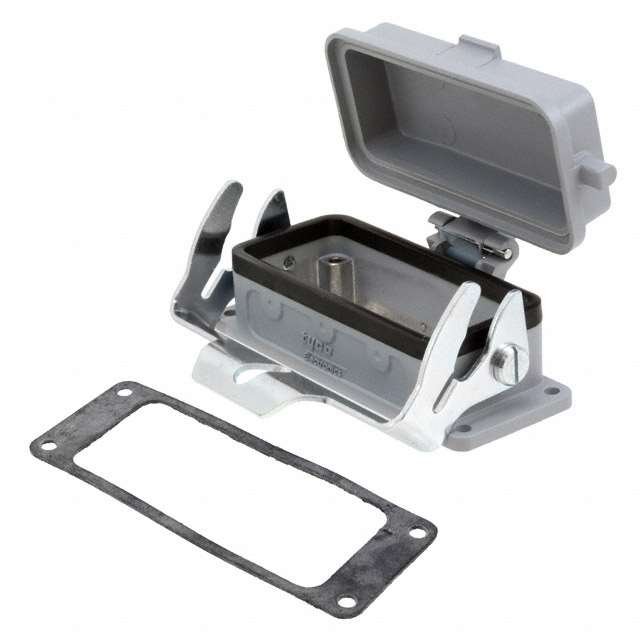

CONN BASE BOTTOM ENTRY SZ6
| Part | Style | Housing Finish | Connector Type | Features | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size | Lock Location | Ingress Protection | Housing Color | Housing Material | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Bottom Entry | Powder Coated | Base - Panel Mount | Cover | 1.713 in | 113 mm | 28.5 mm | 4.449 " | 43.5 mm | 1.122 " | 6 | Locking Clip (1) on Base Bottom | IP65 - Dust Tight Water Resistant | Gray | Aluminum Alloy Die Cast | ||
 TE Connectivity AMP Connectors | Bottom Entry | Aluminum Oxide | Base - Panel Mount | Cover | 1.713 in | 113 mm | 28.5 mm | 4.449 " | 43.5 mm | 1.122 " | 6 | Locking Clip (1) on Base Bottom | IP65 - Dust Tight Water Resistant | Black | Aluminum Alloy Die Cast | 80 °C | -40 C |
