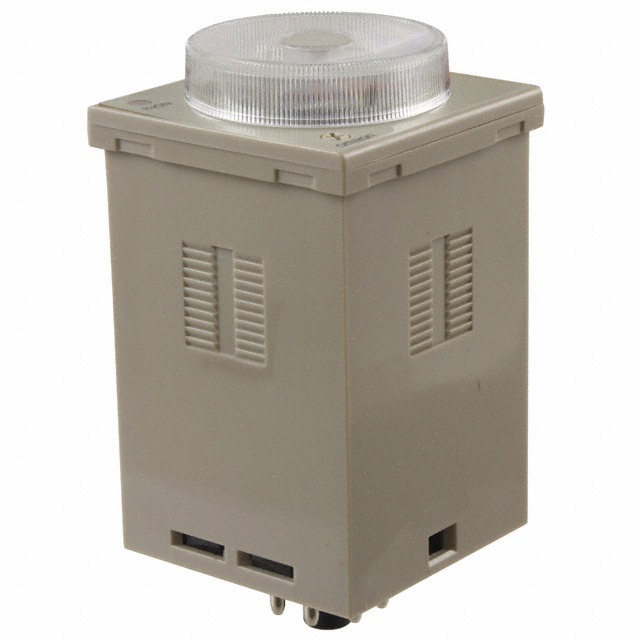

H3CR-H Series

Manufacturer: Omron Electronics Inc-EMC Div

Catalog

RELAY TIME DELAY 12MIN 5A 250V

Part	Contact Rating @ Voltage	Termination Style	Relay Type	Function	Timing Adjustment Method	Delay Time [Min]	Delay Time [Max]	Circuit	Voltage - Supply [Min]	Voltage - Supply [Max]	Mounting Type	Timing Initiate Method	Voltage - Supply

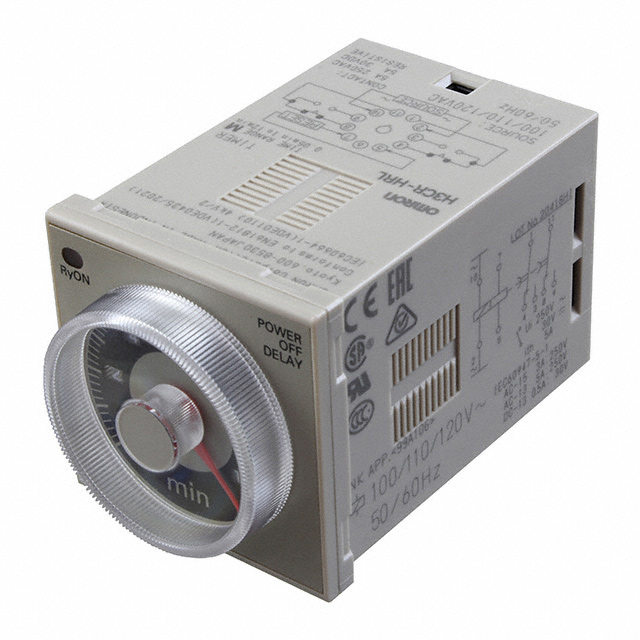

Omron Electronics Inc-EMC Div H3CR-HRL AC100-120 M	5 A 250 VAC	Plug In 11 Pin (Octal)	Mechanical Relay	Off-Delay	Hand Dial	0.05 Min	12 Min	DPDT (2 Form C)	100 VAC	120 VAC	Socketable	Input Voltage
Omron Electronics Inc-EMC Div H3CR-H8RL AC100-120 S	5 A 250 VAC	Plug In 8 Pin (Octal)	Mechanical Relay	Off-Delay	Hand Dial	0.05 Sec	12 Sec		100 VAC	120 VAC	Socketable	Input Voltage
Omron Electronics Inc-EMC Div H3CR-H8L DC100-125 S	5 A 250 VAC	Plug In 8 Pin (Octal)	Mechanical Relay	Off-Delay	Hand Dial	0.05 Sec	12 Sec	DPDT (2 Form C)	100 VDC	125 VDC	Socketable	Input Voltage
Omron Electronics Inc-EMC Div H3CR-H8RL AC/DC24 S	5 A 250 VAC	Plug In 8 Pin (Octal)	Mechanical Relay	Off-Delay	Hand Dial	0.05 Sec	12 Sec				Socketable	Input Voltage	24 VAC
Omron Electronics Inc-EMC Div H3CR-H8RL DC100-125 M	5 A 250 VAC	Plug In 8 Pin (Octal)	Mechanical Relay	Off-Delay	Hand Dial	0.05 Min	12 Min		100 VDC	125 VDC	Socketable	Input Voltage
Omron Electronics Inc-EMC Div H3CR-HRL AC200-240 M	5 A 250 VAC	Plug In 11 Pin (Octal)	Mechanical Relay	Off-Delay	Hand Dial	0.05 Min	12 Min	DPDT (2 Form C)	200 VAC	240 VAC	Socketable	Input Voltage
Omron Electronics Inc-EMC Div H3CR-H8L AC/DC24 M	5 A 250 VAC	Plug In 8 Pin (Octal)	Mechanical Relay	Off-Delay	Hand Dial	0.05 Min	12 Min	DPDT (2 Form C)			Socketable	Input Voltage	24 VAC
Omron Electronics Inc-EMC Div H3CR-HRL DC48 M	5 A 250 VAC	Plug In 11 Pin (Octal)	Mechanical Relay	Off-Delay	Hand Dial	0.05 Min	12 Min	DPDT (2 Form C)			Socketable	Input Voltage	48 VDC

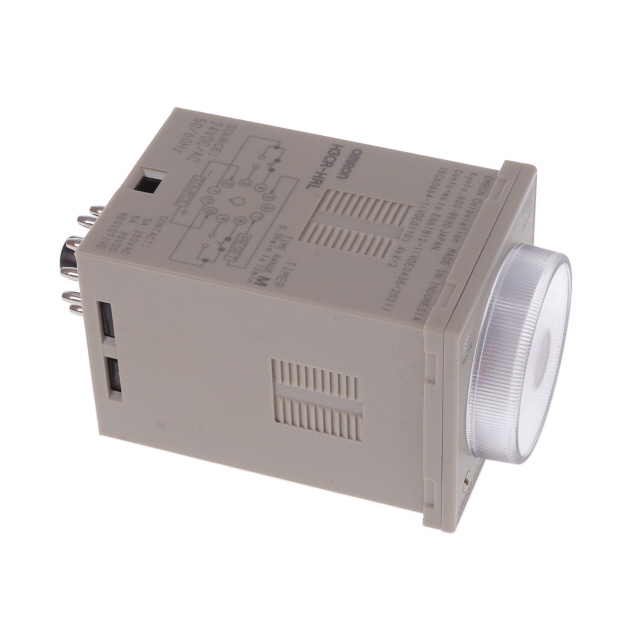

Omron Electronics Inc-EMC Div H3CR-HRL AC/DC24 M	5 A 250 VAC	Plug In 11 Pin (Octal)	Mechanical Relay	Off-Delay	Hand Dial	0.05 Min	12 Min	DPDT (2 Form C)			Socketable	Input Voltage	24 VAC
Omron Electronics Inc-EMC Div H3CR-H8L AC200-240 S	5 A 250 VAC	Plug In 8 Pin (Octal)	Mechanical Relay	Off-Delay	Hand Dial	0.05 Sec	12 Sec	DPDT (2 Form C)	200 VAC	240 VAC	Socketable	Input Voltage
