745C101 Series

Catalog

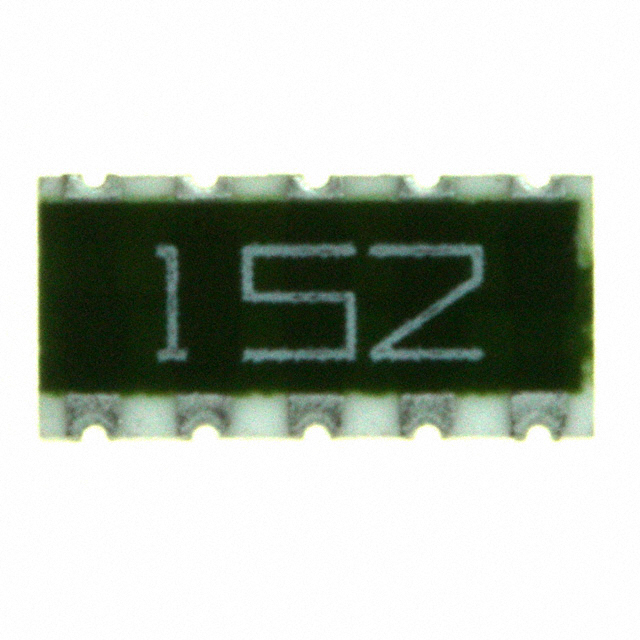

RES ARRAY 8 RES 15K OHM 2512

Part	Resistance	Operating Temperature (Max)	Operating Temperature (Min)	Tolerance	Circuit Type	Height - Seated (Max)	Package / Case	Applications	Number of Pins	Power Per Element	Size / Dimension Length	Size / Dimension Width	Temperature Coefficient	Temperature Coefficient (Highest)	Temperature Coefficient (Lowest)	Number of Resistors	Mounting Type
CTS Resistor Products 745C101153JTR	15 kOhm	125 °C	-55 °C	5 %	Bussed	0.028 in	2512 (6432 Metric) Concave Long Side Terminals	DDR SDRAM DRAM MDDR	10	63 mW	0.252 in	0.126 in	250 ppm/°C	250 ppm/°C	-250 ppm/°C	8	Surface Mount
CTS Resistor Products 745C101331JTR	330 Ohm	125 °C	-55 °C	5 %	Bussed	0.028 in	2512 (6432 Metric) Concave Long Side Terminals	DDR SDRAM DRAM MDDR	10	63 mW	0.252 in	0.126 in	250 ppm/°C	250 ppm/°C	-250 ppm/°C	8	Surface Mount
CTS Resistor Products 745C101682JP	6.8 kOhm	125 °C	-55 °C	5 %	Bussed	0.028 in	2512 (6432 Metric) Concave Long Side Terminals	DDR SDRAM DRAM MDDR	10	63 mW	0.252 in	0.126 in	250 ppm/°C	250 ppm/°C	-250 ppm/°C	8	Surface Mount
CTS Resistor Products 745C101474JP	470 kOhm	125 °C	-55 °C	5 %	Bussed	0.028 in	2512 (6432 Metric) Concave Long Side Terminals	DDR SDRAM DRAM MDDR	10	63 mW	0.252 in	0.126 in	250 ppm/°C	250 ppm/°C	-250 ppm/°C	8	Surface Mount
CTS Resistor Products 745C101122JP	1.2 kOhm	125 °C	-55 °C	5 %	Bussed	0.028 in	2512 (6432 Metric) Concave Long Side Terminals	DDR SDRAM DRAM MDDR	10	63 mW	0.252 in	0.122 in	250 ppm/°C	250 ppm/°C	-250 ppm/°C	8	Surface Mount
CTS Resistor Products 745C101224JTR	220 kOhm	125 °C	-55 °C	5 %	Bussed	0.028 in	2512 (6432 Metric) Concave Long Side Terminals	DDR SDRAM DRAM MDDR	10	63 mW	0.252 in	0.126 in	250 ppm/°C	250 ppm/°C	-250 ppm/°C	8	Surface Mount
CTS Resistor Products 745C101121JP	120 Ohm	125 °C	-55 °C	5 %	Bussed	0.028 in	2512 (6432 Metric) Concave Long Side Terminals	DDR SDRAM DRAM MDDR	10	63 mW	0.252 in	0.122 in	250 ppm/°C	250 ppm/°C	-250 ppm/°C	8	Surface Mount
CTS Resistor Products 745C101183JP	18 kOhm	125 °C	-55 °C	5 %	Bussed	0.028 in	2512 (6432 Metric) Concave Long Side Terminals	DDR SDRAM DRAM MDDR	10	63 mW	0.252 in	0.122 in	250 ppm/°C	250 ppm/°C	-250 ppm/°C	8	Surface Mount
CTS Resistor Products 745C101151JP	150 Ohm	125 °C	-55 °C	5 %	Bussed	0.028 in	2512 (6432 Metric) Concave Long Side Terminals	DDR SDRAM DRAM MDDR	10	63 mW	0.252 in	0.126 in	250 ppm/°C	250 ppm/°C	-250 ppm/°C	8	Surface Mount
CTS Resistor Products 745C101104JTR	100 kOhm	125 °C	-55 °C	5 %	Bussed	0.028 in	2512 (6432 Metric) Concave Long Side Terminals	DDR SDRAM DRAM MDDR	10	63 mW	0.252 in	0.126 in	250 ppm/°C	250 ppm/°C	-250 ppm/°C	8	Surface Mount
