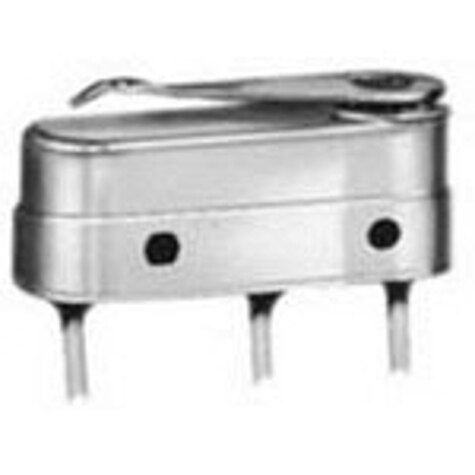

4HS143 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
BASIC / SNAP ACTION SWITCHES SEALED SE
| Part | Circuit | Mounting Type | Release Force | Voltage Rating - AC | Operating Position | Operating Position | Differential Travel | Differential Travel | Operating Temperature [Max] | Operating Temperature [Min] | Switch Function | Pretravel | Pretravel | Actuator Type | Voltage Rating - DC | Termination Style | Operating Force [Max] | Operating Force [Min] | Overtravel [custom] | Overtravel [custom] | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | SPDT | Chassis Mount | 113 gf | 125 V | 15.6 mm | 0.615 in | 0.5 mm | 0.02 in | 121 C | -54 °C | On-Mom | 2.16 mm | 0.085 in | Lever Straight | 28 V | Wire Leads | 922 gf | 425 gf | 0.01 " | 0.25 mm | 10 A 500 mA |
