MDLSP3 Series

Catalog

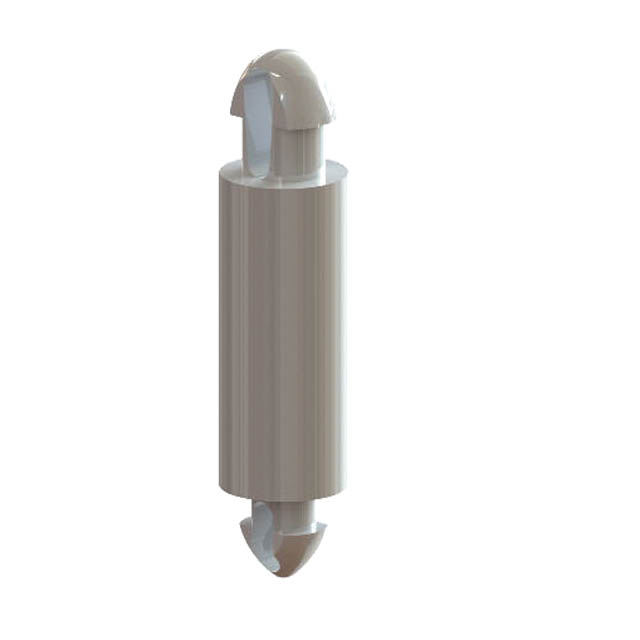

BRD SPT SNAP LOCK NYLON 1/16"

Part	Material	Holding Type	Support Panel Thickness	Support Panel Thickness	Mounting Panel Thickness	Mounting Panel Thickness	Between Board Height	Between Board Height	Between Board Height	Length - Overall [x]	Length - Overall [x]	Length - Overall [x]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Mounting Type	Between Board Height [z]	Length - Overall	Length - Overall	Length - Overall	Between Board Height [z]
Essentra Components MDLSP3-1-01	Nylon	Snap Lock	0.042 in	1.07 mm	1.65 mm	0.065 in	0.0625 in	0.063 in	1.6 mm	0.313 "	0.3125 "	7.95 mm	2.5 mm	0.098 in	0.079 in	2 mm	Snap Lock
Essentra Components MDLSP3-4-01	Nylon	Snap Lock	0.042 in	1.07 mm	1.65 mm	0.065 in			6.4 mm	0.501 in		12.72 mm	2.5 mm	0.098 in	0.079 in	2 mm	Snap Lock	0.252 in
Essentra Components MDLSP3-2-01	Nylon	Snap Lock	0.042 in	1.07 mm	1.65 mm	0.065 in							2.5 mm	0.098 in	0.079 in	2 mm	Snap Lock		0.375 in	9.53 mm	0.375 in
Essentra Components MDLSP3-6-01	Nylon	Snap Lock	0.042 in	1.07 mm	1.65 mm	0.065 in		0.374 in	9.5 mm	0.623 in		15.82 mm	2.5 mm	0.098 in	0.079 in	2 mm	Snap Lock
Essentra Components MDLSP3-3-01	Nylon	Snap Lock	0.042 in	1.07 mm	1.65 mm	0.065 in		0.189 in	4.8 mm	0.438 in		11.13 mm	2.5 mm	0.098 in	0.079 in	2 mm	Snap Lock
Essentra Components MDLSP3-5-01	Nylon	Snap Lock	0.042 in	1.07 mm	1.65 mm	0.065 in				0.56 in		14.22 mm	2.5 mm	0.098 in	0.079 in	2 mm	Snap Lock	0.311 "				7.9 mm
