HSCSHNN Series

Catalog

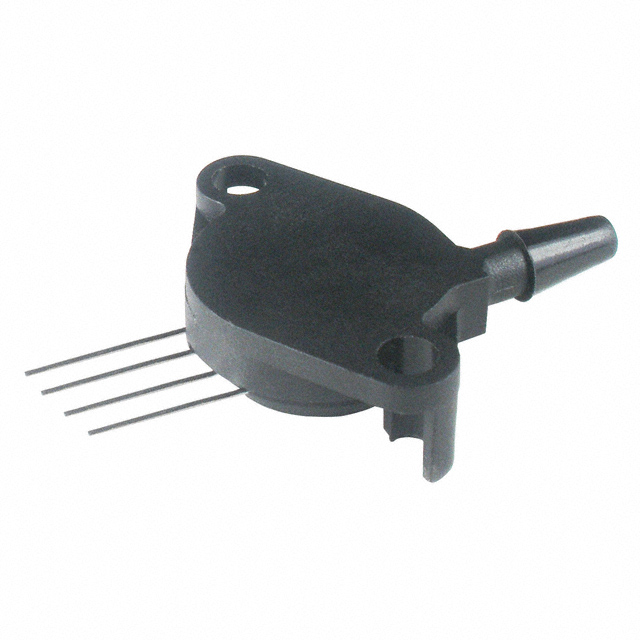

SENSOR 150PSIG 0.19" 4.5V 4SIP

Part	Output Type	Accuracy	Output [Min]	Output [Max]	Features	Voltage - Supply [Min]	Voltage - Supply [Max]	Port Size	Supplier Device Package	Applications	Port Style	Termination Style	Package / Case	Pressure Type	Maximum Pressure [Max]	Maximum Pressure [Max]	Mounting Type	Operating Pressure	Operating Pressure	Operating Temperature [Max]	Operating Temperature [Min]
Honeywell Sensing and Productivity Solutions HSCSHNN150PGAA5	Analog Voltage	0.25 %	0.5 V	4.5 V	Amplified Output Temperature Compensated	4.75 V	5.25 V	4.78 mm 4.826 mm	4-SIP	Board Mount	Barbed	PC Pin	4-SIP Side Port	Vented Gauge	250 PSI	1723.69 kPa	Through Hole	1034.21 kPa	150 PSI	85 °C	-20 C
