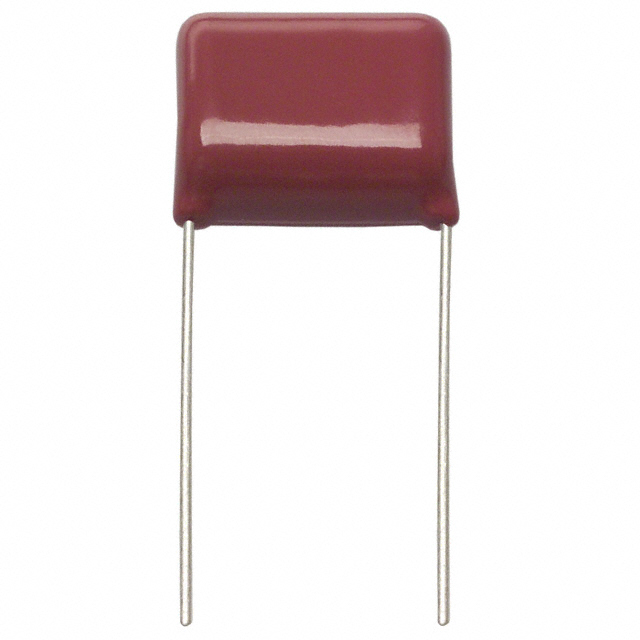

ECW-F4514 Series

Catalog

ECWF(L), MET POLYPROPYLENE FILM CAP RADI ROHS COMPLIANT: YES

Part	Voltage Rating - DC	Tolerance	Termination	Capacitance	Lead Spacing	Lead Spacing	Dielectric Material	Applications	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Lead Spacing	Voltage Rating - AC	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Panasonic Electronic Components ECW-F4514HLB	400 V	3 %	PC Pins	0.51 µF	0.492 in	12.5 mm	Polypropylene (PP) Metallized	High Frequency Switching	20.5 mm	0.807 "	0.406 in	10.3 mm	Radial	-40 C	105 ░C	Through Hole	21.8 mm	0.858 "
Panasonic Electronic Components ECW-F4514HL	400 V	3 %	PC Pins	0.51 µF	17.5 mm		Polypropylene (PP) Metallized	High Frequency Switching	20.5 mm	0.807 "	0.406 in	10.3 mm	Radial	-40 C	105 ░C	Through Hole			0.689 in	141 V	18.3 mm	0.72 in
Panasonic Electronic Components ECW-F4514JLB	400 V	5 %	PC Pins	0.51 µF	0.492 in	12.5 mm	Polypropylene (PP) Metallized	High Frequency Switching	20.5 mm	0.807 "	0.406 in	10.3 mm	Radial	-40 C	105 ░C	Through Hole	21.8 mm	0.858 "
Panasonic Electronic Components ECW-F4514RJL	400 V	5 %	PC Pins	0.51 µF	7.5 mm		Polypropylene (PP) Metallized	High Frequency Switching	20.5 mm	0.807 "	0.406 in	10.3 mm	Radial	-40 C	105 ░C	Through Hole	21.8 mm	0.858 "	0.295 in
Panasonic Electronic Components ECW-F4514RHL	400 V	3 %	PC Pins	0.51 µF	7.5 mm		Polypropylene (PP) Metallized	High Frequency Switching	20.5 mm	0.807 "	0.406 in	10.3 mm	Radial	-40 C	105 ░C	Through Hole	21.8 mm	0.858 "	0.295 in
