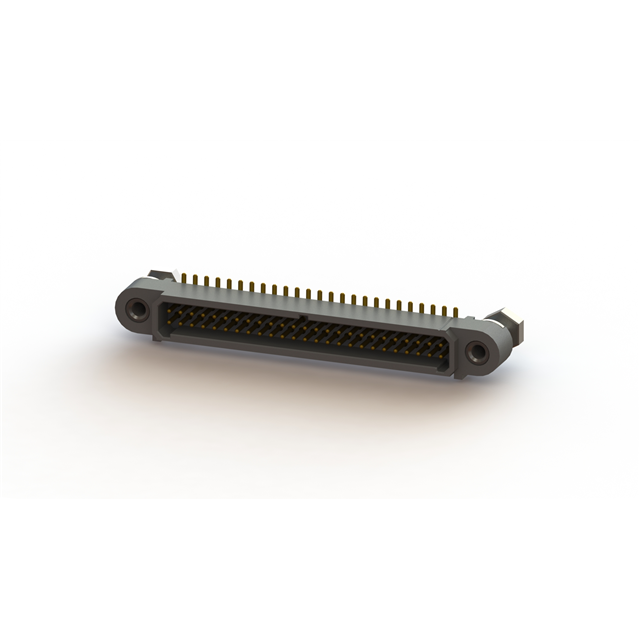

A221T50V Series
Manufacturer: Nicomatic
Beta
⌘K
MALE 50POS STRAIGHT SMT 1.27MM
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Finish Thickness - Mating [custom] | Contact Finish Thickness - Mating [custom] | Number of Rows [custom] | Mounting Type | Connector Type | Insulation Material | Row Spacing - Mating | Row Spacing - Mating | Termination | Insulation Color | Material Flammability Rating | Pitch - Mating | Pitch - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Features | Number of Positions | Contact Finish - Mating | Shrouding | Voltage Rating | Current Rating (Amps) | Insulation Height [z] | Insulation Height [z] | Contact Finish - Post | Contact Shape | Contact Type | Number of Positions Loaded | Contact Material | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nicomatic | 0.15 µm | 5.9 µin | 5.9 µin | 0.15 µm | 2 | Surface Mount | Header | Liquid Crystal Polymer (LCP) | 0.039 in | 1 mm | Solder | Black | UL94 V-0 | 1 mm | 0.039 in | -65 ░C | 200 °C | Mating Flange Mounting Flange Mounting Hardware | 50 | Gold | Shrouded - 4 Wall | 600 VAC | 2.5 A | 4 mm | 0.157 in | Gold | Circular | Male Pin | All | Copper Alloy | Board to Board Cable |
