1892/3C Series
Manufacturer: ALPHA WIRE
Beta
⌘K

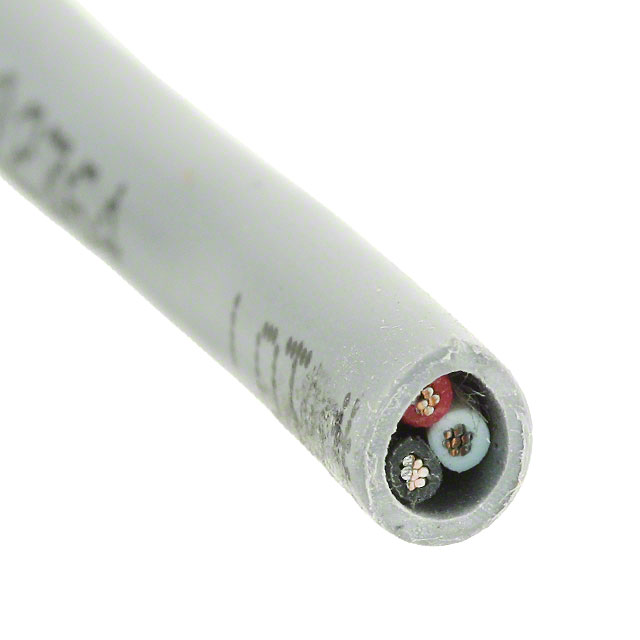

CABLE 3COND 12AWG SLATE
| Part | Wire Gauge | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Insulation | Jacket (Insulation) Material | Voltage | Length | Length | Number of Conductors | Usage | Conductor Strand [custom] | Conductor Strand [custom] | Cable Type | Conductor Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket Color | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 12 AWG | 80 °C | -20 ░C | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | 300 VDC | 304.8 m | 1000 ft | 3 | Communication Control | 30 AWG | 65 | Multi-Conductor | Copper Tinned | 8.46 mm | 0.333 in | Slate | 0.584 mm | 0.023 in | ||
 ALPHA WIRE | 12 AWG | 80 °C | -20 ░C | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | 300 VDC | 3 | Communication Control | 30 AWG | 65 | Multi-Conductor | Copper Tinned | 8.46 mm | 0.333 in | Slate | 0.584 mm | 0.023 in | 100 ft | 30.5 m |
