1540A Series
Manufacturer: Belden Inc.
Beta
⌘K

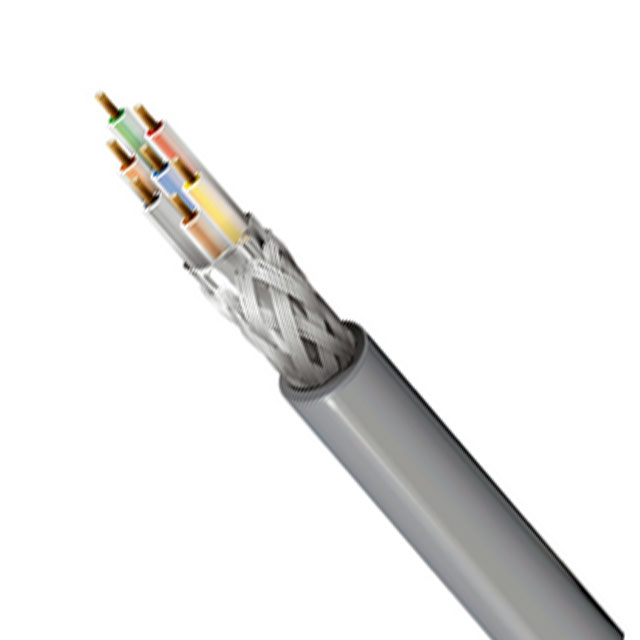

MULTI-PAIR 7COND 28AWG GRAY
| Part | Shield Material | Shield Coverage | Shield Type | Conductor Insulation | Number of Conductors | Voltage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Wire Gauge | Cable Type | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Material | Features | Jacket Color | Length | Length | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Copper Tinned | 65 % 100 % | Braid Foil | Polyethylene (PE) Polypropylene (PP) | 7 | 150 V | 0.19 in | 4.83 mm | 28 AWG | Multi-Pair | 7 | 36 AWG | Copper Bare | Drain Wire | Gray | 304.8 m | 1000 ft | 0.019 " | 0.483 mm | Poly-Vinyl Chloride (PVC) |
