PKB461 Series

Catalog

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 3.3 VDC 20A ISO INPUT 36-75V 66W

Part	Power (Watts)	Efficiency	Voltage - Input (Max) [Max]	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Supplier Device Package	Package / Case	Voltage - Input (Min) [Min]	Control Features	Current - Output (Max) [Max]	Voltage - Isolation	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Standard Number	Voltage - Output 1	Features	Type	Mounting Type	Approval Agency

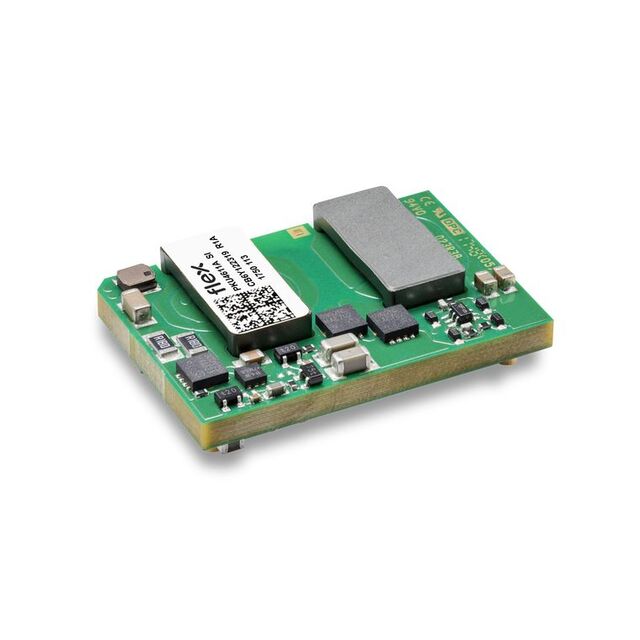

Flex Power Modules PKB4610PINB	66 W	91.6 %	75 V	1	120 °C	-40 °C	ITE (Commercial)	Eighth Brick	Eighth Brick	36 V	Active Low Enable	20 A	2250 VDC	2.3 in	8.1 mm	0.32 "	22.7 mm	58.4 mm	0.89 in	62368-1	3.3 V	Adjustable Output Remote On/Off Remote Sense	Isolated Module	Through Hole	CB CSA IEC TUV UL
Flex Power Modules PKB4619PINB	63 W	90 %	75 V	1	120 °C	-40 °C	ITE (Commercial)	Eighth Brick	Eighth Brick	36 V	Active Low Enable	25 A	2250 VDC	2.3 in	8.1 mm	0.32 "	22.7 mm	58.4 mm	0.89 in	62368-1	2.5 V	Adjustable Output Remote On/Off Remote Sense	Isolated Module	Through Hole	CB CSA IEC TUV UL
Flex Power Modules PKB4610SINB	66 W	91.5 %	75 V	1	120 °C	-40 °C	ITE (Commercial)	Eighth Brick	Eighth Brick	36 V	Active Low Enable	20 A	2250 VDC	2.3 in	8.4 mm	0.33 in	22.7 mm	58.4 mm	0.89 in	62368-1	3.3 V	Adjustable Output Remote On/Off Remote Sense	Isolated Module	Surface Mount	CB CSA IEC TUV UL
