SRC2-1A Series
Manufacturer: Switch Components
Beta
⌘K
SWITCH ROCKER SPST 21A 14V
| Part | Electrical Life | Mechanical Life | Actuator Type | Voltage Rating - DC | Ingress Protection | Illumination Voltage (Nominal) | Color - Actuator/Cap | Circuit | Mounting Type | Termination Style | Switch Function | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Illumination Type, Color | Actuator Marking |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

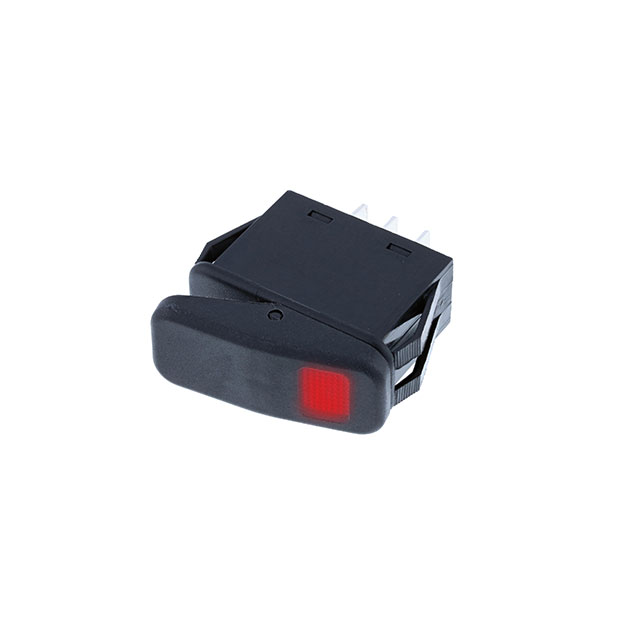

 Switch Components | 6000 Cycles | 10000 Steps | Convex (Reverse V) - Illuminated | 14 V | IP56 - Dust Protected Water Resistant | 14 VDC | Black | SPST | Panel Mount Snap-In | Quick Connect - 0.250" (6.3mm) | On-Off | 15.3 mm | 36.8 mm | 21 A | 85 °C | -20 ░C | LED Red | No Marking |
 Switch Components | 6000 Cycles | 10000 Steps | Convex (Reverse V) - Illuminated | 14 V | IP56 - Dust Protected Water Resistant | 14 VDC | Black | SPST | Panel Mount Snap-In | Quick Connect - 0.250" (6.3mm) | On-Off | 15.3 mm | 36.8 mm | 21 A | 85 °C | -20 ░C | Amber LED | No Marking |

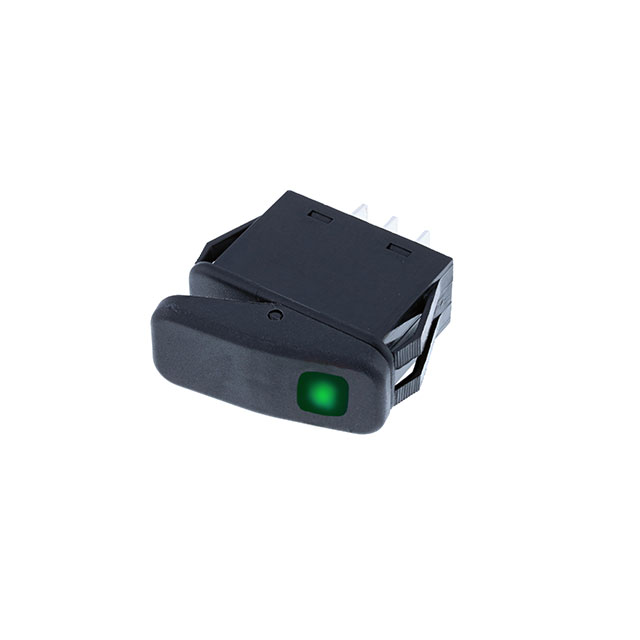

 Switch Components | 6000 Cycles | 10000 Steps | Convex (Reverse V) - Illuminated | 14 V | IP56 - Dust Protected Water Resistant | 14 VDC | Black | SPST | Panel Mount Snap-In | Quick Connect - 0.250" (6.3mm) | On-Off | 15.3 mm | 36.8 mm | 21 A | 85 °C | -20 ░C | Green LED | No Marking |
 Switch Components | 6000 Cycles | 10000 Steps | Convex (Reverse V) - Illuminated | 14 V | IP56 - Dust Protected Water Resistant | 14 VDC | Black | SPST | Panel Mount Snap-In | Quick Connect - 0.250" (6.3mm) | On-Off | 15.3 mm | 36.8 mm | 21 A | 85 °C | -20 ░C | Blue LED | No Marking |
