CMLS136E Series

Catalog

FIXED IND 10UH 11A 18.5MOHM SMD

Part	Inductance Frequency - Test	Tolerance	Inductance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case	Material - Core	Current - Saturation (Isat)	Current Rating (Amps)	Mounting Type	DC Resistance (DCR) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	DC Resistance (DCR)
Delta Electronics/Cyntec CMLS136E-100MS	100 kHz	20 %	10 µH	6.5 mm	0.256 in	Nonstandard	Metal	18 A	11 A	Surface Mount	18.5 mOhm	-55 C	125 °C	Shielded
Delta Electronics/Cyntec CMLS136E-R68MS	100 kHz	20 %	0.68 µH	6.5 mm	0.256 in	Nonstandard	Metal	70 A	33 A	Surface Mount		-55 C	125 °C	Shielded	1.7 mOhm
Delta Electronics/Cyntec CMLS136E-2R2MS	100 kHz	20 %	2.2 µH	6.5 mm	0.256 in	Nonstandard	Metal	42 A	22.5 A	Surface Mount		-55 C	125 °C	Shielded	4.2 mOhm
Delta Electronics/Cyntec CMLS136E-1R5MS	100 kHz	20 %	1.5 µH	6.5 mm	0.256 in	Nonstandard	Metal	48 A	28 A	Surface Mount	2.6 mOhm	-55 C	125 °C	Shielded
Delta Electronics/Cyntec CMLS136E-1R8MS	100 kHz	20 %	1.8 µH	6.5 mm	0.256 in	Nonstandard	Metal	47 A	25 A	Surface Mount	3.1 mOhm	-55 C	125 °C	Shielded
Delta Electronics/Cyntec CMLS136E-1R0MS	100 kHz	20 %	1 µH	6.5 mm	0.256 in	Nonstandard	Metal	50 A	29 A	Surface Mount	2.15 mOhm	-55 C	125 °C	Shielded

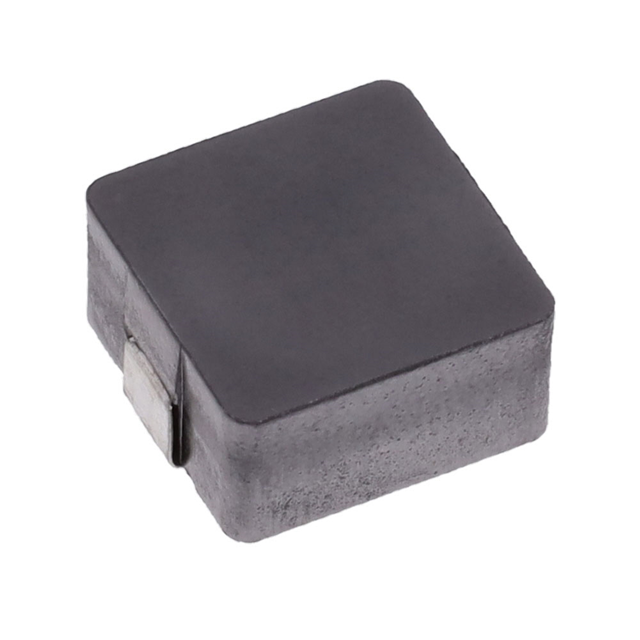

Delta Electronics/Cyntec CMLS136E-3R3MS	100 kHz	20 %	3.3 µH	6.5 mm	0.256 in	Nonstandard	Metal	40 A	22 A	Surface Mount		-55 C	125 °C	Shielded	4.4 mOhm
