ASMT-JA10 Series
Manufacturer: Broadcom Limited
Beta
⌘K

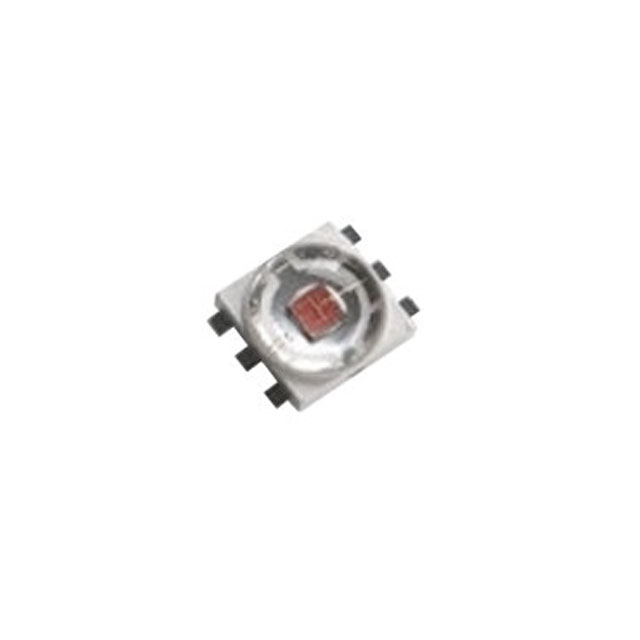

LED AMBER 592NM 1W
| Part | Thermal Resistance of Package | Current - Max [Max] | Mounting Type | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Luminous Flux @ Current/Temperature | Luminous Flux @ Current/Temperature [Min] | Luminous Flux @ Current/Temperature [Max] | Color | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Current - Test | Wavelength | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Viewing Angle | Package / Case | Temperature - Test |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Broadcom Limited | 9 °C/W | 500 mA | Surface Mount | 2.1 V | 73 lm/W | 54 lm | 40 lm | 62 lm | Amber | 0.157 " | 4 mm | 0.157 in | 4 mm | 350 mA | 592 nm | 0.077 in | 1.95 mm | 165 ° | 6-SMD Flat Lead Exposed Pad | 25 °C |
