325-088 Series

Manufacturer: EDAC Inc.

Catalog

CARD EDGE CONNECTOR, DUAL SIDE, 3.18 MM, 88 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Part	Material - Insulation	Termination Rows [custom]	Card Type	Termination	Contact Finish Thickness	Contact Finish Thickness	Gender	Pitch	Pitch	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions/Bay/Row	Number of Rows [custom]	Mounting Type	Contact Material	Contact Type	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Card Thickness	Card Thickness	Read Out	Number of Positions	Contact Finish	Color

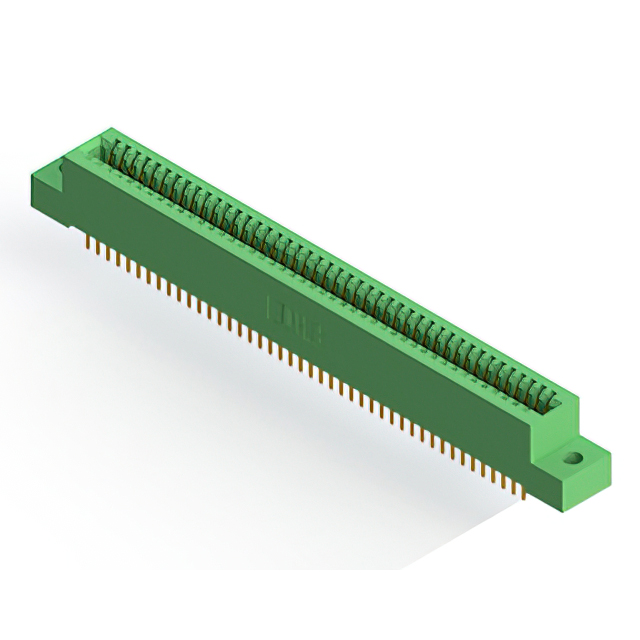

EDAC Inc. 325-088-520-209	Diallyl Phthalate (DAP)	2	Non Specified - Dual Edge	Solder	0.25 Ám	10 Áin	Female	0.1 "	2.54 mm	-65 ░C	125 °C	44	2	Through Hole	Copper Alloy	Cantilever	Flush Mount Top Opening Unthreaded	0.16 "	4.06 mm	3.18 mm	0.125 in	Dual	88	Gold	Green
EDAC Inc. 325-088-520-208	Diallyl Phthalate (DAP)	2	Non Specified - Dual Edge	Solder	0.25 Ám	10 Áin	Female	0.1 "	2.54 mm	-65 ░C	125 °C	44	2	Through Hole	Copper Alloy	Cantilever	4-40 Flush Mount Threaded Insert Top Opening			3.18 mm	0.125 in	Dual	88	Gold	Green

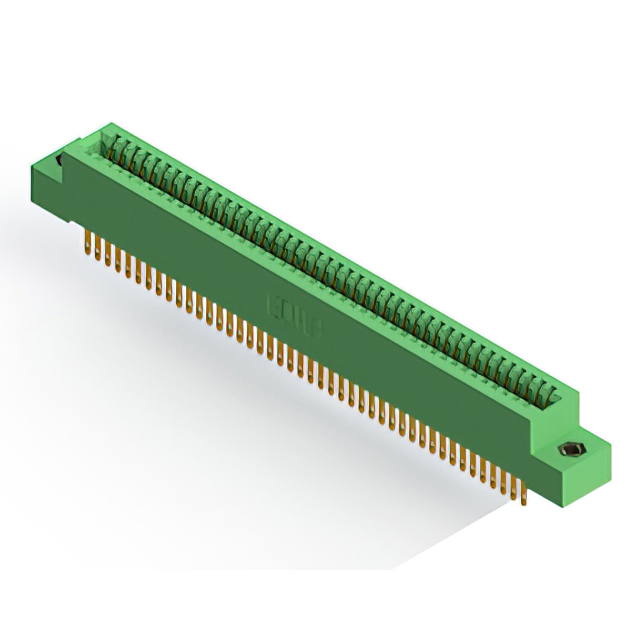

EDAC Inc. 325-088-500-207	Diallyl Phthalate (DAP)	2	Non Specified - Dual Edge	Solder Eyelet(s)	0.25 Ám	10 Áin	Female	0.1 "	2.54 mm	-65 ░C	125 °C	44	2	Through Hole	Copper Alloy	Cantilever	Flush Mount M3 Threaded Insert Top Opening			3.18 mm	0.125 in	Dual	88	Gold	Green
EDAC Inc. 325-088-540-201	Diallyl Phthalate (DAP)	2	Non Specified - Dual Edge	Wire Wrap	0.25 Ám	10 Áin	Female	0.1 "	2.54 mm	-65 ░C	125 °C	44	2	Through Hole	Copper Alloy	Cantilever				3.18 mm	0.125 in	Dual	88	Gold	Green
EDAC Inc. 325-088-500-201	Diallyl Phthalate (DAP)	2	Non Specified - Dual Edge	Solder Eyelet(s)	0.25 Ám	10 Áin	Female	0.1 "	2.54 mm	-65 ░C	125 °C	44	2	Through Hole	Copper Alloy	Cantilever				3.18 mm	0.125 in	Dual	88	Gold	Green
