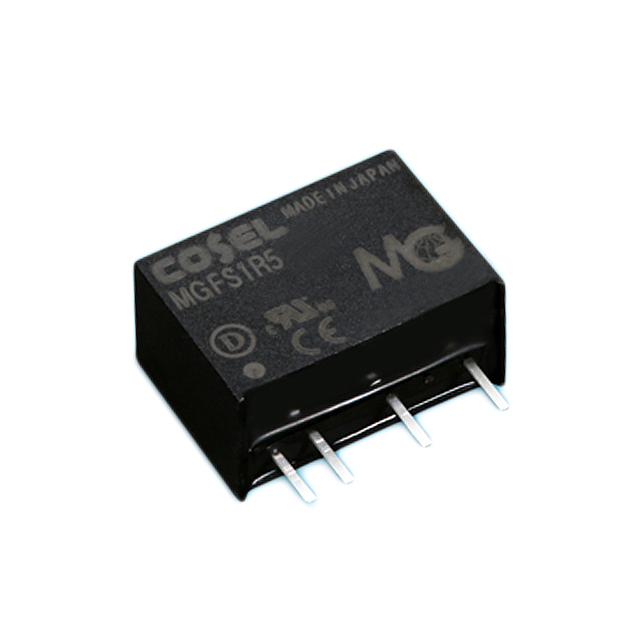

MGS1R5243 Series
Manufacturer: Cosel USA, Inc.
Beta
⌘K
DC DC CONVERTER 3.3V
| Part | Voltage - Input (Max) [Max] | Number of Outputs | Current - Output (Max) [Max] | Mounting Type | Features | Applications | Operating Temperature [Min] | Operating Temperature [Max] | Efficiency | Voltage - Output 1 | Type | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Package / Case | Voltage - Isolation | Voltage - Input (Min) [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cosel USA, Inc. | 36 V | 1 | 400 mA | Through Hole | OCP | ITE (Commercial) | -40 °C | 85 °C | 78 % | 3.3 V | Isolated Module | 0.67 " | 17 mm | 8.5 mm | 12 mm | 0.47 " | 0.33 " | 4-SIP Module | 1.5 kV | 18 V |
