PUSB3FR4 Series

ESD protection for ultra high-speed interfaces

Manufacturer: Freescale Semiconductor - NXP

Catalog

ESD protection for ultra high-speed interfaces

Part	Current - Peak Pulse (10/1000µs)	Applications	Supplier Device Package	Unidirectional Channels [custom]	Capacitance @ Frequency	Voltage - Clamping (Max) @ Ipp	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Package / Case	Type	Voltage - Breakdown (Min) [Min]	Supplier Device Package [y]	Supplier Device Package [x]	Unidirectional Channels	Voltage - Reverse Standoff (Typ)	Package / Case	Bidirectional Channels [custom]	Voltage - Breakdown (Min)	Bidirectional Channels

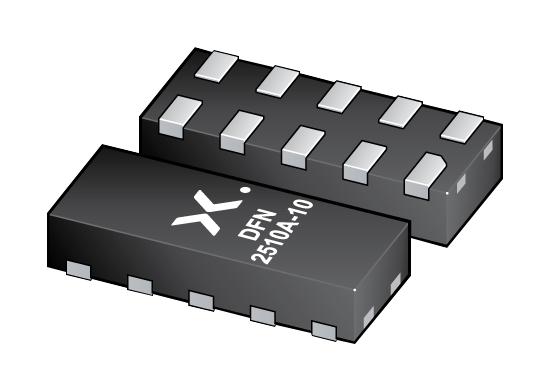

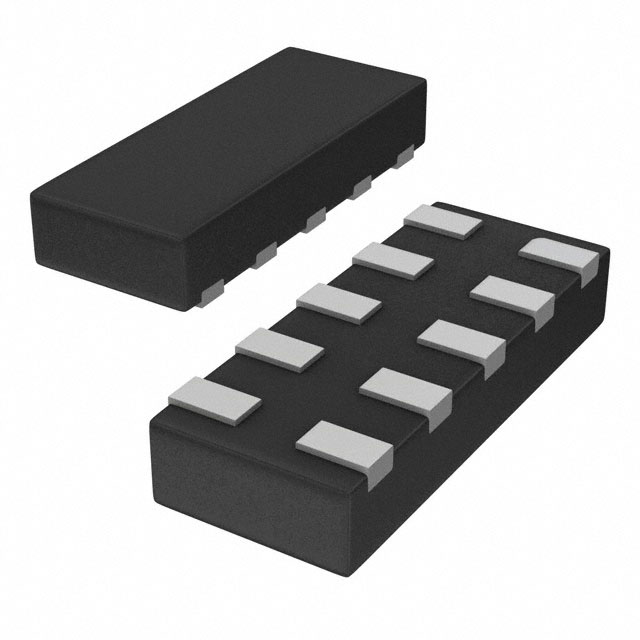

Freescale Semiconductor - NXP PUSB3FA0X	5.2 A	HDMI USB	DFN2510A-10	4	0.5 pF	4.6 V	85 °C	-40 °C	Surface Mount	10-XFDFN	Steering	6 V

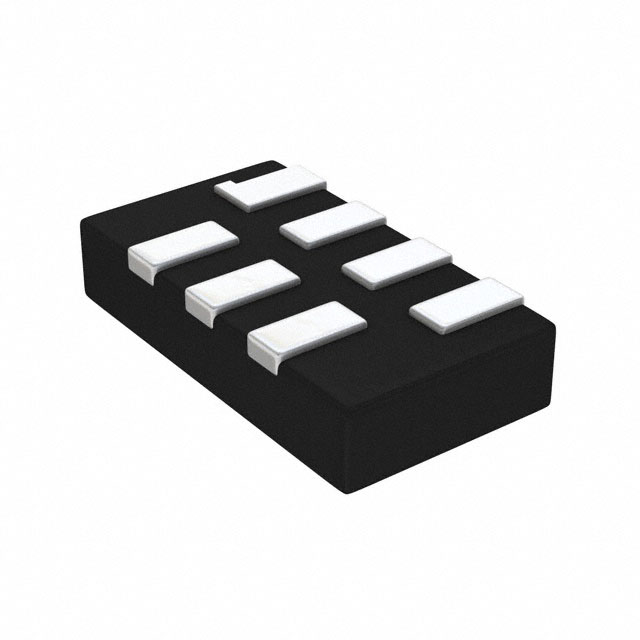

Freescale Semiconductor - NXP PUSB3TB6AZ	3.5 A	General Purpose	7-XSON		0.27 pF	4.8 V	85 °C	-40 °C	Surface Mount	7-XFDFN	Steering	6 V	2.1	1.1	7
Freescale Semiconductor - NXP PUSB3F97,115
Freescale Semiconductor - NXP PUSB3FR4Z	5 A	HDMI	DFN2510A-10	4		3 V	85 °C	-40 °C	Surface Mount	10-XFDFN	Zener	5.5 V				3.3 V

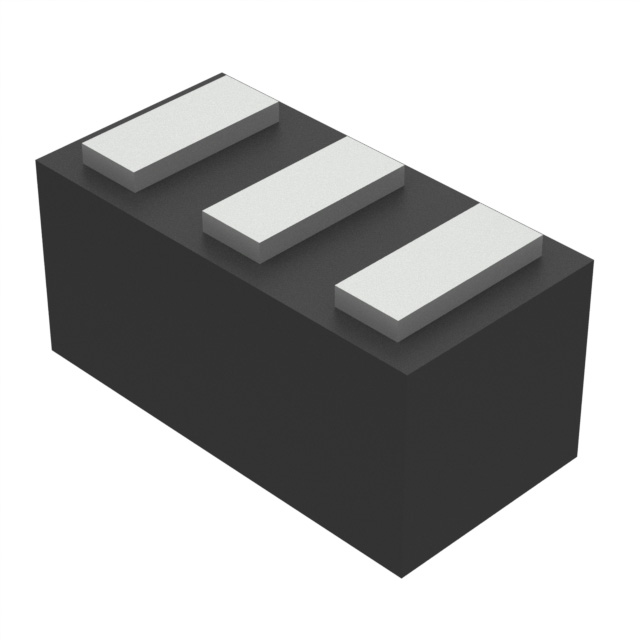

Freescale Semiconductor - NXP PUSB3AB2DFZ	4 A	General Purpose	DFN0603-3 (SOT8013)		0.26 pF	3.7 V	125 °C	-40 °C	Surface Mount	0201	Zener	6.6 V				4 V	0603 Metric	1
Freescale Semiconductor - NXP PUSB3F96X	5.2 A	HDMI	DFN2510A-10	4		4.6 V	85 °C	-40 °C	Surface Mount	10-XFDFN	Steering	6 V				5.5 V
Freescale Semiconductor - NXP PUSB3F97X		General Purpose	DFN2510A-10	4	0.5 pF	4.2 V	85 °C	-40 °C	Surface Mount	10-XFDFN	Zener	6 V
Freescale Semiconductor - NXP PUSB3AB4Z	7 A	General Purpose	DFN2510A-10		0.17 pF	5 V	85 °C	-40 °C	Surface Mount	10-XFDFN	Zener	5.5 V				3.3 V		4
Freescale Semiconductor - NXP PUSB3BB2DFZ	8 A	General Purpose	DFN0603-3 (SOT8013)		0.26 pF	6.2 V	125 °C	-40 °C	Surface Mount	0201	Zener					4 V	0603 Metric	1	7.4 V
Freescale Semiconductor - NXP PUSB3AB6Z	5 A	General Purpose	7-XSON			6 V	85 °C	-40 °C	Surface Mount	7-XFDFN	Zener	6 V	2.1	1.1		3.3 V				6

Catalog

ESD protection for ultra high-speed interfaces

Description

The device is designed to protect high-speed interfaces such as SuperSpeed USB 3.2 at 10 Gbps, High-Definition Multimedia Interface (HDMI), DisplayPort, external Serial Advanced Technology Attachment (eSATA) and Low Voltage Differential Signaling (LVDS) interfaces against ElectroStatic Discharge (ESD).
