A6H Series

Manufacturer: Omron Electronics Inc-EMC Div

Catalog

SWITCH: DIP-SWITCH; POLES NUMBER: 6; ON-OFF; 0.025A/24VDC; POS: 2

Part	Electrical Life	Length	Length	Pitch	Pitch	Pitch	Actuator Type	Circuit	Contact Finish	Height Above Board	Height Above Board [z]	Termination Style	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Features	Actuator Level	Number of Positions	Mounting Type	Voltage Rating	Length [x]	Length [x]	Mechanical Life	Height Above Board [z]
Omron Electronics Inc-EMC Div A6HF-6102-P	1000 Cycles	8.75 mm	0.344 in	0.05 "	1.27 mm	Half	Slide (Standard)	SPST	Gold	2.3 mm	0.091 "	Gull Wing	25 mA	85 °C	-30 ░C	Tape Seal	Flush Recessed	6	Surface Mount	24 VDC
Omron Electronics Inc-EMC Div A6HF-4102-PM	1000 Cycles			0.05 "	1.27 mm	Half	Slide (Standard)	SPST	Gold	2.3 mm	0.091 "	Gull Wing	25 mA	85 °C	-30 ░C	Tape Seal	Flush Recessed	4	Surface Mount	24 VDC	0.244 in	6.2 mm

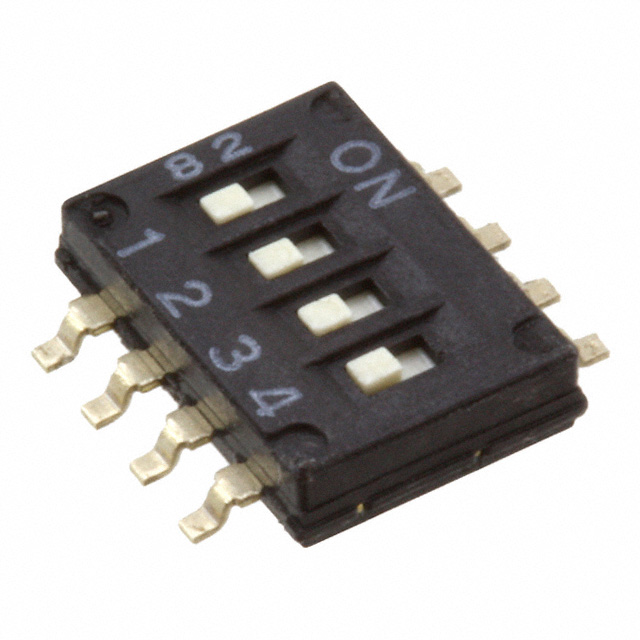

Omron Electronics Inc-EMC Div A6H-4102-P	1000 Cycles			0.05 "	1.27 mm	Half	Slide (Standard)	SPST			0.061 "	Gull Wing	25 mA	70 °C	-20 ░C	Tape Seal	Flush Recessed	4	Surface Mount	24 VDC	0.248 in	6.31 mm	1000 Cycles	1.55 mm

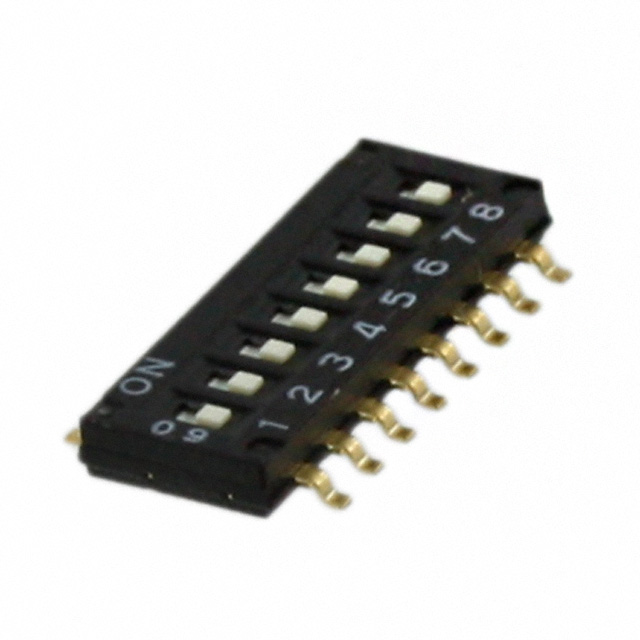

Omron Electronics Inc-EMC Div A6H-8102(VNM)	1000 Cycles	11.39 mm		0.05 "	1.27 mm	Half	Slide (Standard)	SPST			0.061 "	Gull Wing	25 mA	70 °C	-20 ░C	Tape Seal	Flush Recessed	8	Surface Mount	24 VDC	0.448 in		1000 Cycles	1.55 mm

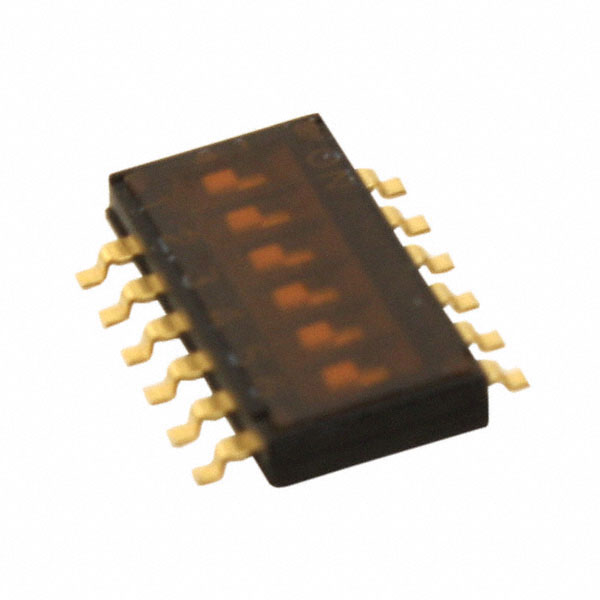

Omron Electronics Inc-EMC Div A6H-6102(VNM)	1000 Cycles			0.05 "	1.27 mm	Half	Slide (Standard)	SPST			0.061 "	Gull Wing	25 mA	70 °C	-20 ░C	Tape Seal	Flush Recessed	6	Surface Mount	24 VDC	0.348 in	8.85 mm	1000 Cycles	1.55 mm

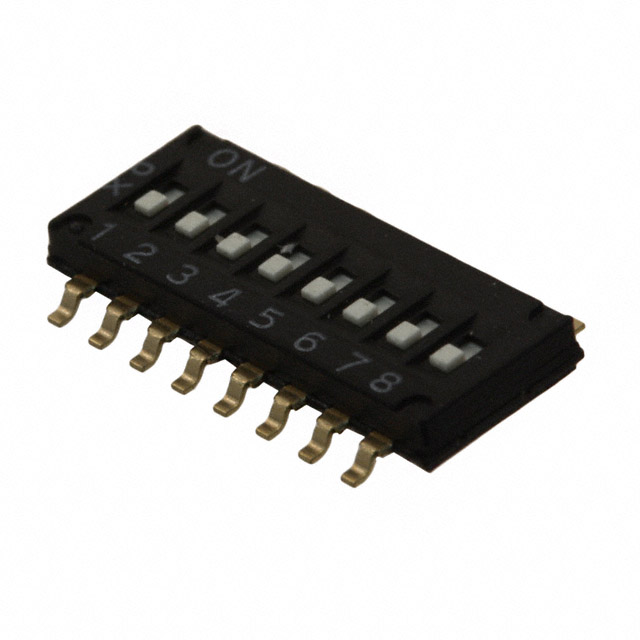

Omron Electronics Inc-EMC Div A6H-8101-PM(VNM)	1000 Cycles	11.39 mm		0.05 "	1.27 mm	Half	Slide (Standard)	SPST			0.061 "	Gull Wing	25 mA	70 °C	-20 ░C		Flush Recessed	8	Surface Mount	24 VDC	0.448 in		1000 Cycles	1.55 mm

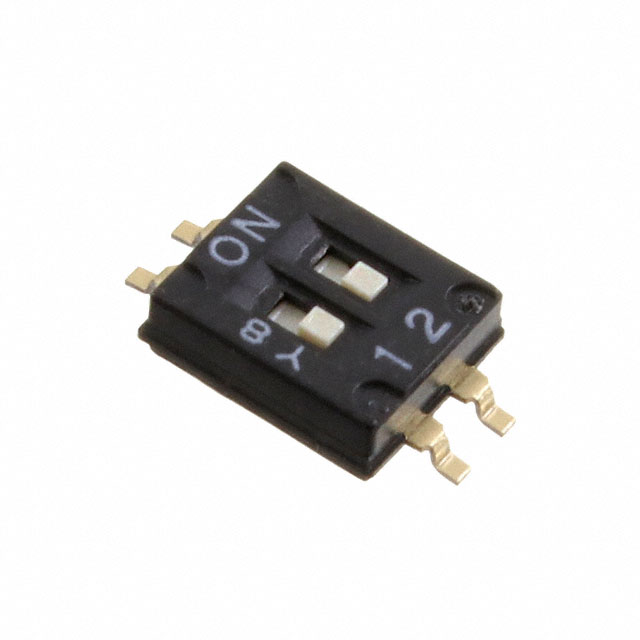

Omron Electronics Inc-EMC Div A6H-2101(VNM)	1000 Cycles	3.77 mm	0.148 in	0.05 "	1.27 mm	Half	Slide (Standard)	SPST			0.061 "	Gull Wing	25 mA	70 °C	-20 ░C		Flush Recessed	2	Surface Mount	24 VDC			1000 Cycles	1.55 mm

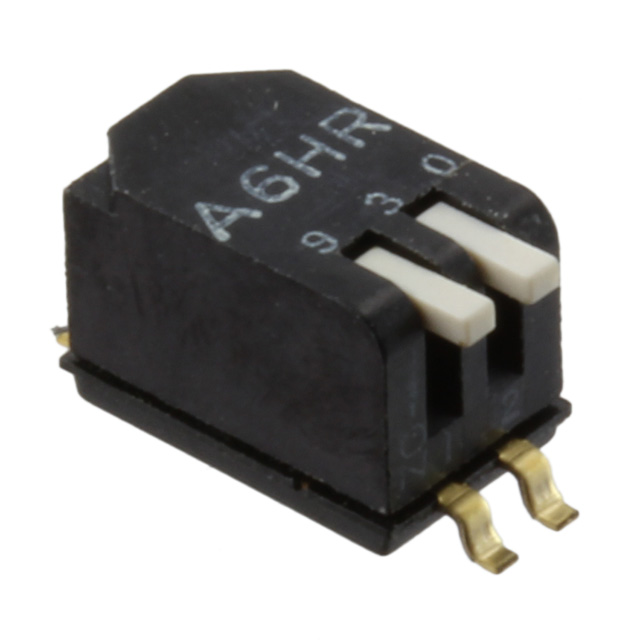

Omron Electronics Inc-EMC Div A6HR-2104-R100	1000 Cycles			0.05 "	1.27 mm	Half	Piano	SPST	Gold		0.165 in	Gull Wing	25 mA	85 °C	-30 ░C		Raised	2	Right Angle Surface Mount	24 VDC	0.144 in	3.67 mm		4.2 mm

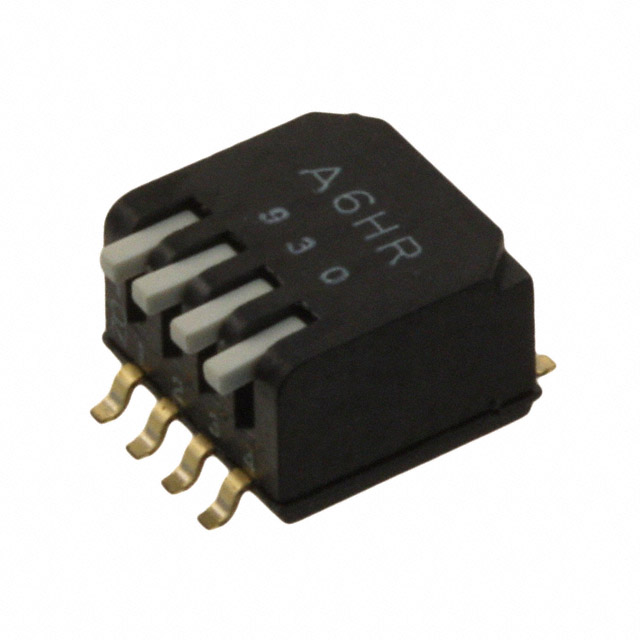

Omron Electronics Inc-EMC Div A6HR-4104	1000 Cycles			0.05 "	1.27 mm	Half	Piano	SPST	Gold		0.165 in	Gull Wing	25 mA	85 °C	-30 ░C		Raised	4	Right Angle Surface Mount	24 VDC	0.244 in	6.2 mm		4.2 mm
Omron Electronics Inc-EMC Div A6H-2102-R100(VNM)	1000 Cycles	3.77 mm	0.148 in	0.05 "	1.27 mm	Half	Slide (Standard)	SPST			0.061 "	Gull Wing	25 mA	70 °C	-20 ░C	Tape Seal	Flush Recessed	2	Surface Mount	24 VDC			1000 Cycles	1.55 mm
