745-020 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 20POS 0.100

Part	Material - Insulation	Termination Rows [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Pitch	Pitch	Card Thickness [Max]	Card Thickness [Min]	Contact Finish Thickness	Contact Finish Thickness	Gender	Color	Number of Positions	Read Out	Card Type	Contact Finish	Contact Material	Termination	Number of Rows [custom]	Number of Positions/Bay/Row	Contact Type	Mounting Type	Termination Rows	Number of Rows

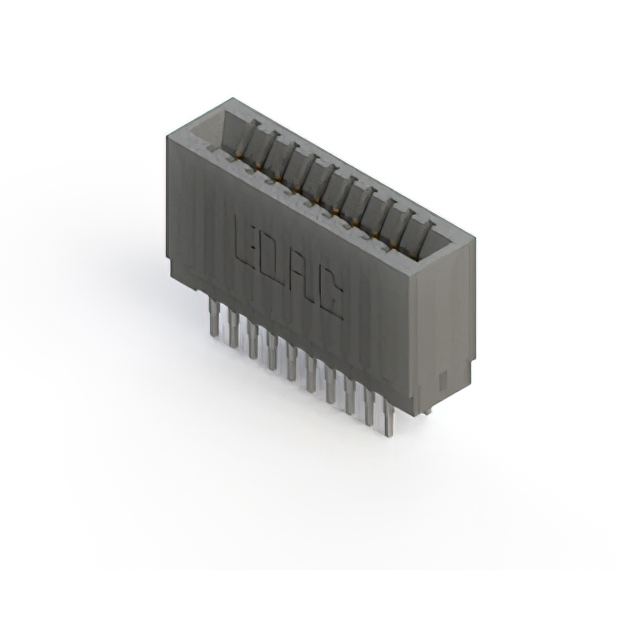

EDAC Inc. 745-020-545-201	Polyester Thermoplastic	2	-40 C	105 ░C	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	30 Áin	0.76 Ám	Female	Black	20	Dual	Non Specified - Dual Edge	Gold	Copper Alloy	Press-Fit	2	10	Cantilever	Through Hole

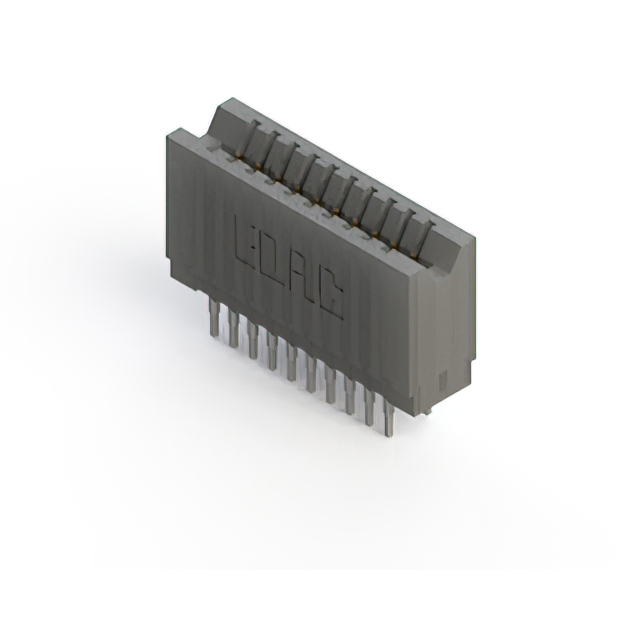

EDAC Inc. 745-020-545-206	Polyester Thermoplastic	2	-40 C	105 ░C	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	30 Áin	0.76 Ám	Female	Black	20	Dual	Non Specified - Dual Edge	Gold	Copper Alloy	Press-Fit	2	10	Cantilever	Through Hole

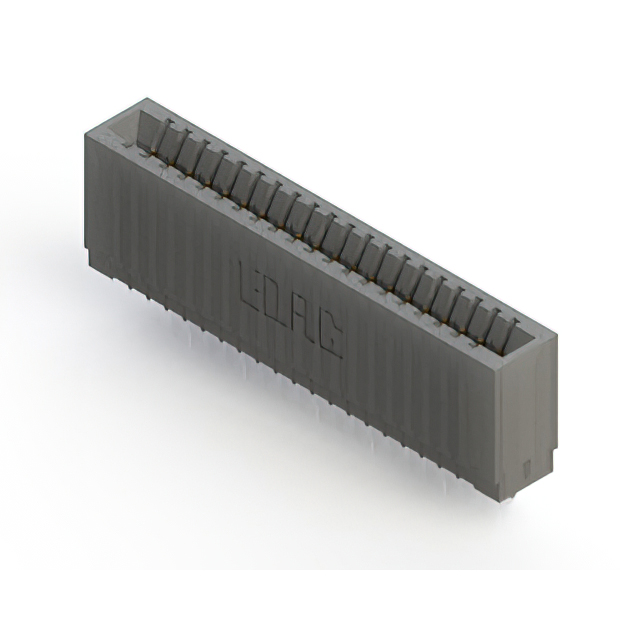

EDAC Inc. 745-020-525-101	Polyester Thermoplastic		-40 C	105 ░C	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	30 Áin	0.76 Ám	Female	Black	20	Single	Non Specified - Single Edge	Gold	Copper Alloy	Press-Fit		20 Bay/Row	Cantilever	Through Hole	1	1

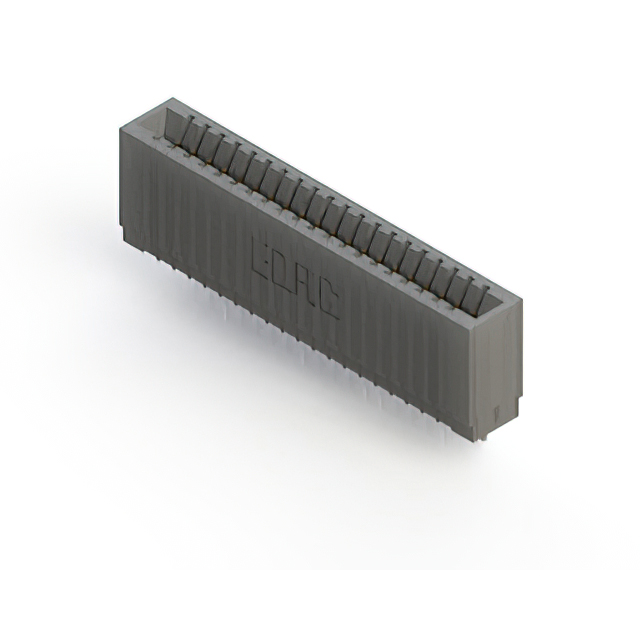

EDAC Inc. 745-020-545-101	Polyester Thermoplastic		-40 C	105 ░C	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	30 Áin	0.76 Ám	Female	Black	20	Single	Non Specified - Single Edge	Gold	Copper Alloy	Press-Fit		20 Bay/Row	Cantilever	Through Hole	1	1

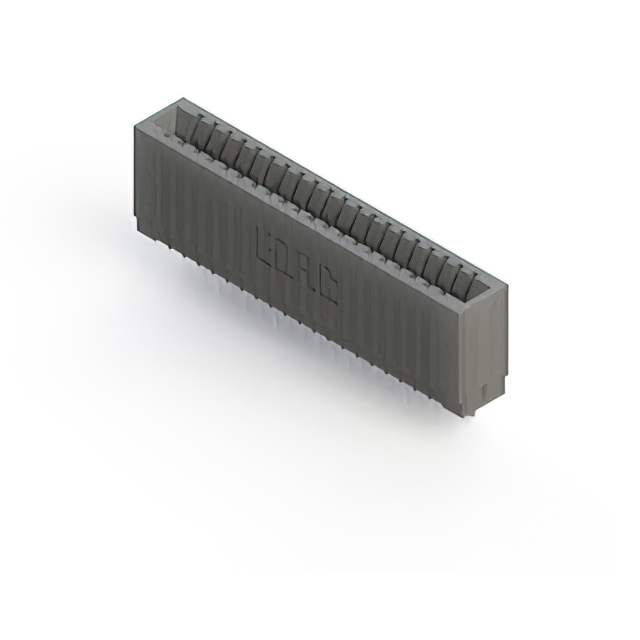

EDAC Inc. 745-020-541-101	Polyester Thermoplastic		-40 C	105 ░C	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	30 Áin	0.76 Ám	Female	Black	20	Single	Non Specified - Single Edge	Gold	Copper Alloy	Press-Fit Wire Wrap		20 Bay/Row	Cantilever	Through Hole	1	1

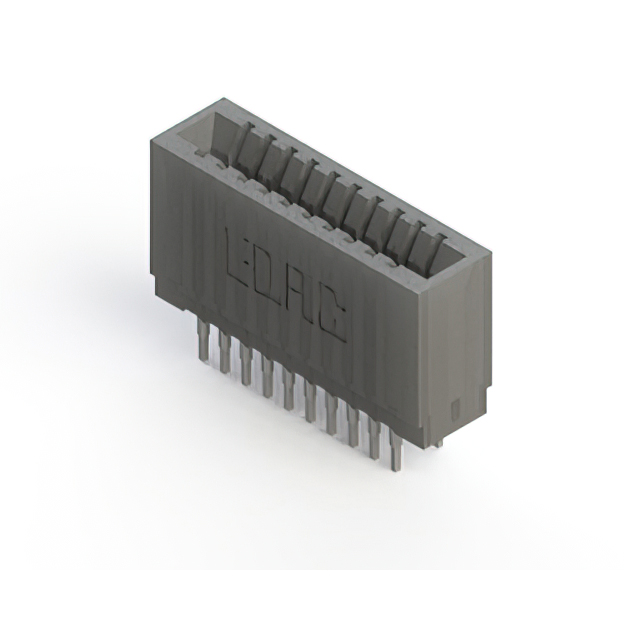

EDAC Inc. 745-020-522-201	Polyester Thermoplastic	2	-40 C	105 ░C	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	30 Áin	0.76 Ám	Female	Black	20	Dual	Non Specified - Dual Edge	Gold	Copper Alloy	Press-Fit	2	10	Cantilever	Through Hole
EDAC Inc. 745-020-541-106	Polyester Thermoplastic		-40 C	105 ░C	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	30 Áin	0.76 Ám	Female	Black	20	Single	Non Specified - Single Edge	Gold	Copper Alloy	Press-Fit Wire Wrap		20 Bay/Row	Cantilever	Through Hole	1	1

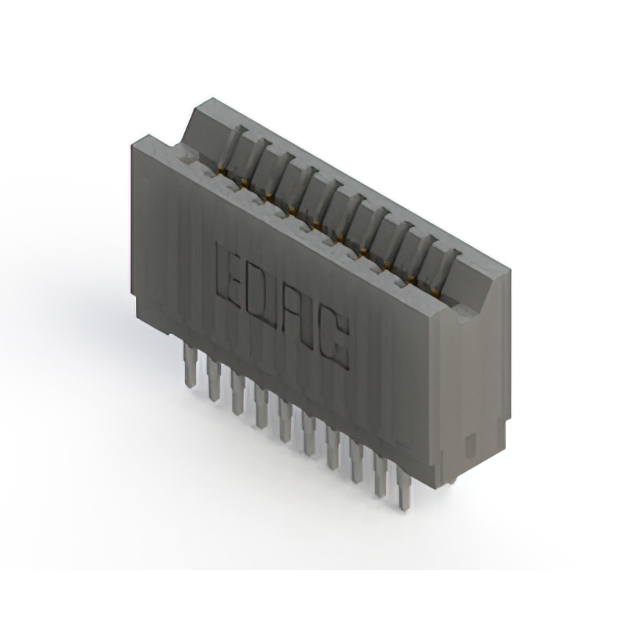

EDAC Inc. 745-020-525-206	Polyester Thermoplastic	2	-40 C	105 ░C	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	30 Áin	0.76 Ám	Female	Black	20	Dual	Non Specified - Dual Edge	Gold	Copper Alloy	Press-Fit	2	10	Cantilever	Through Hole
EDAC Inc. 745-020-540-101	Polyester Thermoplastic		-40 C	105 ░C	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	30 Áin	0.76 Ám	Female	Black	20	Single	Non Specified - Single Edge	Gold	Copper Alloy	Press-Fit Wire Wrap		20 Bay/Row	Cantilever	Through Hole	1	1

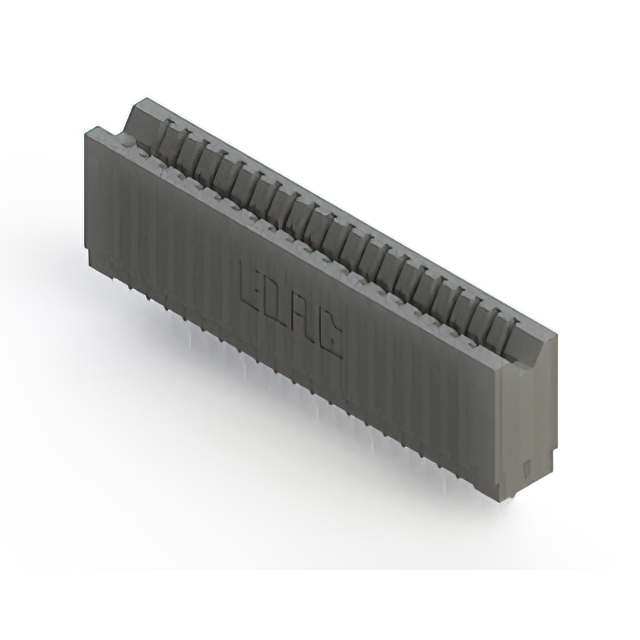

EDAC Inc. 745-020-520-106	Polyester Thermoplastic		-40 C	105 ░C	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	30 Áin	0.76 Ám	Female	Black	20	Single	Non Specified - Single Edge	Gold	Copper Alloy	Press-Fit		20 Bay/Row	Cantilever	Through Hole	1	1
