CDFR9W4 Series
Manufacturer: NorComp Inc.
Beta
⌘K

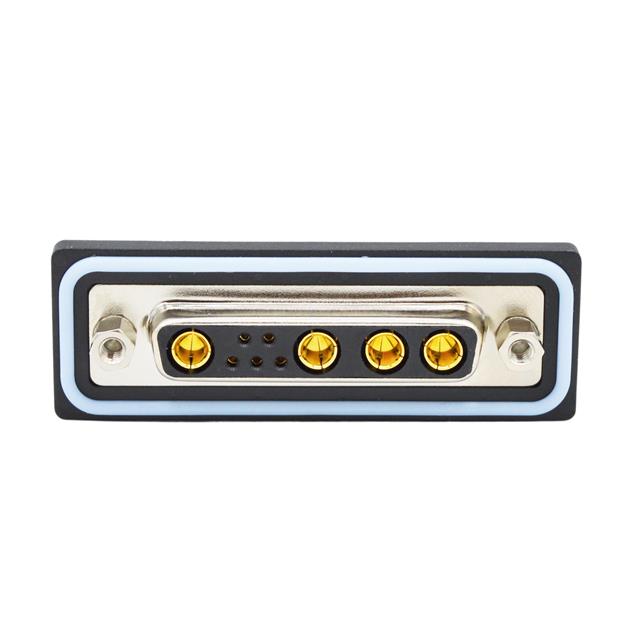

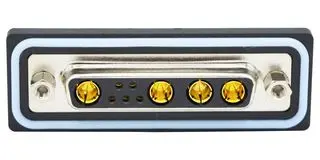

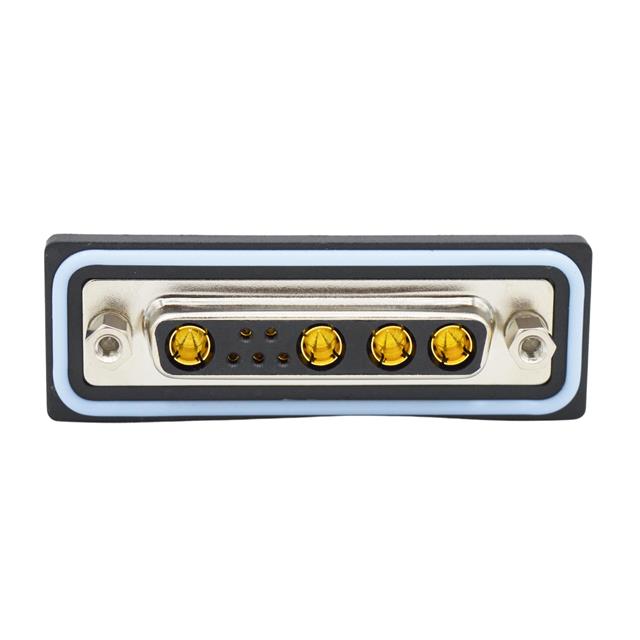

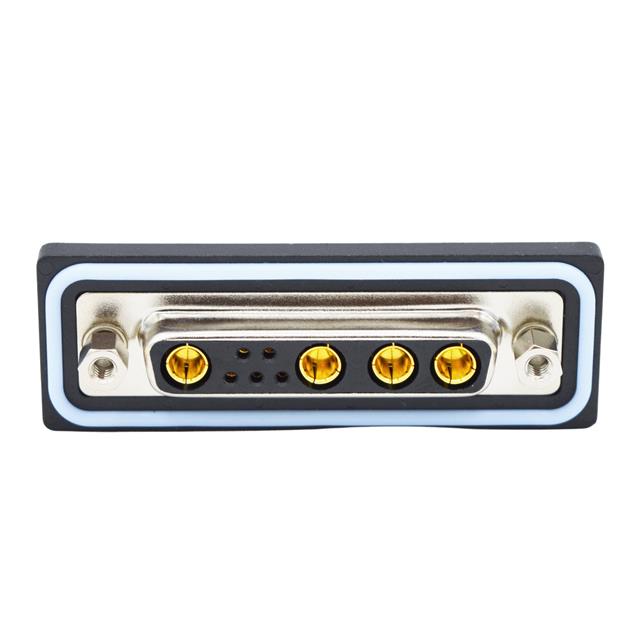

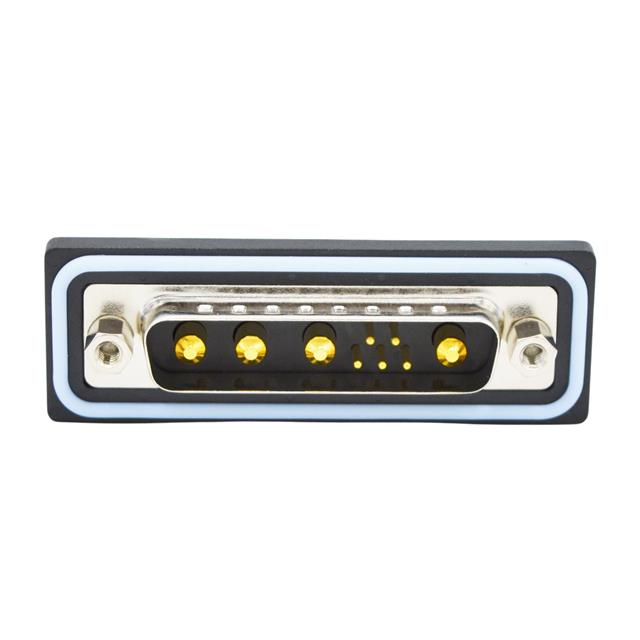

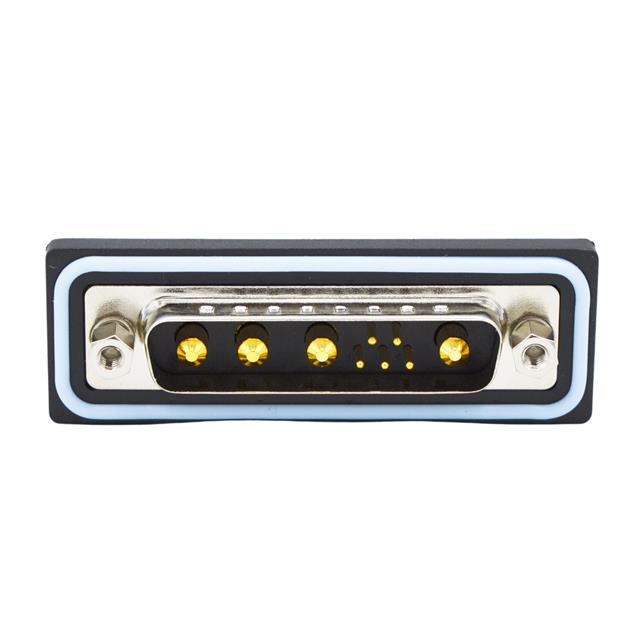

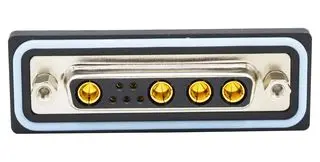

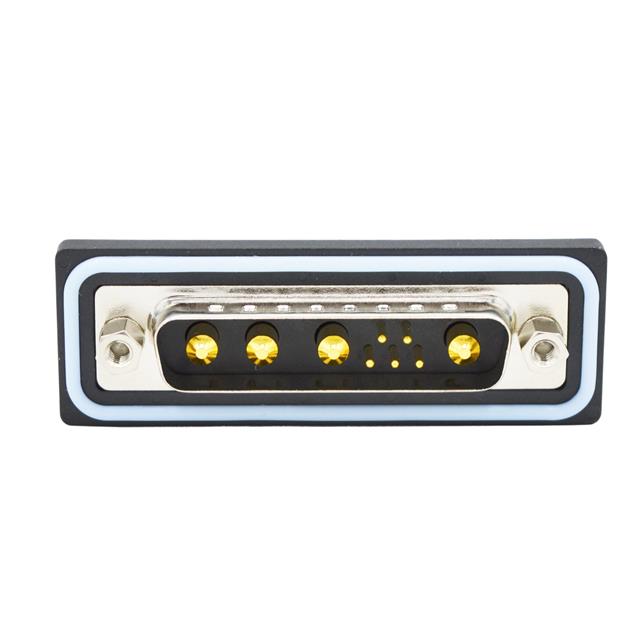

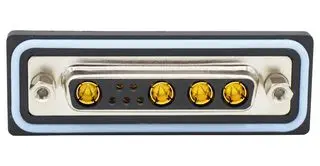

COMBINATION LAYOUT D SUB CONNECTOR, IP67, NANOOK SERIES, DB-9W4, RECEPTACLE, 9 CONTACTS
| Part | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Dielectric Material | Ingress Protection | Shell Material, Finish | Number of Rows [custom] | Contact Type | Features | Contact Finish | Number of Positions [custom] | Number of Positions [custom] | Contact Finish Thickness | Contact Finish Thickness | Termination | Flange Feature | Connector Style | Material Flammability Rating | Mounting Type | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [x] | Connector Type | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | Brass | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) | IP67 - Dust Tight Waterproof | Nickel Plated Steel | 2 | Signal and Power | Board Lock Mounting Brackets | Gold | 4 | 5 | 30 Áin | 0.76 Ám | Solder | 4-40 Mating Side Female Screwlock | Combo D-Sub | UL94 V-0 | Panel Mount Right Angle Through Hole | DB B - 9W4 | 3 | Receptacle Female Sockets | |
 NorComp Inc. | Brass | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) | IP67 - Dust Tight Waterproof | Nickel Plated Steel | 2 | Signal and Power | Gold | 4 | 5 | Solder | 4-40 Mating Side Female Screwlock | Combo D-Sub | UL94 V-0 | Panel Mount Right Angle Through Hole | DB B - 9W4 | 3 | Receptacle Female Sockets | Flash | |||
 NorComp Inc. | Brass | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) | IP67 - Dust Tight Waterproof | Nickel Plated Steel | 2 | Signal and Power | Board Lock Mounting Brackets | Gold | 4 | 5 | Solder | 4-40 Mating Side Female Screwlock | Combo D-Sub | UL94 V-0 | Panel Mount Right Angle Through Hole | DB B - 9W4 | 3 | Receptacle Female Sockets | Flash | ||
 NorComp Inc. | Brass | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) | IP67 - Dust Tight Waterproof | Nickel Plated Steel | 2 | Signal and Power | Gold | 4 | 5 | Solder | 4-40 Mating Side Female Screwlock | Combo D-Sub | UL94 V-0 | Panel Mount Right Angle Through Hole | DB B - 9W4 | 3 | Receptacle Female Sockets | Flash | |||
 NorComp Inc. | Brass | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) | IP67 - Dust Tight Waterproof | Nickel Plated Steel | 2 | Signal and Power | Board Lock Grounding Indents Mounting Brackets | Gold | 4 | 5 | Solder | 4-40 Mating Side Female Screwlock | Combo D-Sub | UL94 V-0 | Panel Mount Right Angle Through Hole | DB B - 9W4 | 3 | Plug Male Pins | Flash | ||
 NorComp Inc. | Brass | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) | IP67 - Dust Tight Waterproof | Nickel Plated Steel | 2 | Signal and Power | Grounding Indents | Gold | 4 | 5 | 30 Áin | 0.76 Ám | Solder | 4-40 Mating Side Female Screwlock | Combo D-Sub | UL94 V-0 | Panel Mount Right Angle Through Hole | DB B - 9W4 | 3 | Plug Male Pins | |
NorComp Inc. | Brass | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) | IP67 - Dust Tight Waterproof | Nickel Plated Steel | 2 | Signal and Power | Grounding Indents | Gold | 4 | 5 | Solder | 4-40 Mating Side Female Screwlock | Combo D-Sub | UL94 V-0 | Panel Mount Right Angle Through Hole | DB B - 9W4 | 3 | Plug Male Pins | Flash | ||
 NorComp Inc. | Brass | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) | IP67 - Dust Tight Waterproof | Nickel Plated Steel | 2 | Signal and Power | Board Lock Mounting Brackets | Gold | 4 | 5 | 30 Áin | 0.76 Ám | Solder | 4-40 Mating Side Female Screwlock | Combo D-Sub | UL94 V-0 | Panel Mount Right Angle Through Hole | DB B - 9W4 | 3 | Receptacle Female Sockets | |
 NorComp Inc. | Brass | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) | IP67 - Dust Tight Waterproof | Nickel Plated Steel | 2 | Signal and Power | Gold | 4 | 5 | 30 Áin | 0.76 Ám | Solder | 4-40 Mating Side Female Screwlock | Combo D-Sub | UL94 V-0 | Panel Mount Right Angle Through Hole | DB B - 9W4 | 3 | Receptacle Female Sockets | ||
NorComp Inc. | Brass | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) | IP67 - Dust Tight Waterproof | Nickel Plated Steel | 2 | Signal and Power | Gold | 4 | 5 | 30 Áin | 0.76 Ám | Solder | 4-40 Mating Side Female Screwlock | Combo D-Sub | UL94 V-0 | Panel Mount Right Angle Through Hole | DB B - 9W4 | 3 | Receptacle Female Sockets |
