C14610F010 Series
Manufacturer: Amphenol Tuchel Industrial
Beta
⌘K
CONN BASE BOTTOM ENTRY SZE10
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Size | Lock Location | Style | Ingress Protection | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Connector Type | Housing Material | Thread Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

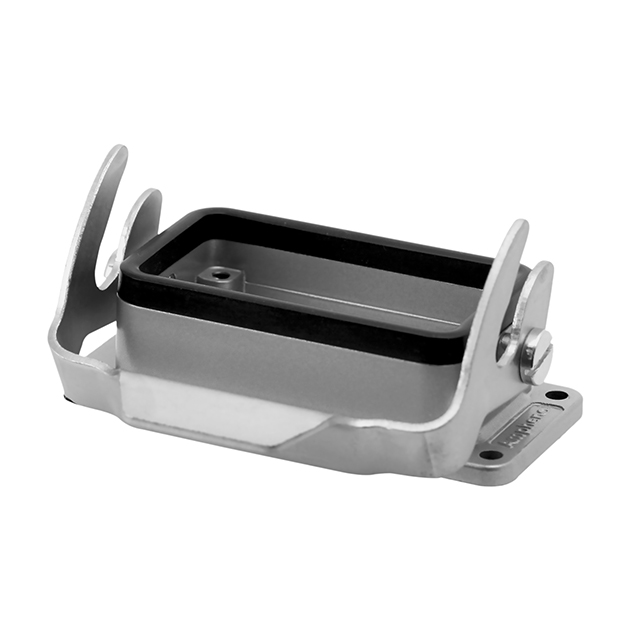

 Amphenol Tuchel Industrial | -40 C | 100 °C | E10 | Locking Clip (2) on Base Bottom | Bottom Entry | IP65 - Dust Tight Water Resistant | 3.661 " | 28.5 mm | 1.693 " | 93 mm | 43 mm | 1.122 " | Base - Panel Mount | Aluminum Alloy Die Cast | |

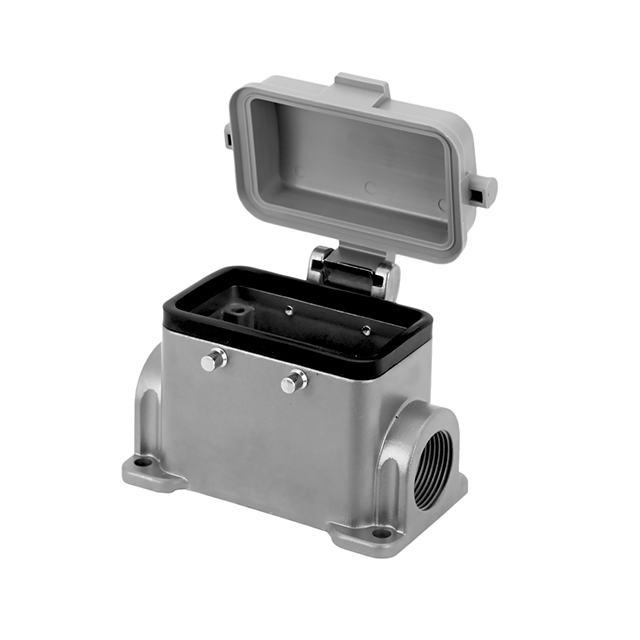

 Amphenol Tuchel Industrial | -40 C | 100 °C | E10 | Locking Clip (2) on Hood | Side Entry | IP65 - Dust Tight Water Resistant | 3.701 in | 57 mm | 2.126 in | 94 mm | 54 mm | 2.244 " | Base - Box Mount | Aluminum Alloy Die Cast | PG16 |
 Amphenol Tuchel Industrial | -40 C | 100 °C | E10 | Locking Clip (1) on Base Bottom | Bottom Entry | IP65 - Dust Tight Water Resistant | 3.661 " | 28.5 mm | 1.693 " | 93 mm | 43 mm | 1.122 " | Base - Panel Mount | Aluminum Alloy Die Cast | |

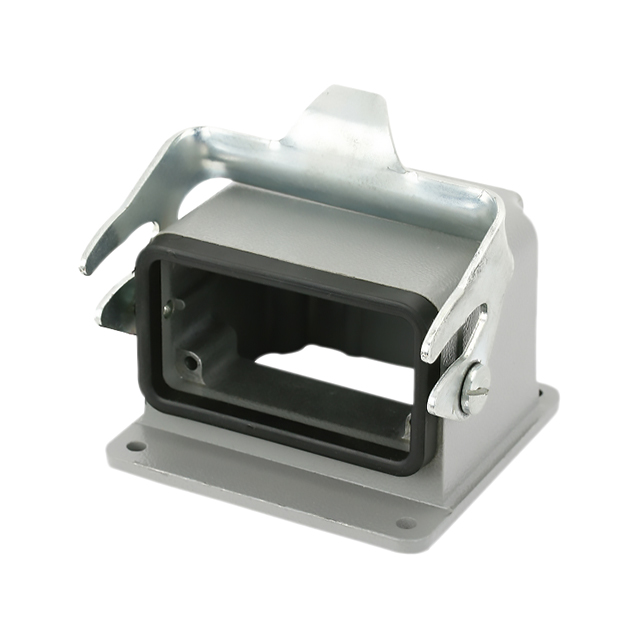

 Amphenol Tuchel Industrial | -40 C | 100 °C | E10 | Locking Clip (1) on Base Bottom | Side Entry | IP65 - Dust Tight Water Resistant | Base - Panel Mount 90° | Aluminum Alloy Die Cast |
