10027011 Series

Catalog

CONN HEADER SMD

Part	Mounting Type	Contact Finish - Post	Number of Rows	Current Rating (Amps)	Insulation Color	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Contact Length - Mating	Contact Length - Mating	Shrouding	Connector Type	Pitch - Mating	Pitch - Mating	Termination	Number of Positions Loaded	Number of Positions	Contact Shape	Contact Type	Insulation Height	Insulation Height	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating

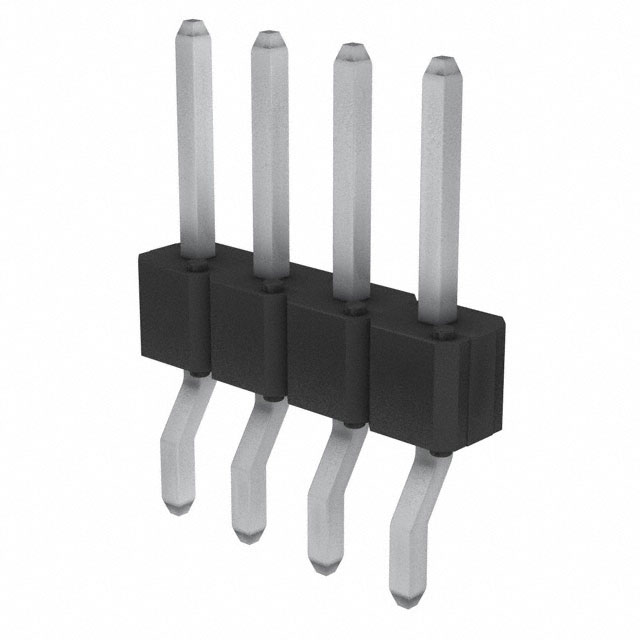

Amphenol ICC (FCI) 10027011-404HWLF	Right Angle Surface Mount	Tin	1	3 A	Black	Push-Pull	100 çin	2.54 çm	UL94 V-0	0.23 in	5.84 mm	Unshrouded	Header Breakaway	0.1 "	2.54 mm	Solder	All	4	Square	Male Pin	2.41 mm	0.095 in	Phosphor Bronze	-65 ░C	125 °C
Amphenol ICC (FCI) 10027011-108HLF	Right Angle Surface Mount	Tin	1	3 A	Black	Push-Pull	30 Áin	0.76 Ám	UL94 V-0	0.23 in	5.84 mm	Unshrouded	Header Breakaway	0.1 "	2.54 mm	Solder	All	8	Square	Male Pin	2.41 mm	0.095 in	Phosphor Bronze	-65 ░C	125 °C	Gold GXT™
Amphenol ICC (FCI) 10027011-416H	Right Angle Surface Mount		1	3 A	Black	Push-Pull	100 çin	2.54 çm	UL94 V-0	0.23 in	5.84 mm	Unshrouded	Header Breakaway	0.1 "	2.54 mm	Solder	All	16	Square	Male Pin	2.41 mm	0.095 in	Phosphor Bronze	-65 ░C	125 °C
Amphenol ICC (FCI) 10027011-405H	Right Angle Surface Mount		1	3 A	Black	Push-Pull	100 çin	2.54 çm	UL94 V-0	0.23 in	5.84 mm	Unshrouded	Header Breakaway	0.1 "	2.54 mm	Solder	All	5	Square	Male Pin	2.41 mm	0.095 in	Phosphor Bronze	-65 ░C	125 °C
Amphenol ICC (FCI) 10027011-405HLF	Right Angle Surface Mount	Tin	1	3 A	Black	Push-Pull	100 çin	2.54 çm	UL94 V-0	0.23 in	5.84 mm	Unshrouded	Header Breakaway	0.1 "	2.54 mm	Solder	All	5	Square	Male Pin	2.41 mm	0.095 in	Phosphor Bronze	-65 ░C	125 °C

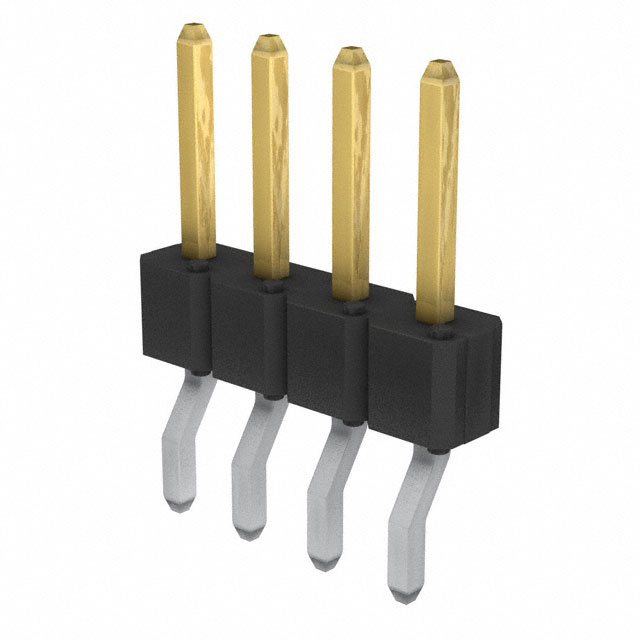

Amphenol ICC (FCI) 10027011-204HWLF	Right Angle Surface Mount	Tin	1	3 A	Black	Push-Pull	15 µin	0.38 µm	UL94 V-0	0.23 in	5.84 mm	Unshrouded	Header Breakaway	0.1 "	2.54 mm	Solder	All	4	Square	Male Pin	2.41 mm	0.095 in	Phosphor Bronze	-65 ░C	125 °C	Gold GXT™
Amphenol ICC (FCI) 10027011-404HLF	Right Angle Surface Mount	Tin	1	3 A	Black	Push-Pull	100 çin	2.54 çm	UL94 V-0	0.23 in	5.84 mm	Unshrouded	Header Breakaway	0.1 "	2.54 mm	Solder	All	4	Square	Male Pin	2.41 mm	0.095 in	Phosphor Bronze	-65 ░C	125 °C
Amphenol ICC (FCI) 10027011-204HTLF	Right Angle Surface Mount	Tin	1	3 A	Black	Push-Pull	15 µin	0.38 µm	UL94 V-0	0.23 in	5.84 mm	Unshrouded	Header Breakaway	0.1 "	2.54 mm	Solder	All	4	Square	Male Pin	2.41 mm	0.095 in	Phosphor Bronze	-65 ░C	125 °C	Gold GXT™

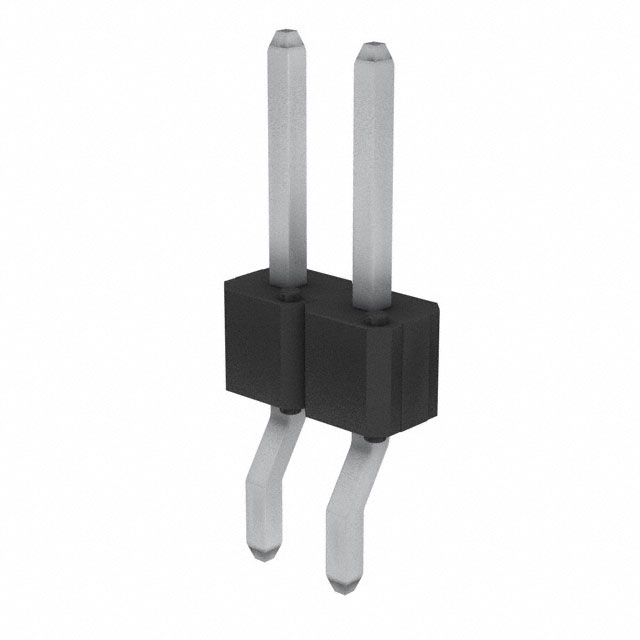

Amphenol ICC (FCI) 10027011-402HLF	Right Angle Surface Mount	Tin	1	3 A	Black	Push-Pull	100 çin	2.54 çm	UL94 V-0	0.23 in	5.84 mm	Unshrouded	Header Breakaway	0.1 "	2.54 mm	Solder	All	2	Square	Male Pin	2.41 mm	0.095 in	Phosphor Bronze	-65 ░C	125 °C

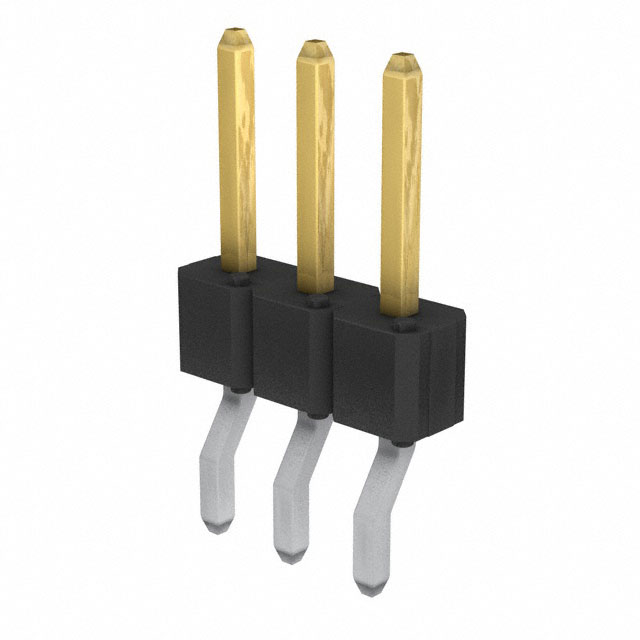

Amphenol ICC (FCI) 10027011-103HLF	Right Angle Surface Mount	Tin	1	3 A	Black	Push-Pull	30 Áin	0.76 Ám	UL94 V-0	0.23 in	5.84 mm	Unshrouded	Header Breakaway	0.1 "	2.54 mm	Solder	All		Square	Male Pin	2.41 mm	0.095 in	Phosphor Bronze	-65 ░C	125 °C	Gold GXT™
