ED950 Series

Catalog

TERM BLOCK PLUG 9POS STR 5MM

Part	Contact Material	Wire Strip Length	Screw Size	Insulation Height [custom]	Insulation Height [custom]	Material Flammability Rating	Torque - Screw	Torque - Screw	Housing Material	Plug Wire Entry	Number of Levels	Pitch	Pitch	Mounting Type	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Type	Voltage - UL	Wire Gauge or Range - mm²	Operating Temperature [Min]	Operating Temperature [Max]	Color	Number of Positions	Positions Per Level	Termination Style	Wire Gauge or Range - mm˛	Positions Per Level [custom]

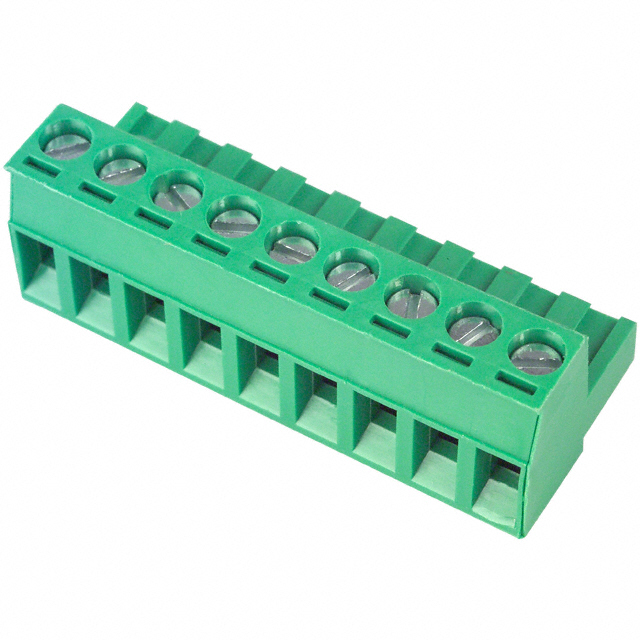

On Shore Technology Inc. ED950/9	Copper	6 mm	M3	0.591 in	15 mm	UL94 V-0	4.4 Lb-In	0.5 Nm	Polyamide (PA) Nylon	180 °	1	0.197 in	5 mm	Free Hanging (In-Line)	22 AWG	12 AWG	Plug Female Sockets	300 V	2.5 mm²	-30 ░C	105 ░C	Green	9	9	Screw
On Shore Technology Inc. ED950/18	Copper	6 mm	M3	0.591 in	15 mm	UL94 V-0	4.4 Lb-In	0.5 Nm	Polyamide (PA) Nylon	180 °	1	0.197 in	5 mm	Free Hanging (In-Line)	22 AWG	12 AWG	Plug Female Sockets	300 V	2.5 mm²	-30 ░C	105 ░C	Green	18	18	Screw	2.5 mm˛
On Shore Technology Inc. ED950/15	Copper	6 mm	M3	0.591 in	15 mm	UL94 V-0	4.4 Lb-In	0.5 Nm	Polyamide (PA) Nylon	180 °	1	0.197 in	5 mm	Free Hanging (In-Line)	22 AWG	12 AWG	Plug Female Sockets	300 V	2.5 mm²	-30 ░C	105 ░C	Green	15	15	Screw

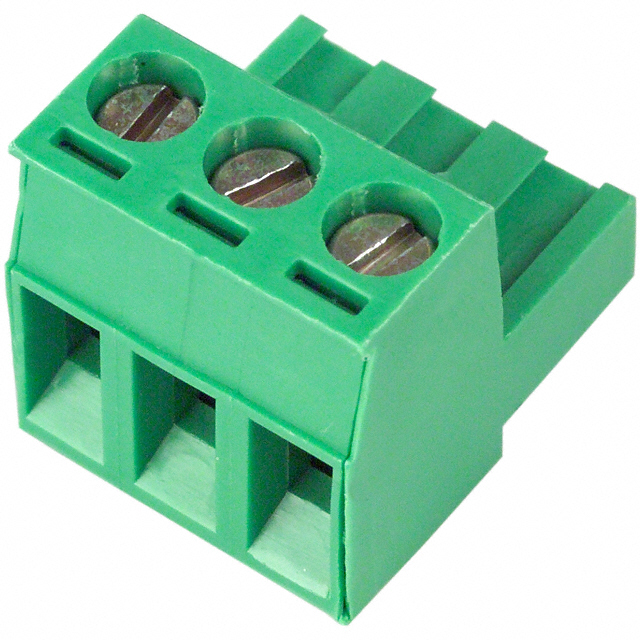

On Shore Technology Inc. ED950/3	Copper	6 mm	M3	0.591 in	15 mm	UL94 V-0	4.4 Lb-In	0.5 Nm	Polyamide (PA) Nylon	180 °	1	0.197 in	5 mm	Free Hanging (In-Line)	22 AWG	12 AWG	Plug Female Sockets	300 V	2.5 mm²	-30 ░C	105 ░C	Green		3	Screw	2.5 mm˛

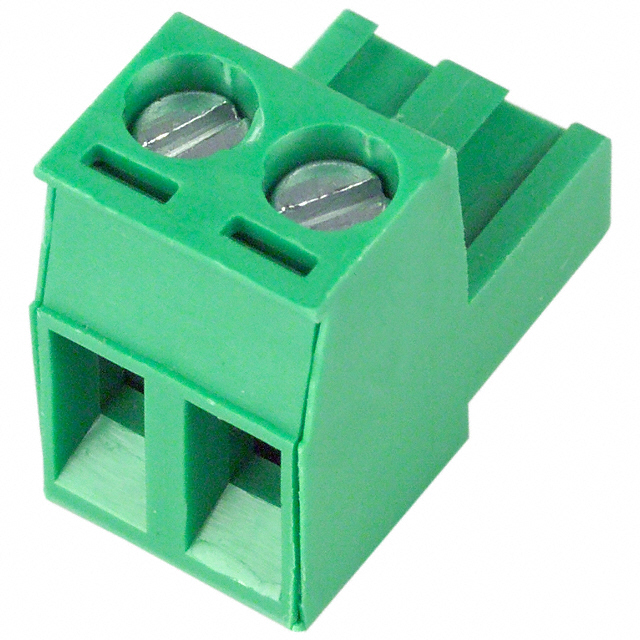

On Shore Technology Inc. ED950/2	Copper	6 mm	M3	0.591 in	15 mm	UL94 V-0	4.4 Lb-In	0.5 Nm	Polyamide (PA) Nylon	180 °	1	0.197 in	5 mm	Free Hanging (In-Line)	22 AWG	12 AWG	Plug Female Sockets	300 V	2.5 mm²	-30 ░C	105 ░C	Green	2	2	Screw	2.5 mm˛

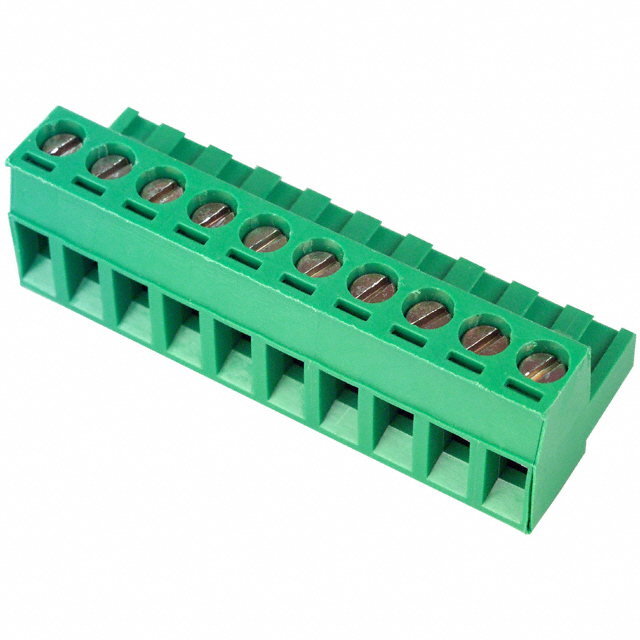

On Shore Technology Inc. ED950/10	Copper	6 mm	M3	0.591 in	15 mm	UL94 V-0	4.4 Lb-In	0.5 Nm	Polyamide (PA) Nylon	180 °	1	0.197 in	5 mm	Free Hanging (In-Line)	22 AWG	12 AWG	Plug Female Sockets	300 V	2.5 mm²	-30 ░C	105 ░C	Green	10	10	Screw	2.5 mm˛

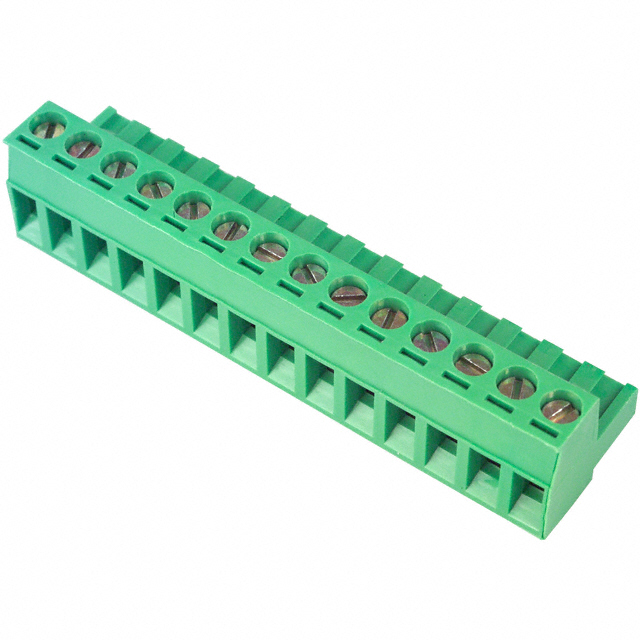

On Shore Technology Inc. ED950/14	Copper	6 mm	M3	0.591 in	15 mm	UL94 V-0	4.4 Lb-In	0.5 Nm	Polyamide (PA) Nylon	180 °	1	0.197 in	5 mm	Free Hanging (In-Line)	22 AWG	12 AWG	Plug Female Sockets	300 V	2.5 mm²	-30 ░C	105 ░C	Green	14	14	Screw
On Shore Technology Inc. ED950/12	Copper	6 mm	M3	0.591 in	15 mm	UL94 V-0	4.4 Lb-In	0.5 Nm	Polyamide (PA) Nylon	180 °	1	0.197 in	5 mm	Free Hanging (In-Line)	22 AWG	12 AWG	Plug Female Sockets	300 V	2.5 mm²	-30 ░C	105 ░C	Green	12	12	Screw
On Shore Technology Inc. ED950/11BK	Copper	6 mm	M3	0.591 in	15 mm	UL94 V-0	4.4 Lb-In	0.5 Nm	Polyamide (PA) Nylon	180 °	1	0.197 in	5 mm	Free Hanging (In-Line)	22 AWG	12 AWG	Plug Female Sockets	300 V	2.5 mm²	-30 ░C	105 ░C	Black	11	11	Screw	2.5 mm˛
On Shore Technology Inc. ED950/24	Copper	6 mm	M3	0.591 in	15 mm	UL94 V-0	4.4 Lb-In	0.5 Nm	Polyamide (PA) Nylon	180 °	1	0.197 in	5 mm	Free Hanging (In-Line)	22 AWG	12 AWG	Plug Female Sockets	300 V	2.5 mm²	-30 ░C	105 ░C	Green	24		Screw	2.5 mm˛	24
