ESX108M Series

Manufacturer: KEMET

Catalog

CAP ALUM 1000UF 20% 35V RADIAL

Part	Ripple Current @ High Frequency	Mounting Type	Capacitance	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [diameter]	Size / Dimension [diameter]	Lead Spacing	Lead Spacing	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Package / Case	Applications	Tolerance	Lifetime @ Temp.	Impedance	Voltage - Rated	Ripple Current @ Low Frequency	Polarization	ESR (Equivalent Series Resistance)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]

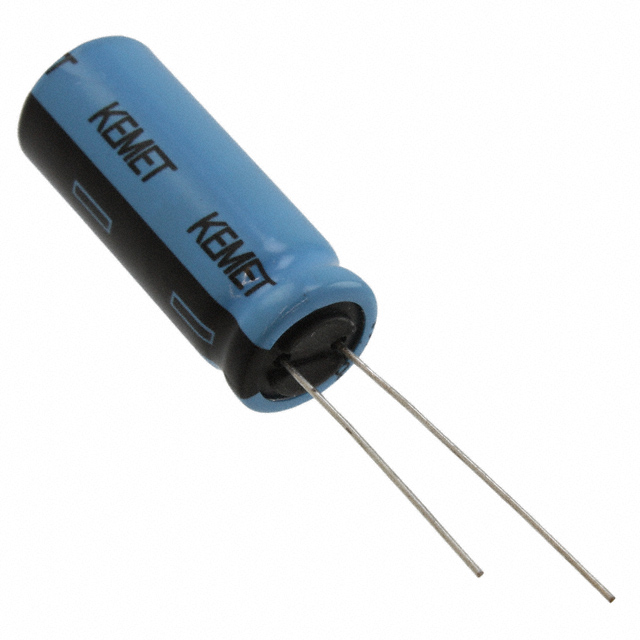

KEMET ESX108M035AK2AA	2 A	Through Hole	1000 µF	-40 C	105 ░C	0.472 "	12 mm	0.197 "	5 mm	1.26 in	32 mm	Can Radial	General Purpose	20 %	5000 Hrs	61 mOhms	35 V	1.6 A	Polar

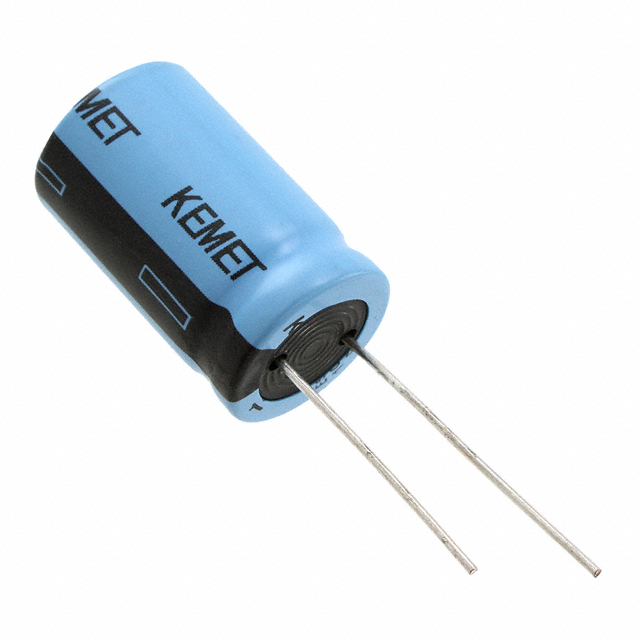

KEMET ESX108M050AM7AA	1.8 A	Through Hole	1000 µF	-40 C	105 ░C	0.63 in	16 mm	0.295 in	7.5 mm			Can Radial	General Purpose	20 %	5000 Hrs	60 mOhms	50 VDC	1.44 A	Polar	60 mOhm	1.063 in	27 mm
