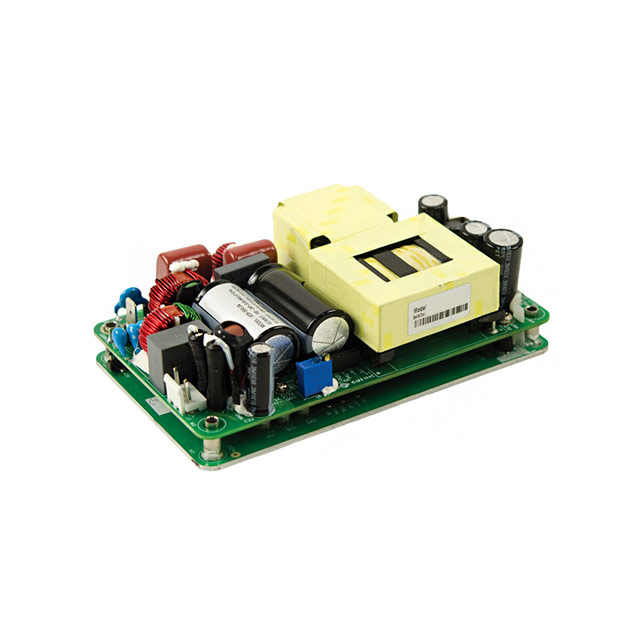

VOF-550 Series
Manufacturer: CUI Inc.
Beta
⌘K
AC/DC CONVERTER 24V 150W
| Part | Voltage - Output 1 | Features | Power (Watts) | Power (Watts) | Applications | Current - Output 1 | Approval Agency | Mounting Type | Type | Standard Number | Number of Outputs | Efficiency | Voltage - Input [Max] | Voltage - Input [Min] | Voltage - Isolation | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CUI Inc. | 24 V | Adjustable Output Standby Output Universal Input | 550 W | 150 W | ITE (Commercial) | 6.25 A | CB Scheme EN FCC IEC SIQ TUV UL | Chassis Mount | Open Frame | 55024 55032 Class B 60950-1 61000-3-2 61000-3-3 | 1 | 91 % | 264 VAC | 90 VAC | 3000 V | 76.2 mm | 127 mm | 1.5 in | 3 " | 5 " | 38.1 mm |
CUI Inc. | 12 V | Adjustable Output Standby Output Universal Input | 500 W | 120 W | ITE (Commercial) | 10 A | CB Scheme EN FCC IEC SIQ TUV UL | Chassis Mount | Open Frame | 55024 55032 Class B 60950-1 61000-3-2 61000-3-3 | 1 | 90 % | 264 VAC | 90 VAC | 3000 V | 76.2 mm | 127 mm | 1.5 in | 3 " | 5 " | 38.1 mm |
CUI Inc. | 30 V | Adjustable Output PFC Standby Output Universal Input | 550 W | 150 W | ITE (Commercial) | 5 A | CB Scheme EN FCC IEC SIQ TUV UL | Chassis Mount | Open Frame | 55024 55032 Class B 60950-1 61000-3-2 61000-3-3 | 1 | 91 % | 264 VAC | 90 VAC | 3000 V | 76.2 mm | 127 mm | 1.5 in | 3 " | 5 " | 38.1 mm |
