N34TS108 Series

Low‐Voltage Digital Temperature Sensor

Catalog

Low‐Voltage Digital Temperature Sensor

Part	Supplier Device Package	Voltage - Supply [Min]	Voltage - Supply [Max]	Output Type	Sensing Temperature - Local [Max]	Sensing Temperature - Local [Min]	Features	Sensor Type	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Mounting Type	Accuracy - Highest (Lowest)	Resolution	Test Condition [Min]	Test Condition [Max]	Test Condition [Min]	Test Condition [Max]

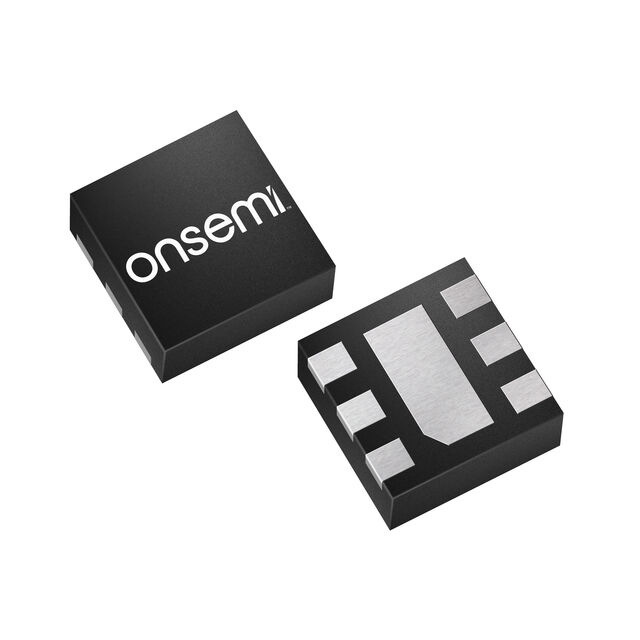

ON Semiconductor N34TS108MUET3G	6-UDFN (2x2)	1.4 V	3.6 V	SMBus	125 °C	-40 °C	One-Shot Programmable Limit Shutdown Mode Standby Mode	Digital Local	125 °C	-40 °C	6-UDFN Exposed Pad	Surface Mount	0.75 °C 1 °C	12 b	-20 °C	85 °C	-40 °C	125 °C

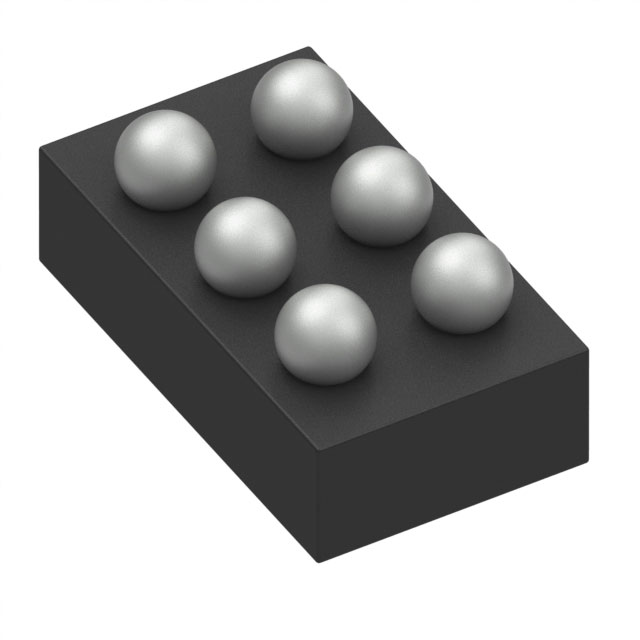

ON Semiconductor N34TS108C6EXT5G	6-WLCSP (1.19x.79)	1.4 V	3.6 V	SMBus	125 °C	-40 °C	One-Shot Programmable Limit Shutdown Mode Standby Mode	Digital Local	125 °C	-40 °C	6-UFBGA WLCSP	Surface Mount	0.75 °C 1 °C	12 b	-20 °C	85 °C	-40 °C	125 °C

Catalog

Low‐Voltage Digital Temperature Sensor

Key Features

• Dynamically-Programmable Limit Window with Under- and OverTemperature Alerts

• Accuracy:♦ ±0.75°C (max) from –20°C to +85°C♦ ±1°C (max) from –40°C to +125°C

• Low Quiescent Current:♦6 µA Active from –40°C to +125°C

• Supply Range: 1.4 V to 3.6 V

• Resolution: 12 Bits (0.0625°C)

• Package: 1.2-mm × 0.8-mm, 6-Ball WCSP

Description

N34TS108 is a digital-output temperature sensor with adynamically-programmable limit window, and under- and overtemperature alert functions. These features provide optimizedtemperature control without the need of frequent temperature readingsby the controller or application processor.The N34TS108 features SMBus and two-wire interfacecompatibility, and allows up to four devices on one bus with theSMBus alert function.The N34TS108 is ideal for thermal management optimization ina variety of consumer, computer, and environmental applications. Thedevice is specified over a temperature range of –40°C to +125°C.
