179841 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

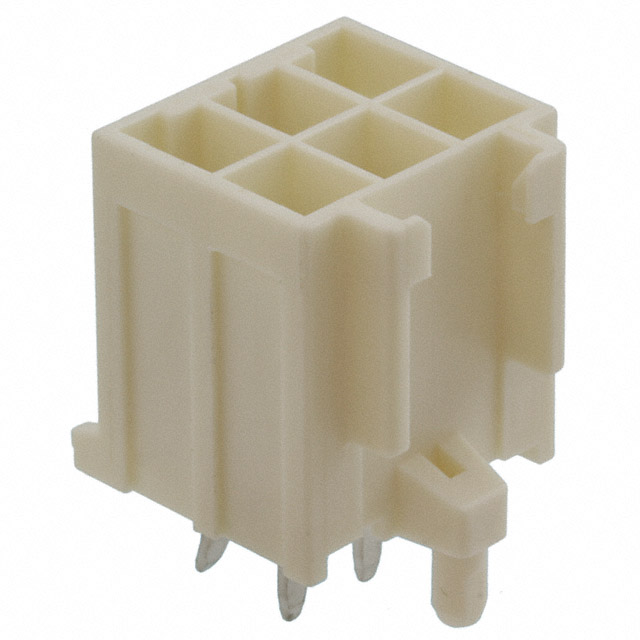

CONN HEADER VERT 6POS 3.96MM
| Part | Number of Positions | Insulation Material | Contact Material | Style | Pitch - Mating | Pitch - Mating | Features | Fastening Type | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Mounting Type | Applications | Insulation Height | Insulation Height | Shrouding | Contact Shape | Contact Finish - Post | Current Rating (Amps) | Contact Length - Post [x] | Contact Length - Post [x] | Row Spacing - Mating | Row Spacing - Mating | Termination | Number of Rows | Contact Type | Material Flammability Rating | Number of Positions Loaded | Insulation Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | 6 | Polyamide (PA66) Nylon 6/6 | Copper Alloy | Board to Cable/Wire | 0.156 in | 3.96 mm | Board Guide | Locking Ramp | -30 ░C | 105 ░C | Header | Through Hole | General Purpose | 0.575 in | 14.6 mm | Shrouded - 4 Wall | Rectangular | Tin | Varies by Wire Gauge | 0.15 in | 3.81 mm | 4.6 mm | 0.181 in | Kinked Pin Solder | 2 | Tab | UL94 V-0 | All | Red |
 TE Connectivity Raychem Cable Protection | 6 | Polyamide (PA66) Nylon 6/6 | Copper Alloy | Board to Cable/Wire | 0.156 in | 3.96 mm | Board Guide | Locking Ramp | -30 ░C | 105 ░C | Header | Through Hole | General Purpose | 0.575 in | 14.6 mm | Shrouded - 4 Wall | Rectangular | Tin | Varies by Wire Gauge | 0.15 in | 3.81 mm | 4.6 mm | 0.181 in | Kinked Pin Solder | 2 | Tab | UL94 V-0 | All | Natural |
