M39030 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

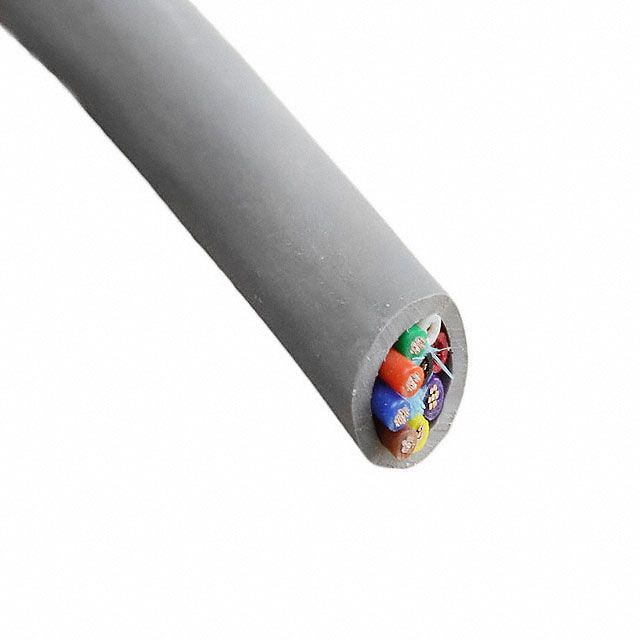

CABLE 9COND 24AWG SHLD 1000'
| Part | Shield Material | Shield Coverage | Jacket (Insulation) Material | Number of Conductors | Conductor Strand [custom] | Conductor Strand [custom] | Jacket Color | Ratings | Features | Shield Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Type | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Insulation | Conductor Material | Voltage | Length | Length | Wire Gauge | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum | 100 % | Poly-Vinyl Chloride (PVC) | 9 | 7 | 32 AWG | Slate | UL Style 2464 | Drain Wire | Foil | 5.79 mm | 0.228 in | Multi-Conductor | 80 °C | -20 ░C | Poly-Vinyl Chloride (PVC) | Copper Tinned | 300 VDC | 304.8 m | 1000 ft | 24 AWG | 0.813 mm | 0.032 in |
ALPHA WIRE | Aluminum | 100 % | Poly-Vinyl Chloride (PVC) | 9 | 7 | 32 AWG | Slate | UL Style 2464 | Drain Wire | Foil | 5.79 mm | 0.228 in | Multi-Conductor | 80 °C | -20 ░C | Poly-Vinyl Chloride (PVC) | Copper Tinned | 300 VDC | 304.8 m | 1000 ft | 24 AWG | 0.813 mm | 0.032 in |
