PWR247T Series

Catalog

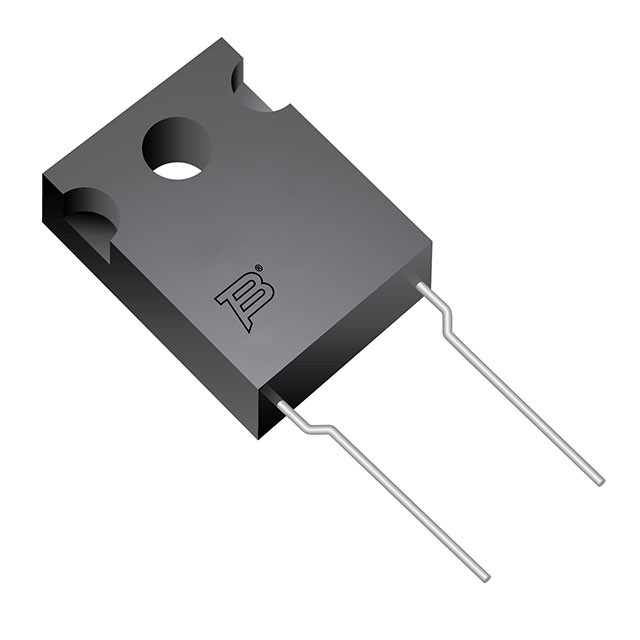

RES 0.2 OHM 1% 100W TO247

Part	Power (Watts)	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Tolerance	Supplier Device Package	Composition	Operating Temperature [Max]	Operating Temperature [Min]	Resistance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Features	Package / Case	Temperature Coefficient	Number of Terminations [custom]
Bourns Inc. PWR247T-100-R200F	100 W	15.75 mm	0.62 in	0.195 in	4.95 mm	1 %	TO-247	Thick Film	175 °C	-55 C	200 mOhms	24.5 mm	0.965 in	Automotive AEC-Q200	TO-247-2	200 ppm/°C
Bourns Inc. PWR247T-100-10R0J	100 W	15.75 mm	0.62 in	0.195 in	4.95 mm	5 %	TO-247	Thick Film	175 °C	-55 C	10 Ohms	24.5 mm	0.965 in	Automotive AEC-Q200	TO-247-2	200 ppm/°C	2
Bourns Inc. PWR247T-100-47R0J	100 W	15.75 mm	0.62 in	0.195 in	4.95 mm	5 %	TO-247	Thick Film	175 °C	-55 C	47 Ohms	24.5 mm	0.965 in	Automotive AEC-Q200	TO-247-2	100 ppm/°C	2
Bourns Inc. PWR247T-100-2R00J	100 W	15.75 mm	0.62 in	0.195 in	4.95 mm	5 %	TO-247	Thick Film	175 °C	-55 C	2 Ohms	24.5 mm	0.965 in	Automotive AEC-Q200	TO-247-2	200 ppm/°C	2
Bourns Inc. PWR247T-100-R200J	100 W	15.75 mm	0.62 in	0.195 in	4.95 mm	5 %	TO-247	Thick Film	175 °C	-55 C	200 mOhms	24.5 mm	0.965 in	Automotive AEC-Q200	TO-247-2	200 ppm/°C
Bourns Inc. PWR247T-100-20R0F	100 W	15.75 mm	0.62 in	0.195 in	4.95 mm	1 %	TO-247	Thick Film	175 °C	-55 C	20 Ohms	24.5 mm	0.965 in	Automotive AEC-Q200	TO-247-2	200 ppm/°C	2
Bourns Inc. PWR247T-100-2R70F	100 W	15.75 mm	0.62 in	0.195 in	4.95 mm	1 %	TO-247	Thick Film	175 °C	-55 C	2.7 Ohms	24.5 mm	0.965 in	Automotive AEC-Q200	TO-247-2	200 ppm/°C
Bourns Inc. PWR247T-100-R100J	100 W	15.75 mm	0.62 in	0.195 in	4.95 mm	5 %	TO-247	Thick Film	175 °C	-55 C	0.1 Ohms	24.5 mm	0.965 in	Automotive AEC-Q200	TO-247-2	200 ppm/°C
Bourns Inc. PWR247T-100-15R0J	100 W	15.75 mm	0.62 in	0.195 in	4.95 mm	5 %	TO-247	Thick Film	175 °C	-55 C	15 Ohms	24.5 mm	0.965 in	Automotive AEC-Q200	TO-247-2	200 ppm/°C	2
Bourns Inc. PWR247T-100-1R00F	100 W	15.75 mm	0.62 in	0.195 in	4.95 mm	1 %	TO-247	Thick Film	175 °C	-55 C	1 Ohms	24.5 mm	0.965 in	Automotive AEC-Q200	TO-247-2	200 ppm/°C	2
