Catalog

CBL RIBN 4COND TWIST-PAIR

...

Part	Current Rating	Conductor Material	Insulation Resistance	Shielding	Voltage	Ratings	Length	Wire Gauge	Number of Conductors	Conductor Arrangement	Number of Conductors - Pair	Features	Jacket Color	Cable Type	Operating Temperature (Min)	Operating Temperature (Max)	Ribbon Width	Jacket (Insulation) Material	Ribbon Thickness	Length	Jacket (Insulation) Diameter

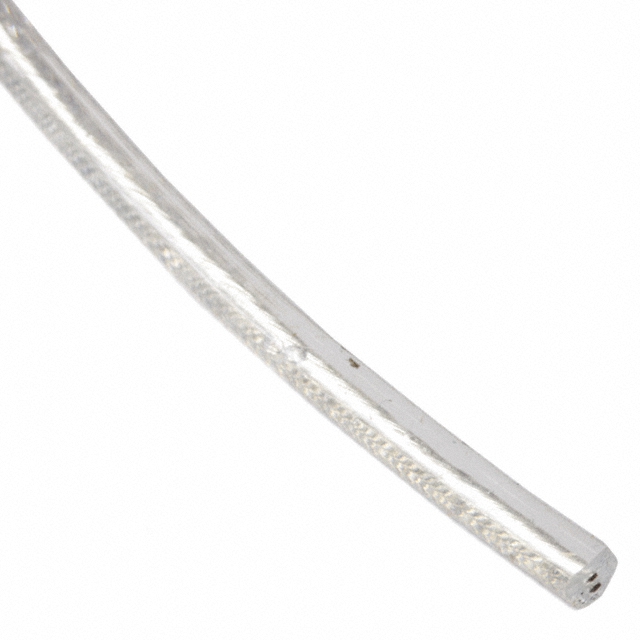

Cicoil 969M101-24-2TPS-025	8 A	Copper Tinned	200 MOhm	Shielded	12 kVDC	CE UL E324413	25 ft	24 AWG	4	Twisted	2	Hi-Flex	Clear	Flat Cable	-65 °C	165 °C	0.25 in	Flexx-Sil™	0.141 in

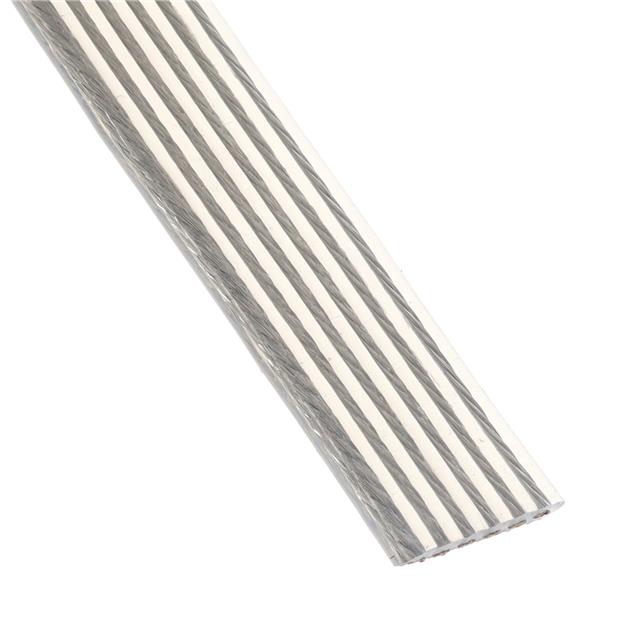

Cicoil 969M101-18-6-050	20 A	Copper Tinned	200 MOhm	Unshielded	20 kV	CE UL E324413	50 ft	18 AWG	6			Hi-Flex	Clear	Flat Cable	-65 °C	165 °C	0.622 in	Flexx-Sil™	0.141 in

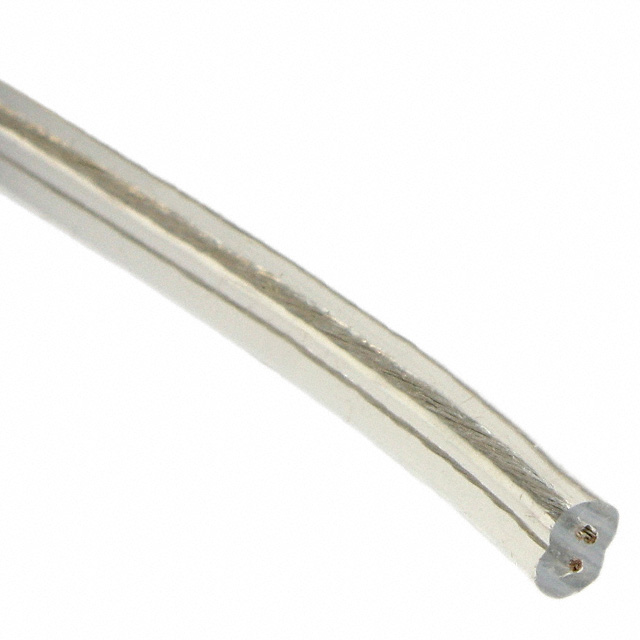

Cicoil 969M101-26-2	6 A	Copper Tinned	200 MOhm	Unshielded	12 kVDC	CE UL E324413	100 ft 1000 ft	26 AWG	2			Hi-Flex	Clear	Flat Cable	-65 °C	165 °C	0.14 in	Flexx-Sil™	0.09 in
Cicoil 969M101-12-4-050	36 A	Copper Tinned	200 MOhm	Unshielded	20 kV	CE UL E324413	50 ft	12 AWG	4			Hi-Flex	Clear	Flat Cable	-65 °C	165 °C	0.75 in	Flexx-Sil™	0.24 in
Cicoil 969M101-14-1		Copper Tinned			42 kV		25 ft 50 ft 100 ft 1000 ft	14 AWG					Clear	Hook-Up	-65 °C	165 °C		Flexx-Sil™		Enter Number of Feet in Order Quantity	0.28 in

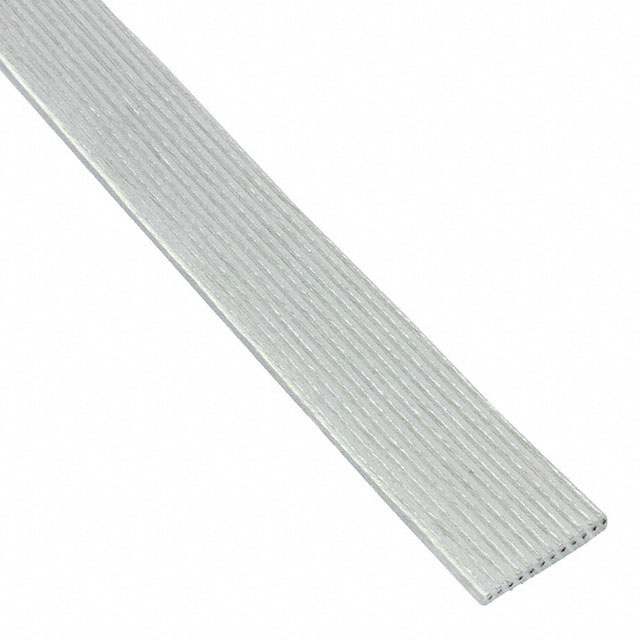

Cicoil 969M101-22-12-050	11 A	Copper Tinned	200 MOhm	Unshielded	18 kV	CE UL E324413	50 ft	22 AWG	12			Hi-Flex	Clear	Flat Cable	-65 °C	165 °C	0.87 in	Flexx-Sil™	0.11 in
Cicoil 969M101-12-1		Copper Tinned			42 kV		25 ft 50 ft 100 ft 1000 ft	12 AWG					Clear	Hook-Up	-65 °C	165 °C		Flexx-Sil™		Enter Number of Feet in Order Quantity	0.3 in

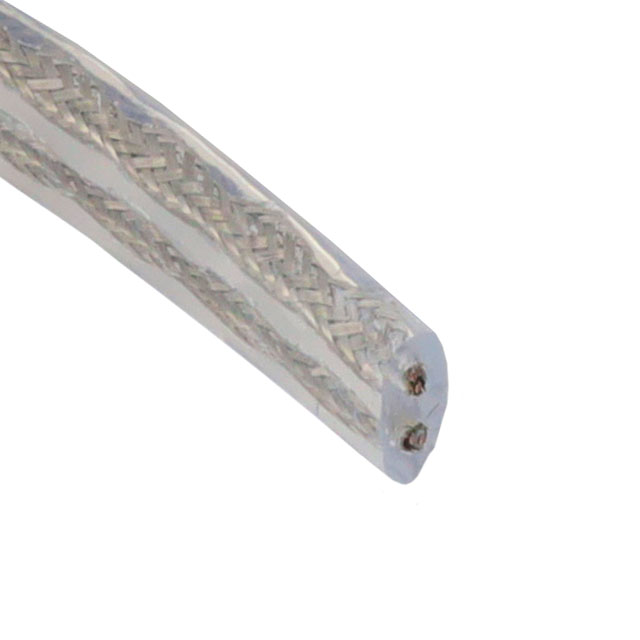

Cicoil 969M101-26-2TPS-025	6 A	Copper Tinned	200 MOhm	Shielded	12 kVDC	CE UL E324413	25 ft	26 AWG	4	Twisted	2	Hi-Flex	Clear	Flat Cable	-65 °C	165 °C	0.236 in	Flexx-Sil™	0.13 in
Cicoil 969M101-8-1-050		Copper Tinned			42 kV		50 ft	8 AWG					Clear	Hook-Up	-65 °C	165 °C		Flexx-Sil™			0.39 in
Cicoil 969M101-10-1-050		Copper Tinned			42 kV		50 ft	10 AWG					Clear	Hook-Up	-65 °C	165 °C		Flexx-Sil™			0.33 in
