A2MXS Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

ADM64S/AE64G/X

Part	Contact Finish	Pitch - Cable	Pitch - Cable	Length [x]	Length [x]	Shielding	Number of Positions	Number of Rows [custom]	Pitch - Connector	Pitch - Connector	Usage	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Cable Termination	Color	Number of Positions [custom]	Length	Length	Length

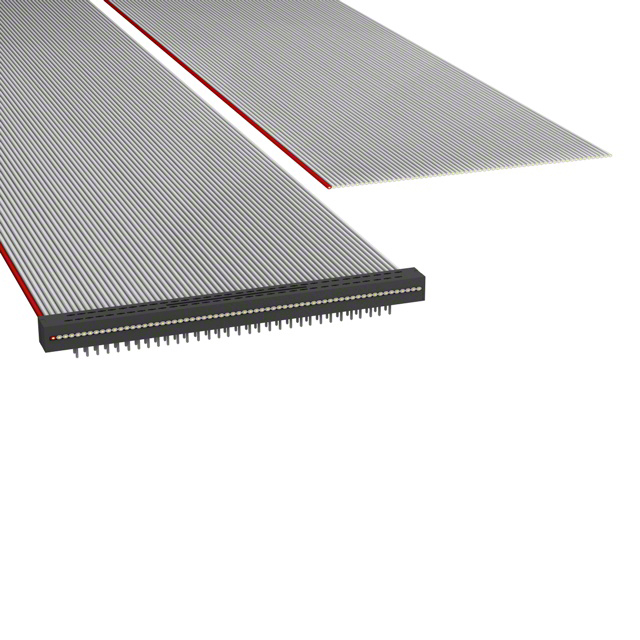

TE Connectivity AMP Connectors A2MXS-6418G	Tin	0.05 in	1.27 mm	457.2 mm	1.5 ft	Unshielded	64	2	0.1 in	2.54 mm	Board In Socket (0.1")	2.54 µm	100 µin	DIP to Cable	IDC

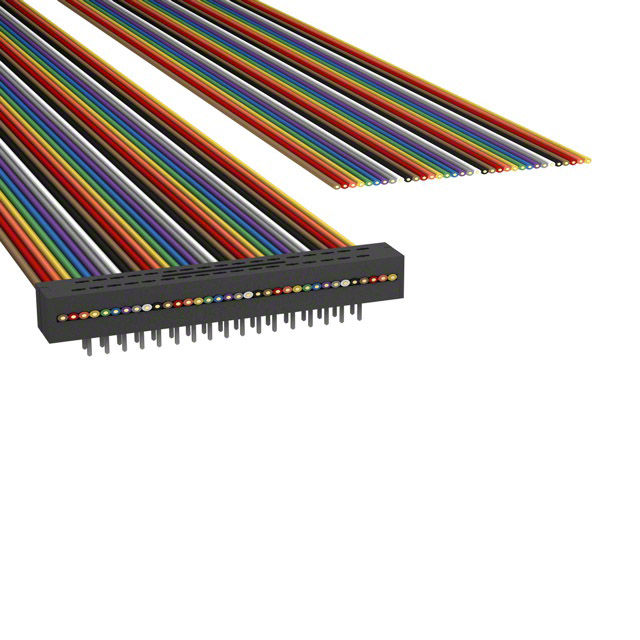

TE Connectivity AMP Connectors A2MXS-3418M	Tin	0.05 in	1.27 mm	457.2 mm	1.5 ft	Unshielded		2	0.1 in	2.54 mm	Board In Socket (0.1")	2.54 µm	100 µin	DIP to Cable	IDC	Multiple Ribbon	34

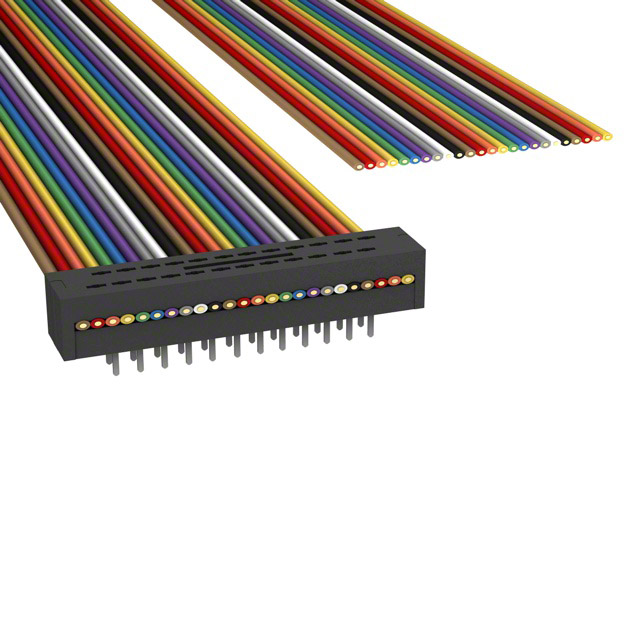

TE Connectivity AMP Connectors A2MXS-2418M	Tin	0.05 in	1.27 mm	457.2 mm	1.5 ft	Unshielded	24	2	0.1 in	2.54 mm	Board In Socket (0.1")	2.54 µm	100 µin	DIP to Cable	IDC	Multiple Ribbon

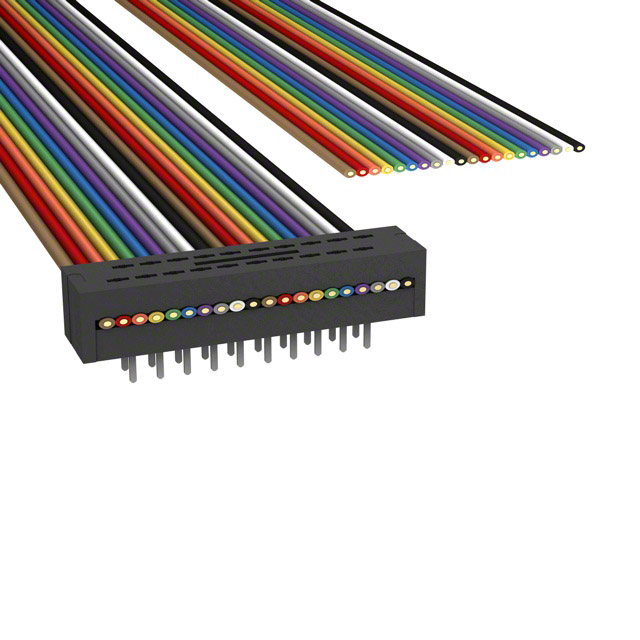

TE Connectivity AMP Connectors A2MXS-2018M	Tin	0.05 in	1.27 mm	457.2 mm	1.5 ft	Unshielded	20	2	0.1 in	2.54 mm	Board In Socket (0.1")	2.54 µm	100 µin	DIP to Cable	IDC	Multiple Ribbon

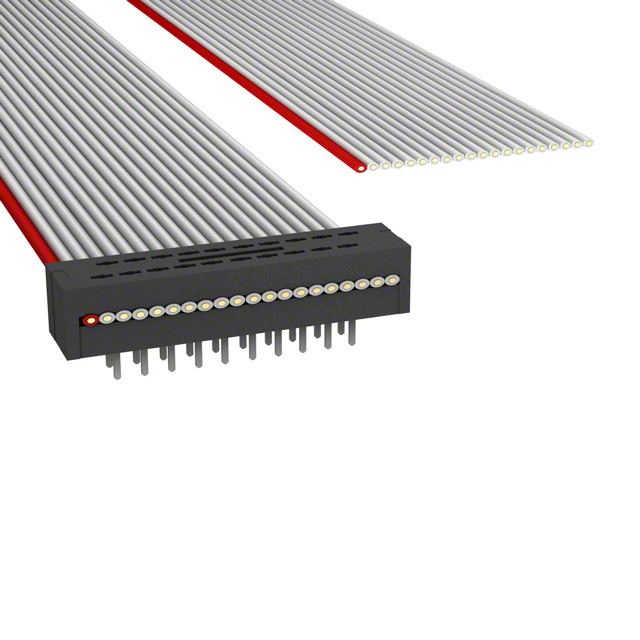

TE Connectivity AMP Connectors A2MXS-2006G	Tin	0.05 in	1.27 mm			Unshielded	20	2	0.1 in	2.54 mm	Board In Socket (0.1")	2.54 µm	100 µin	DIP to Cable	IDC			152.4 mm	0.5 '	6 "

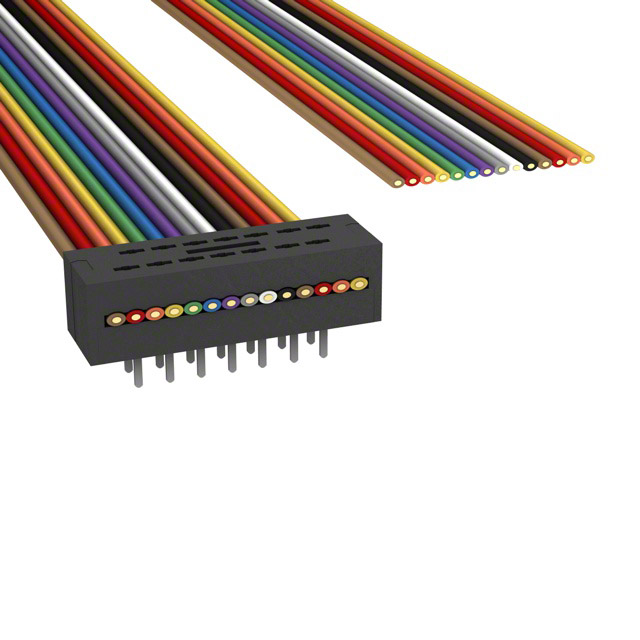

TE Connectivity AMP Connectors A2MXS-1406M	Tin	0.05 in	1.27 mm			Unshielded	14	2	0.1 in	2.54 mm	Board In Socket (0.1")	2.54 µm	100 µin	DIP to Cable	IDC	Multiple Ribbon		152.4 mm	0.5 '	6 "

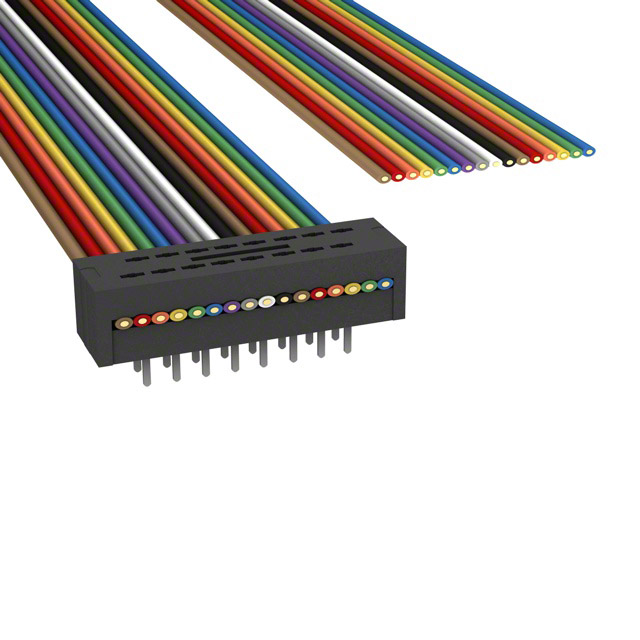

TE Connectivity AMP Connectors A2MXS-1606M	Tin	0.05 in	1.27 mm			Unshielded	16	2	0.1 in	2.54 mm	Board In Socket (0.1")	2.54 µm	100 µin	DIP to Cable	IDC	Multiple Ribbon		152.4 mm	0.5 '	6 "

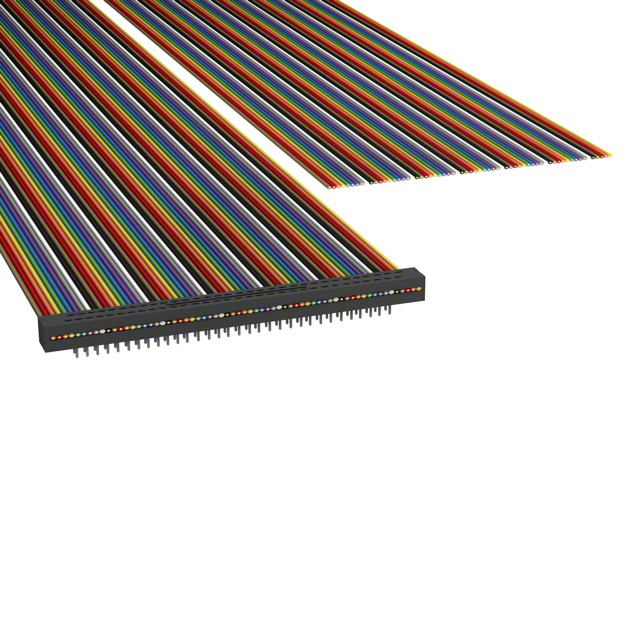

TE Connectivity AMP Connectors A2MXS-6418M	Tin	0.05 in	1.27 mm	457.2 mm	1.5 ft	Unshielded	64	2	0.1 in	2.54 mm	Board In Socket (0.1")	2.54 µm	100 µin	DIP to Cable	IDC	Multiple Ribbon
TE Connectivity AMP Connectors A2MXS-5018M	Tin	0.05 in	1.27 mm	457.2 mm	1.5 ft	Unshielded	50	2	0.1 in	2.54 mm	Board In Socket (0.1")	2.54 µm	100 µin	DIP to Cable	IDC	Multiple Ribbon
TE Connectivity AMP Connectors A2MXS-3436G	Tin	0.05 in	1.27 mm			Unshielded		2	0.1 in	2.54 mm	Board In Socket (0.1")	2.54 µm	100 µin	DIP to Cable	IDC		34	91.44 cm	3 ft
