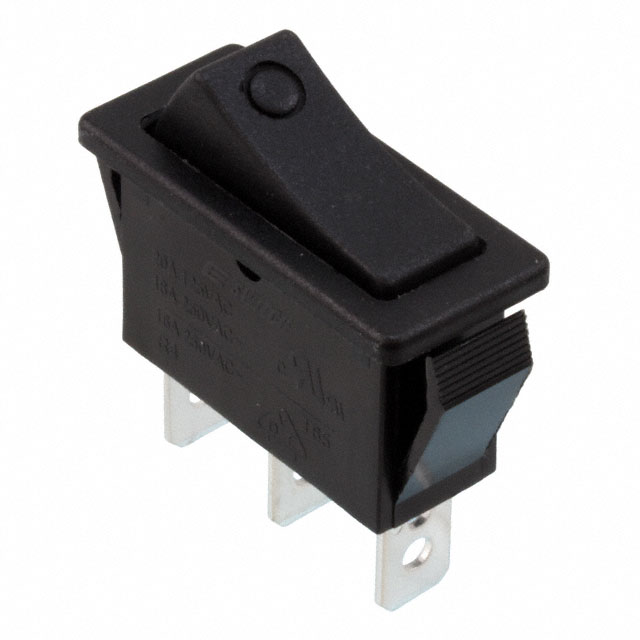

R4EBLKBL Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH ROCKER SPDT 20A 125V
| Part | Electrical Life | Mechanical Life | Mounting Type | Color - Actuator/Cap | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Type | Termination Style | Actuator Marking | Voltage Rating - AC | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Approval Agency | Circuit | Switch Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 6000 Cycles | 30000 Steps | Panel Mount Snap-In | Black | 20 A | 55 °C | -20 ░C | Concave (Curved) | Quick Connect - 0.250" (6.3mm) | No Marking | 125 V | 30.1 mm | 11.1 mm | UL | SPDT | On-Mom |
