2809-2 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

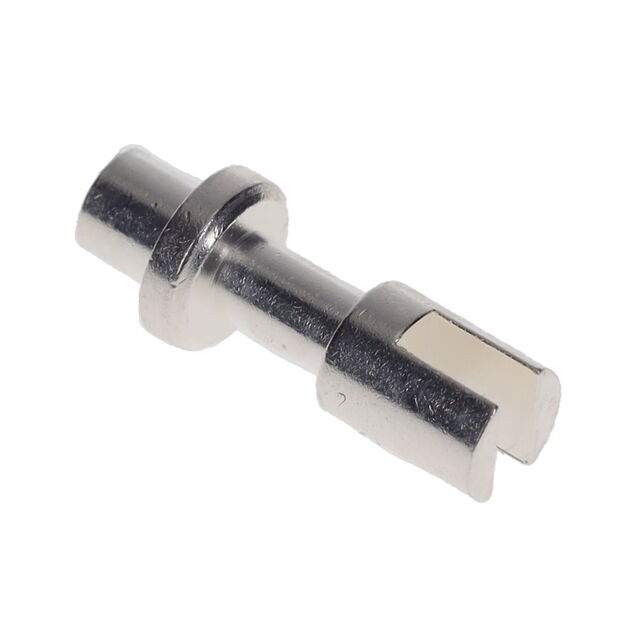

CONN PC PIN CIRC 0.091DIA SILVER
| Part | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Contact Finish | Flange Diameter [diameter] | Flange Diameter [diameter] | Termination | Contact Material | Length - Overall [custom] | Length - Overall [custom] | Terminal Type | Mounting Type | Length - Above Flange | Length - Above Flange [x] | Length - Below Flange [x] | Length - Below Flange [x] | Insulation | Contact Finish Thickness | Contact Finish Thickness | Terminal Style | Board Thickness | Board Thickness | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 0.116 in | 2.95 mm | Silver | 4.78 mm | 0.188 in | Swage | Brass Alloy | 0.5 " | 12.7 mm | PC Pin | Through Hole | 8.74 mm | 0.344 " | 0.109 " | 2.77 mm | Non-Insulated | 7.62 µm | 300 µin | Single End Slotted | 1.57 mm | 0.062 " | 2.31 mm | 0.091 in |
 Mill-Max Manufacturing Corp. | 0.116 in | 2.95 mm | Tin | 4.78 mm | 0.188 in | Swage | Brass Alloy | 0.5 " | 12.7 mm | PC Pin | Through Hole | 8.74 mm | 0.344 " | 0.109 " | 2.77 mm | Non-Insulated | 5.08 Ám | 200 Áin | Single End Slotted | 1.57 mm | 0.062 " | 2.31 mm | 0.091 in |
Mill-Max Manufacturing Corp. | 0.116 in | 2.95 mm | Tin-Lead | 4.78 mm | 0.188 in | Swage | Brass Alloy | 0.5 " | 12.7 mm | PC Pin | Through Hole | 8.74 mm | 0.344 " | 0.109 " | 2.77 mm | Non-Insulated | 5.08 Ám | 200 Áin | Single End Slotted | 1.57 mm | 0.062 " | 2.31 mm | 0.091 in |
