LS1088 Series
Manufacturer: Freescale Semiconductor - NXP
Beta
⌘K

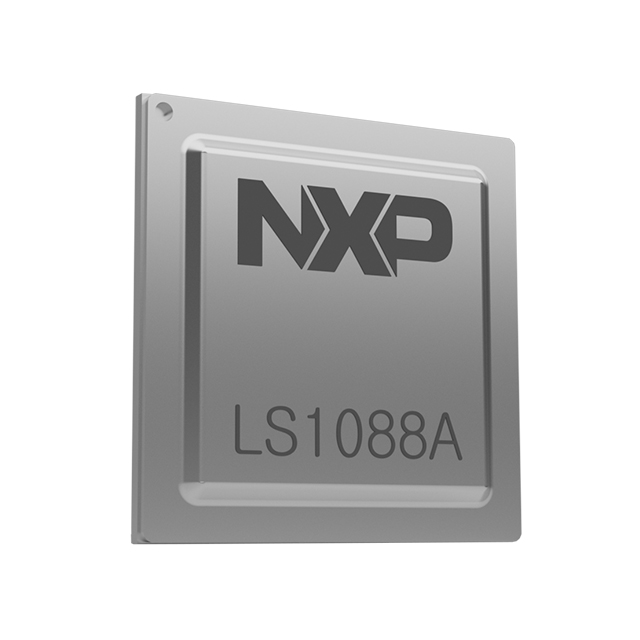

IC MPU QORLQ LS1 1.2GHZ 780FBGA
| Part | Speed | Operating Temperature [Max] | Operating Temperature [Min] | Ethernet | Supplier Device Package | RAM Controllers | Mounting Type | Number of Cores/Bus Width | Security Features | SATA | USB | Core Processor | Type | Board Type | Operating System | Contents | Utilized IC / Part | Co-Processors/DSP | Package / Case | Graphics Acceleration | Voltage - I/O | Additional Interfaces |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Freescale Semiconductor - NXP | 1.2 GHz | 105 ░C | 0 °C | 10GbE (2) 1GbE (8) | 780-FBGA (23x23) | DDR4 | Surface Mount | 8 Core 64 Bit | Secure Boot TrustZone® | SATA 6Gbps (1) | USB 3.0 (2) + PHY | ARM® Cortex®-A53 | ||||||||||
 Freescale Semiconductor - NXP | 1.4 GHz | 105 ░C | -40 °C | 10GbE (2) 1GbE (8) | 780-FBGA (23x23) | DDR4 | Surface Mount | 8 Core 64 Bit | Secure Boot TrustZone® | SATA 6Gbps (1) | USB 3.0 (2) + PHY | ARM® Cortex®-A53 | ||||||||||
 Freescale Semiconductor - NXP | 1.2 GHz | 105 ░C | 0 °C | 10GbE (2) 1GbE (8) | 780-FBGA (23x23) | DDR4 | Surface Mount | 8 Core 64 Bit | Secure Boot TrustZone® | SATA 6Gbps (1) | USB 3.0 (2) + PHY | ARM® Cortex®-A53 | ||||||||||

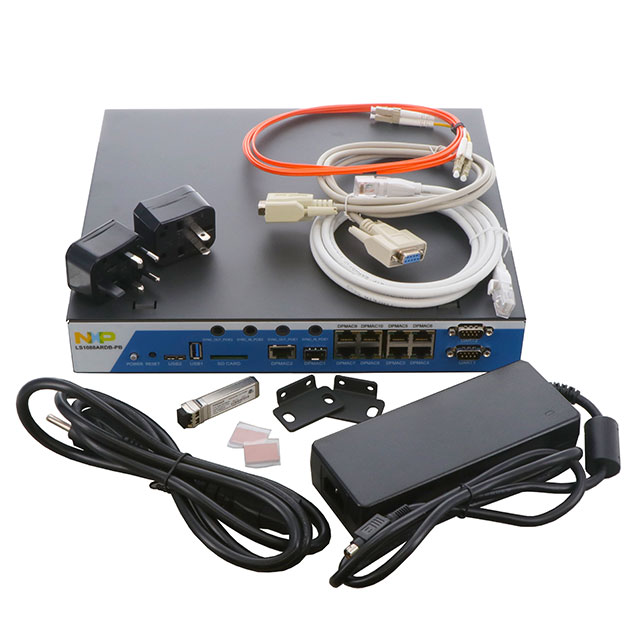

 Freescale Semiconductor - NXP | Fixed | ARM® Cortex®-A53 | MPU | Evaluation Platform | Linux | Board(s) | LS1088A | |||||||||||||||
Freescale Semiconductor - NXP | 1.4 GHz | 105 ░C | 0 °C | 10GbE (2) 1GbE (8) | 780-FBGA (23x23) | DDR4 | Surface Mount | 8 Core 64 Bit | Secure Boot TrustZone® | SATA 6Gbps (1) | USB 3.0 (2) + PHY | ARM® Cortex®-A53 | ||||||||||
Freescale Semiconductor - NXP | 1.6 GHz | 105 ░C | -40 °C | 10GbE (2) 1GbE (8) | 780-FBGA (23x23) | DDR4 | Surface Mount | 8 Core 64 Bit | Secure Boot TrustZone® | SATA 6Gbps (1) | USB 3.0 (2) + PHY | ARM® Cortex®-A53 | ||||||||||
Freescale Semiconductor - NXP | 1.6 GHz | 105 ░C | 0 °C | 10GbE (2) 1GbE (8) | 780-FBGA (23x23) | DDR4 | Surface Mount | 8 Core 64 Bit | Secure Boot TrustZone® | SATA 6Gbps (1) | USB 3.0 (2) + PHY | ARM® Cortex®-A53 | ||||||||||
Freescale Semiconductor - NXP | 1.6 GHz | 105 ░C | -40 °C | 10GbE (2) 1GbE (8) | 780-FBGA (23x23) | DDR4 | Surface Mount | 8 Core 64 Bit | Secure Boot TrustZone® | SATA 6Gbps (1) | USB 3.0 (2) + PHY | ARM® Cortex®-A53 | ||||||||||
Freescale Semiconductor - NXP | 1.2 GHz | 105 °C | 0 °C | 10GbE (2) 1GbE (8) | 780-FBGA (23x23) | DDR4 | Surface Mount | 8 Core 64 Bit | Secure Boot TrustZone® | SATA 6Gbps (1) | USB 3.0 + PHY (2) | ARM® Cortex®-A53 | Multimedia NEON™ SIMD | 780-BFBGA | 1.2 V | DUART eMMC/SD/SDIO I2C IFC PCI SPI UART | ||||||
Freescale Semiconductor - NXP | 1.4 GHz | 105 ░C | 0 °C | 10GbE (2) 1GbE (8) | 780-FBGA (23x23) | DDR4 | Surface Mount | 8 Core 64 Bit | Secure Boot TrustZone® | SATA 6Gbps (1) | USB 3.0 (2) + PHY | ARM® Cortex®-A53 |
