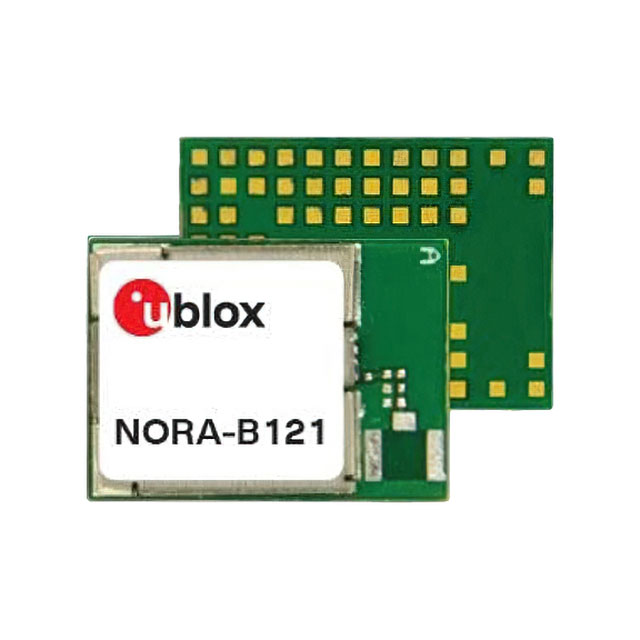

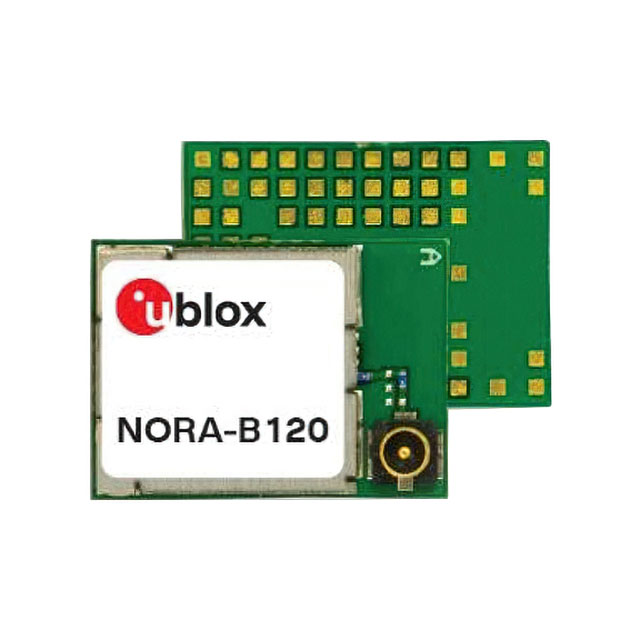

NORA-B1 Series
Manufacturer: u-blox
Beta
⌘K
RF TXRX MOD 802.15.4 BT/ANTSMD
| Part | Package / Case | Sensitivity | Data Rate | Antenna Type | Memory Size (Flash) | Memory Type | Memory Size ({type}) | Memory Size (RAM) | Memory Size (SRAM) | Current - Transmitting (Min) | Current - Transmitting (Max) | Frequency | RF Family/Standard | Utilized IC / Part | Power - Output | Protocol | Serial Interfaces | Operating Temperature (Min) | Operating Temperature (Max) | Mounting Type | Voltage - Supply (Maximum) | Voltage - Supply (Minimum) | Current - Receiving |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 u-blox | 94-SMD Module | -109 dBm | 2 Mbps | Antenna Not Included | 1 MB | Flash RAM SRAM | 512 kB | 512 kB | 512 kB | 4.1 mA | 5.3 mA | 2.4 GHz | 802.15.4 Bluetooth/ANT | nRF5340 | 18 dBm | Bluetooth v5.2 Thread Zigbee® | ADC GPIO I2C I2S PDM PWM SPI UART USB | -40 °C | 105 °C | Surface Mount | 3.6 V | 1.7 V | 3.7 mA |
 u-blox | Module | -97.5 dBm | 2 Mbps | Antenna Not Included U.FL | 1 MB | Flash RAM SRAM | 512 kB | 512 kB | 512 kB | 2.4 GHz | 802.15.4 Bluetooth | nRF5340 | 3 dBm | Bluetooth v5.2 Thread Zigbee® | ADC GPIO I2C I2S PDM PWM SPI UART USB | -40 °C | 105 °C | Surface Mount | 5.5 V | 1.7 V | |||
 u-blox | 94-SMD Module | -109 dBm | 2 Mbps | Antenna Not Included U.FL | 1 MB | Flash RAM SRAM | 512 kB | 512 kB | 512 kB | 4.1 mA | 5.3 mA | 2.4 GHz | 802.15.4 Bluetooth/ANT | nRF5340 | 18 dBm | Bluetooth v5.2 Thread Zigbee® | ADC GPIO I2C I2S PDM PWM SPI UART USB | -40 °C | 105 °C | Surface Mount | 3.6 V | 1.7 V | 3.7 mA |
 u-blox | 94-SMD Module | -109 dBm | 2 Mbps | PCB Trace | 1 MB | Flash RAM SRAM | 512 kB | 512 kB | 512 kB | 4.1 mA | 5.3 mA | 2.4 GHz | 802.15.4 Bluetooth/ANT | nRF5340 | 15 dBm | Bluetooth v5.2 Thread Zigbee® | ADC GPIO I2C I2S PDM PWM SPI UART USB | -40 °C | 105 °C | Surface Mount | 3.6 V | 1.7 V | 3.7 mA |
