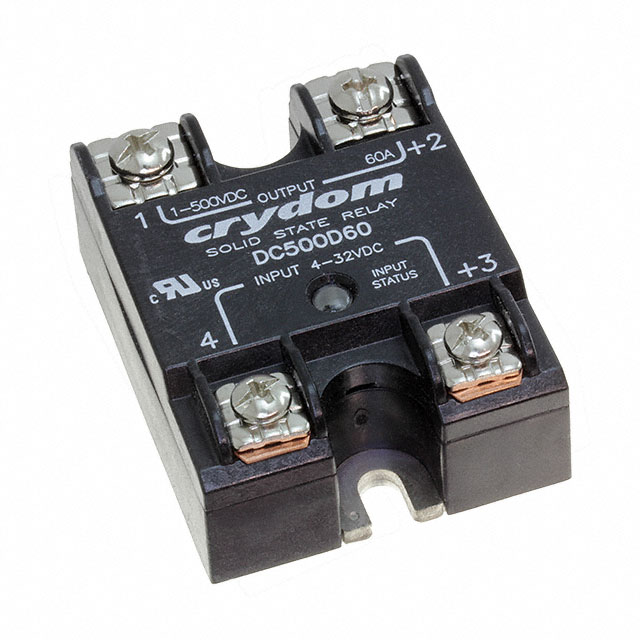

DC500D Series
Manufacturer: Sensata-Crydom
Beta
⌘K
SOLID STATE RELAYS - SSRS SOLID STATE RELAY 500 VDC
| Part | Termination Style | Operating Temperature [Min] | Operating Temperature [Max] | Output Type | On-State Resistance (Max) [Max] | Voltage - Load [Max] | Voltage - Load [Min] | Approval Agency | Load Current | Package / Case | Mounting Type | Voltage - Input [Max] | Voltage - Input [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sensata-Crydom | Screw Terminal | -40 C | 100 °C | DC | 13 mOhms | 500 V | 1 V | CE cURus | 60 A | Hockey Puck | Chassis Mount | 32 VDC | 4 V |
 Sensata-Crydom | Screw Terminal | -40 C | 100 °C | DC | 13 mOhms | 500 V | 1 V | CE cURus | 60 A | Hockey Puck | Chassis Mount | 32 VDC | 4 V |
