T41105 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

SENSOR CONNECTOR, M12, FEMALE, 4 POSITIONS, SCREW SOCKET, STRAIGHT CABLE MOUNT

Part	Contact Material	Features	Connector Type	Applications	Current Rating (Amps)	Shielding	Primary Material	Backshell Material, Plating	Voltage Rating	Shell Finish	Contact Finish - Mating	Termination	Number of Positions	Insert Material [custom]	Insert Material [custom]	Color	Cable Opening [Min]	Cable Opening [Max]	Cable Opening [Max]	Cable Opening [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Orientation	Shell Material	Mounting Type	Shell Size - Insert	Ingress Protection	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]

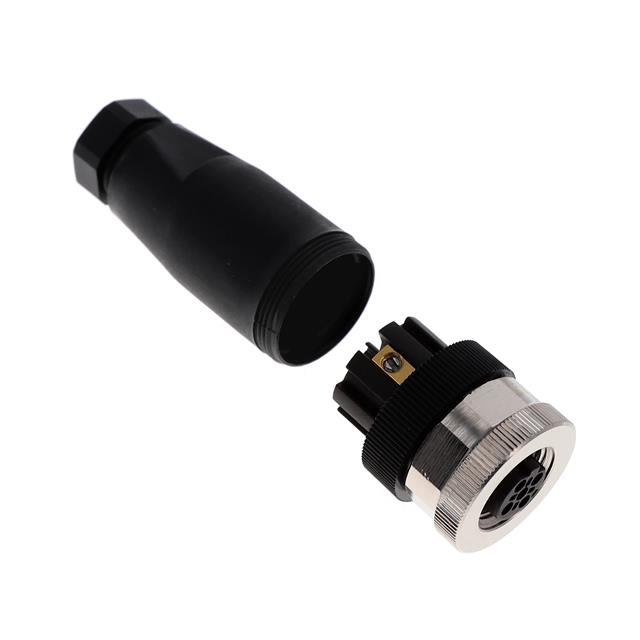

TE Connectivity AMP Connectors T4110501041-000	Zinc Alloy	Backshell Coupling Nut	Plug Female Sockets	Industrial	4 A	Unshielded	Metal	Polybutylene Terephthalate (PBT) Glass Filled	250 V	Nickel	Gold	Screw	4	Nylon	Polyamide (PA)	Silver	0.157 in	0.236 in	6 mm	4 mm	85 °C	-40 C	D	Brass	Free Hanging (In-Line)	M12-4	IP67 - Dust Tight Waterproof	0.076 µm	3 µin	Threaded
TE Connectivity AMP Connectors T4110512052-000	Bronze	Backshell Coupling Nut	Plug Female Sockets	Industrial	4 A	Shielded	Metal	Brass Nickel	60 VDC	Nickel	Silver	Screw	5	Nylon	Polyamide (PA)	Silver	0.236 in	0.315 in	8 mm	6 mm	85 °C	-40 C	D	Brass	Free Hanging (In-Line)	M12-5	IP67 - Dust Tight Waterproof			Threaded	2.03 µm	80 µin
TE Connectivity AMP Connectors T4110512032-000	Bronze	Backshell Coupling Nut	Plug Female Sockets	Industrial	4 A	Shielded	Metal	Brass Nickel	250 V	Nickel	Silver	Screw		Nylon	Polyamide (PA)	Silver	0.236 in	0.315 in	8 mm	6 mm	85 °C	-40 C	D	Brass	Free Hanging (In-Line)	M12-3	IP67 - Dust Tight Waterproof			Threaded	2.03 µm	80 µin
TE Connectivity AMP Connectors T4110511022-000	Bronze	Backshell Coupling Nut	Plug Female Sockets	Industrial	4 A	Shielded	Metal	Brass Nickel	250 V	Nickel	Silver	Screw	2	Nylon	Polyamide (PA)	Silver	0.157 in	0.236 in	6 mm	4 mm	85 °C	-40 C	D	Brass	Free Hanging (In-Line)	M12-2	IP67 - Dust Tight Waterproof			Threaded	2.03 µm	80 µin
TE Connectivity AMP Connectors T4110512031-000	Bronze	Backshell Coupling Nut	Plug Female Sockets	Industrial	4 A	Shielded	Metal	Brass Nickel	250 V	Nickel	Gold	Screw		Nylon	Polyamide (PA)	Silver	0.236 in	0.315 in	8 mm	6 mm	85 °C	-40 C	D	Brass	Free Hanging (In-Line)	M12-3	IP67 - Dust Tight Waterproof	0.076 µm	3 µin	Threaded

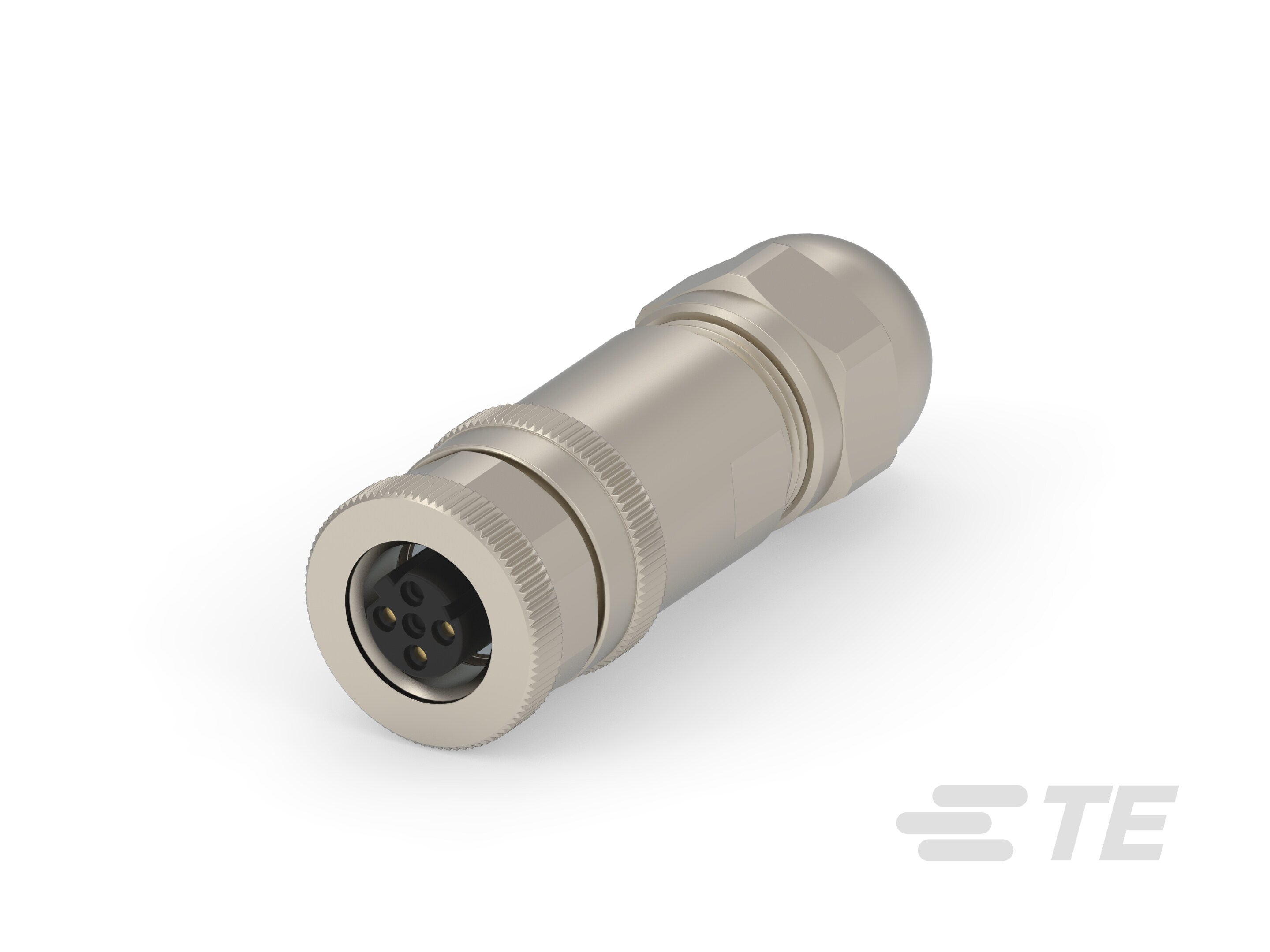

TE Connectivity AMP Connectors T4110511031-000	Bronze	Backshell Coupling Nut	Plug Female Sockets	Industrial	4 A	Shielded	Metal	Brass Nickel	250 V	Nickel	Gold	Screw		Nylon	Polyamide (PA)	Silver	0.157 in	0.236 in	6 mm	4 mm	85 °C	-40 C	D	Brass	Free Hanging (In-Line)	M12-3	IP67 - Dust Tight Waterproof	0.076 µm	3 µin	Threaded
TE Connectivity AMP Connectors T4110511021-000	Zinc Alloy	Backshell Coupling Nut	Plug Female Sockets	Industrial	4 A	Shielded	Metal	Brass Nickel	250 V	Nickel	Gold	Screw	2	Nylon	Polyamide (PA)	Silver	0.157 in	0.236 in	6 mm	4 mm	85 °C	-40 C	D	Brass	Free Hanging (In-Line)	M12-2	IP67 - Dust Tight Waterproof	0.076 µm	3 µin	Threaded

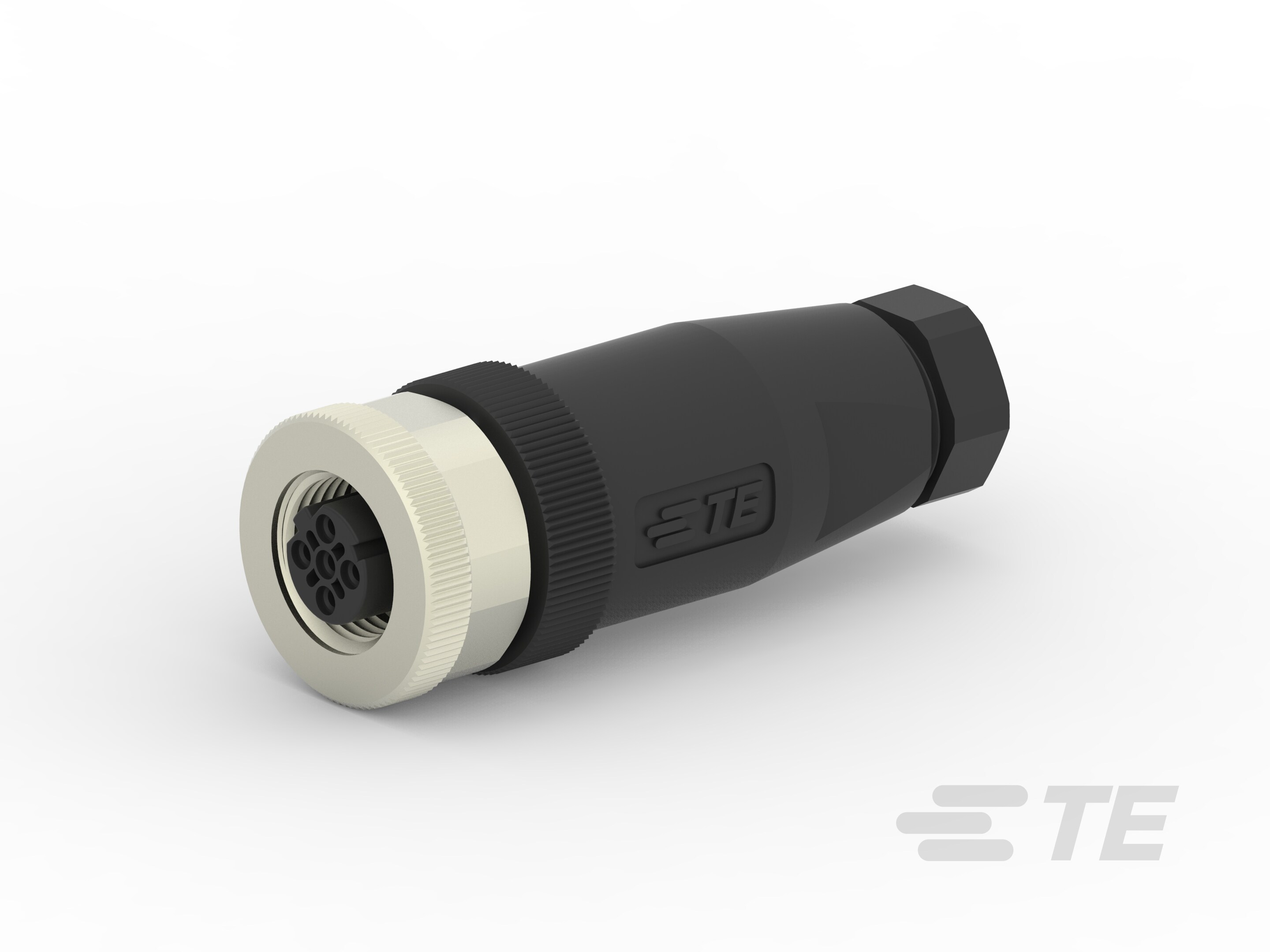

TE Connectivity AMP Connectors T4110501031-000	Bronze	Backshell Coupling Nut	Plug Female Sockets	Industrial	4 A	Unshielded	Metal	Polybutylene Terephthalate (PBT) Glass Filled	250 V	Nickel	Gold	Screw		Nylon	Polyamide (PA)	Silver	0.157 in	0.236 in	6 mm	4 mm	85 °C	-40 C	D	Brass	Free Hanging (In-Line)	M12-3	IP67 - Dust Tight Waterproof	0.076 µm	3 µin	Threaded
TE Connectivity AMP Connectors T4110512042-000	Bronze	Backshell Coupling Nut	Plug Female Sockets	Industrial	4 A	Shielded	Metal	Brass Nickel	250 V	Nickel	Silver	Screw	4	Nylon	Polyamide (PA)	Silver	0.236 in	0.315 in	8 mm	6 mm	85 °C	-40 C	D	Brass	Free Hanging (In-Line)	M12-4	IP67 - Dust Tight Waterproof			Threaded	2.03 µm	80 µin

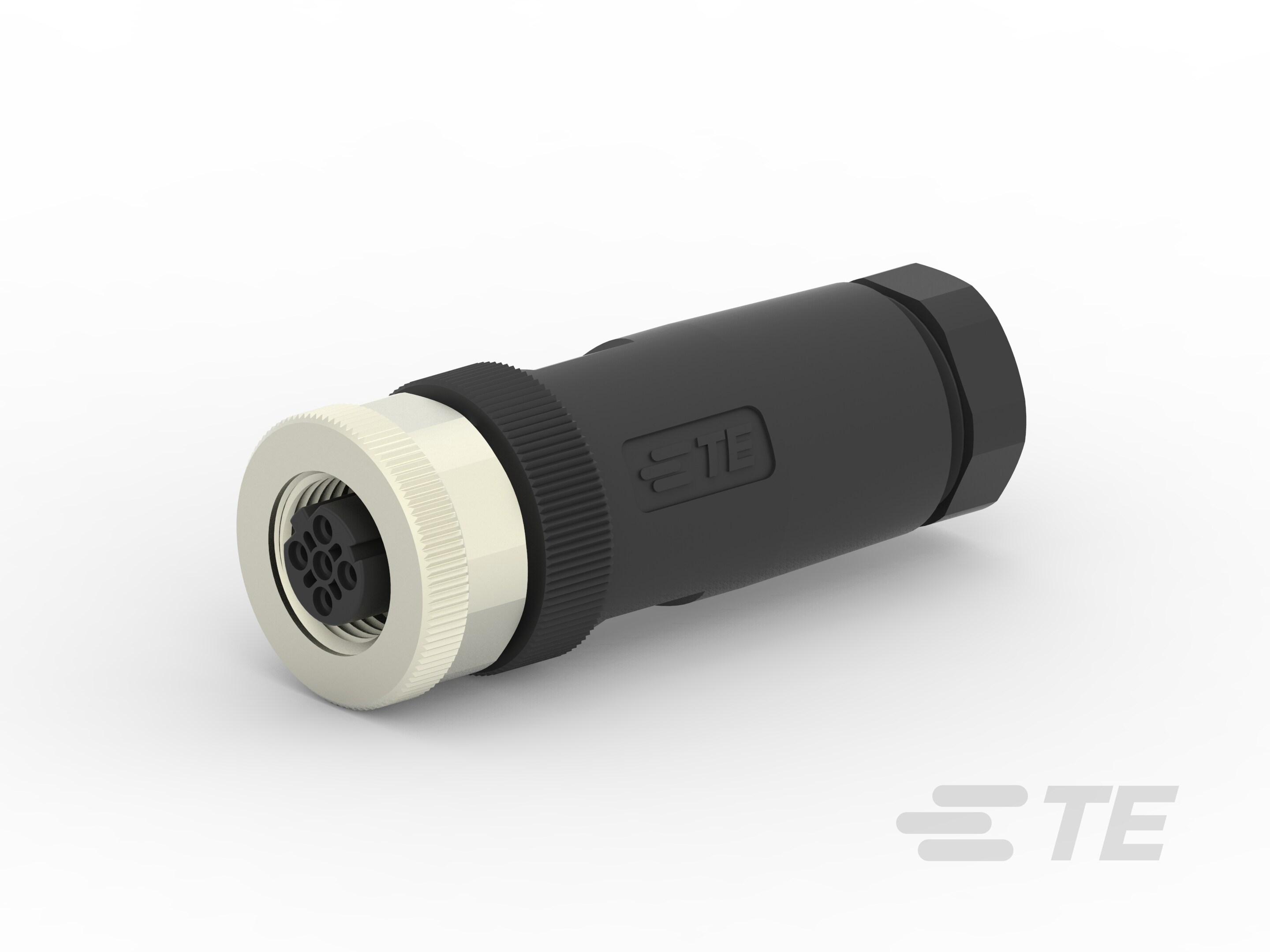

TE Connectivity AMP Connectors T4110502041-000	Zinc Alloy	Backshell Coupling Nut	Plug Female Sockets	Industrial	4 A	Unshielded	Metal	Polybutylene Terephthalate (PBT) Glass Filled	250 V	Nickel	Gold	Screw	4	Nylon	Polyamide (PA)	Silver	0.236 in	0.315 in	8 mm	6 mm	85 °C	-40 C	D	Brass	Free Hanging (In-Line)	M12-4	IP67 - Dust Tight Waterproof	0.076 µm	3 µin	Threaded
