MCVW Series

Pluggable Terminal Blocks 11 Pos 3.5mm pitch Plug 28-16 AWG Screw

Manufacturer: Phoenix Contact

Catalog

Pluggable Terminal Blocks 11 Pos 3.5mm pitch Plug 28-16 AWG Screw

Catalog

Pluggable Terminal Blocks 11 Pos 3.5mm pitch Plug 28-16 AWG Screw

Part	Insulation Height	Insulation Height	Material Flammability Rating	Torque - Screw [Max]	Torque - Screw [Min]	Torque - Screw [Max]	Torque - Screw [Min]	Wire Strip Length	Housing Material	Screw Size	Voltage - UL	Positions Per Level	Type	Voltage - IEC	Mounting Type	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Number of Levels	Color	Current - UL	Current - IEC	Number of Positions	Termination Style	Plug Wire Entry [custom]	Contact Mating Finish	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Pitch	Pitch	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]	Features

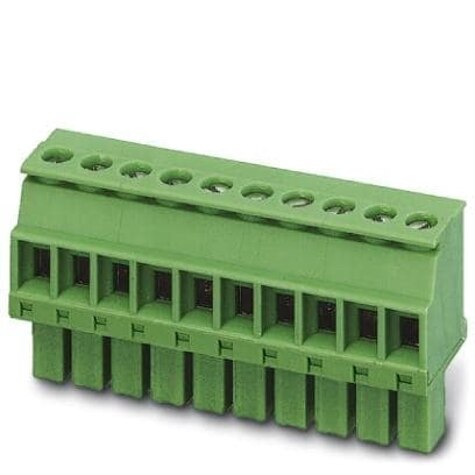

Phoenix Contact 1827075	0.752 in	19.1 mm	UL94 V-0	0.25 Nm	0.22 Nm	2.2 Lb-In	1.9 Lb-In	7 mm	Polyamide (PA) Nylon	M2	300 V	12	Plug Female Sockets	320 V	Free Hanging (In-Line)	1.5 mm²	0.14 mm²	1	Green	8 A	8 A	12	Screw - Rising Cage Clamp	270 °	Tin	14 AWG	30 AWG	3.81 mm	0.15 in
Phoenix Contact 1863149	0.752 in	19.1 mm	UL94 V-0	0.25 Nm	0.22 Nm	2.2 Lb-In	1.9 Lb-In	7 mm	Polyamide (PA) Nylon	M2	300 V	16	Plug Female Sockets	320 V	Free Hanging (In-Line)	1.5 mm²	0.14 mm²	1	Green	8 A	8 A	16	Screw - Rising Cage Clamp	270 °	Tin	14 AWG	30 AWG	3.5 mm	0.138 "	0.14 mm˛	1.5 mm˛	Mating Flange

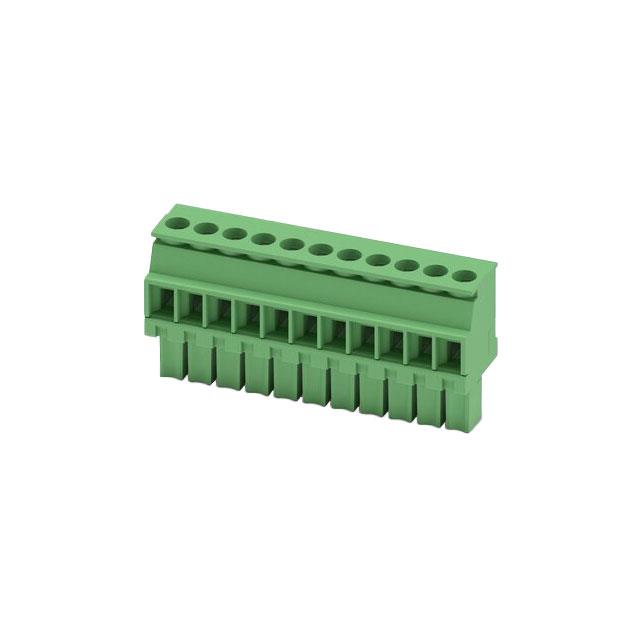

Phoenix Contact 1862946	0.752 in	19.1 mm	UL94 V-0	0.25 Nm	0.22 Nm	2.2 Lb-In	1.9 Lb-In	7 mm	Polyamide (PA) Nylon	M2	300 V	11	Plug Female Sockets	320 V	Free Hanging (In-Line)	1.5 mm²	0.14 mm²	1	Green	8 A	8 A	11	Screw - Rising Cage Clamp	270 °	Tin	14 AWG	30 AWG	3.5 mm	0.138 "
Phoenix Contact 1962464	0.752 in	19.1 mm		0.25 Nm	0.22 Nm	2.2 Lb-In	1.9 Lb-In	7 mm		M2	300 V	5	Plug Female Sockets	160 V	Free Hanging (In-Line)	1.5 mm²	0.14 mm²	1	Black	8 A	8 A	5	Screw - Rising Cage Clamp	270 °	Tin	14 AWG	30 AWG	3.5 mm	0.138 "	0.14 mm˛	1.5 mm˛

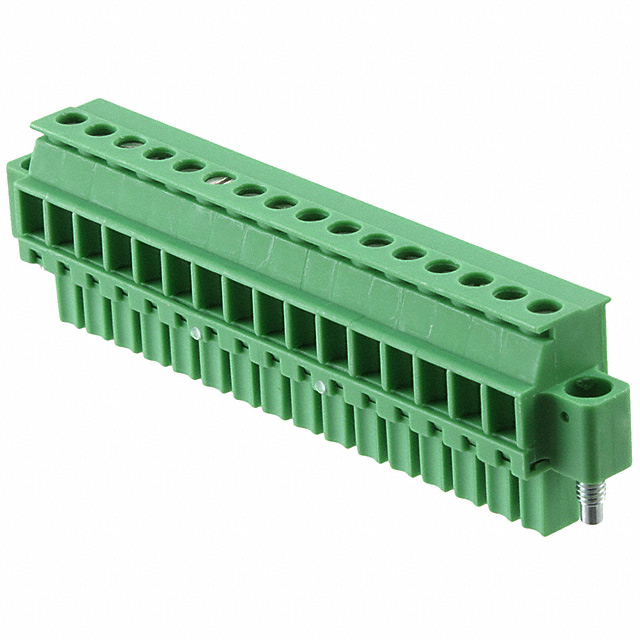

Phoenix Contact 1828634	0.752 in	19.1 mm	UL94 V-0	0.25 Nm	0.22 Nm	2.2 Lb-In	1.9 Lb-In	7 mm	Polyamide (PA) Nylon	M2	300 V	16	Plug Female Sockets	320 V	Free Hanging (In-Line)	1.5 mm²	0.14 mm²	1	Green	8 A	8 A	16	Screw - Rising Cage Clamp	270 °	Tin	14 AWG	30 AWG	3.81 mm	0.15 in	0.14 mm˛	1.5 mm˛	Mating Flange
Phoenix Contact 1862878	0.752 in	19.1 mm	UL94 V-0	0.25 Nm	0.22 Nm	2.2 Lb-In	1.9 Lb-In	7 mm	Polyamide (PA) Nylon	M2	300 V	4	Plug Female Sockets	320 V	Free Hanging (In-Line)	1.5 mm²	0.14 mm²	1	Green	8 A	8 A	4	Screw - Rising Cage Clamp	270 °	Tin	14 AWG	30 AWG	3.5 mm	0.138 "

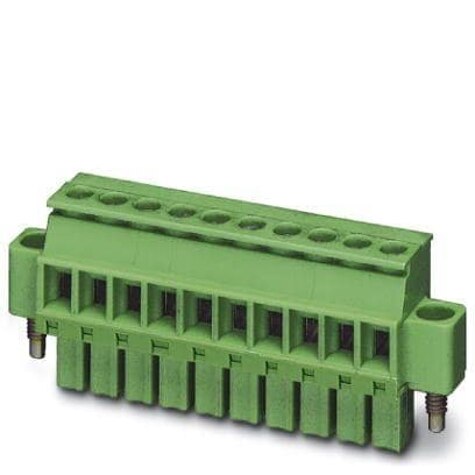

Phoenix Contact 1863107	0.752 in	19.1 mm	UL94 V-0	0.25 Nm	0.22 Nm	2.2 Lb-In	1.9 Lb-In	7 mm	Polyamide (PA) Nylon	M2	300 V	12	Plug Female Sockets	320 V	Free Hanging (In-Line)	1.5 mm²	0.14 mm²	1	Green	8 A	8 A	12	Screw - Rising Cage Clamp	270 °	Tin	14 AWG	30 AWG	3.5 mm	0.138 "			Mating Flange
Phoenix Contact 1863136	0.752 in	19.1 mm	UL94 V-0	0.25 Nm	0.22 Nm	2.2 Lb-In	1.9 Lb-In	7 mm	Polyamide (PA) Nylon	M2	300 V	15	Plug Female Sockets	320 V	Free Hanging (In-Line)	1.5 mm²	0.14 mm²	1	Green	8 A	8 A	15	Screw - Rising Cage Clamp	270 °	Tin	14 AWG	30 AWG	3.5 mm	0.138 "	0.14 mm˛	1.5 mm˛	Mating Flange
Phoenix Contact 1862881	0.752 in	19.1 mm	UL94 V-0	0.25 Nm	0.22 Nm	2.2 Lb-In	1.9 Lb-In	7 mm	Polyamide (PA) Nylon	M2	300 V	5	Plug Female Sockets	320 V	Free Hanging (In-Line)	1.5 mm²	0.14 mm²	1	Green	8 A	8 A	5	Screw - Rising Cage Clamp	270 °	Tin	14 AWG	30 AWG	3.5 mm	0.138 "	0.14 mm˛	1.5 mm˛
Phoenix Contact 1828582	0.752 in	19.1 mm	UL94 V-0	0.25 Nm	0.22 Nm	2.2 Lb-In	1.9 Lb-In	7 mm	Polyamide (PA) Nylon	M2	300 V	11	Plug Female Sockets	320 V	Free Hanging (In-Line)	1.5 mm²	0.14 mm²	1	Green	8 A	8 A	11	Screw - Rising Cage Clamp	270 °	Tin	14 AWG	30 AWG	3.81 mm	0.15 in	0.14 mm˛	1.5 mm˛	Mating Flange
