1N2838 Series

Catalog

DIODE ZENER 100V 50W TO3

Part	Package / Case	Supplier Device Package	Voltage - Zener (Nom) (Vz)	Power - Max [Max]	Impedance (Max) (Zzt) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Tolerance	Voltage - Forward (Vf) (Max) @ If [Max]	Mounting Type	Current - Reverse Leakage @ Vr

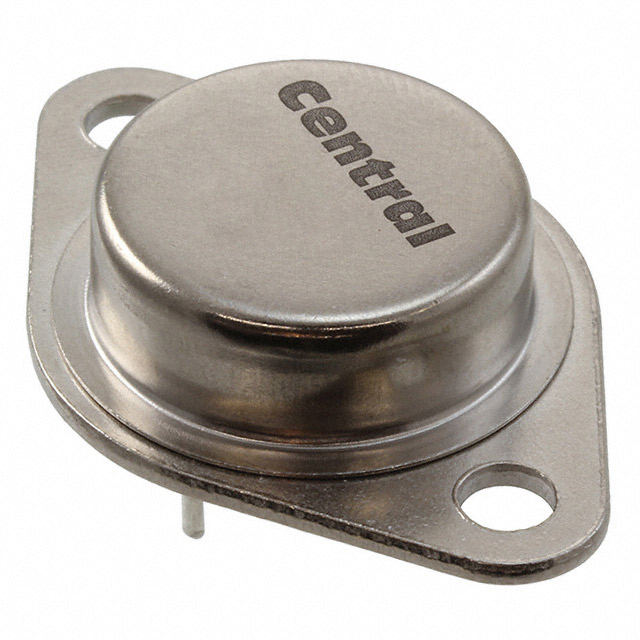

Central Semiconductor Corp 1N2838B PBFREE	TO-204AA TO-3	TO-3	100 V	50 W	20 Ohms	175 °C	-65 C	5 %	1.5 V	Through Hole	5 µA
