32947 Series

Catalog

PG R 22-16 COMM 22-18 MIL 6 ROHS COMPLIANT: YES

Part	Color	Mounting Type	Termination	Length - Overall [x]	Length - Overall [x]	Width - Outer Edges [y]	Width - Outer Edges [y]	Terminal Type	Stud/Tab Size	Insulation	Thickness	Thickness	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Contact Material	Material - Insulation	Wire Gauge [Max]	Wire Gauge [Min]	Features	Contact Finish

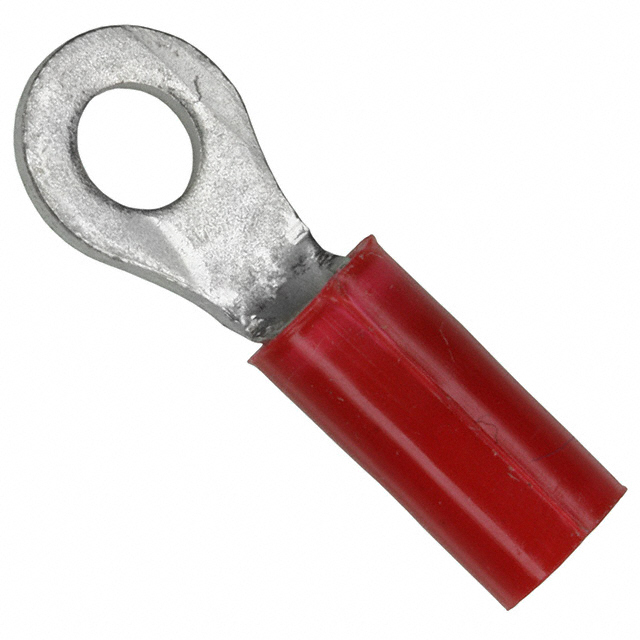

TE Connectivity Raychem Cable Protection 2-32947-1	Red	Free Hanging (In-Line)	Crimp	0.809 in	20.55 mm	7.14 mm	0.281 in	Circular	6 Stud	Insulated	0.031 in	0.79 mm	2.03 mm	3.18 mm	0.125 "	0.08 in	Copper	Poly-Vinyl Chloride (PVC)	22 AWG	16 AWG	Serrated Termination	Tin
TE Connectivity Raychem Cable Protection 8-32947-1	Red	Free Hanging (In-Line)	Crimp	0.809 in	20.55 mm	7.14 mm	0.281 in	Circular	6 Stud	Insulated	0.031 in	0.79 mm	2.03 mm	3.18 mm	0.125 "	0.08 in	Copper	Poly-Vinyl Chloride (PVC)	22 AWG	16 AWG	Serrated Termination	Tin
