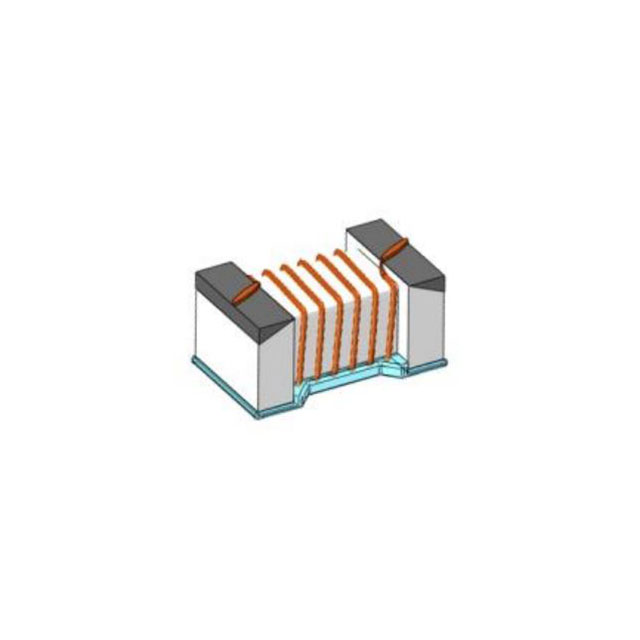

MWSD1005C6 Series

Manufacturer: Shenzhen Sunlord Electronics Co., Ltd.

Catalog

FIXED IND 6.5NH 700MA 90MOHM SMD

Part	Q @ Freq [custom]	Q @ Freq [custom]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Current Rating (Amps)	Package / Case	Inductance	Inductance Frequency - Test	Type	Material - Core	Frequency - Self Resonant	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	DC Resistance (DCR) [Max]	Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	DC Resistance (DCR)	Q @ Freq	Q @ Freq [custom]
Shenzhen Sunlord Electronics Co., Ltd. MWSD1005C6N5BTM01	25	250 MHz	0.026 in	0.65 mm	0.024 "	1.1 mm	0.6 mm	0.043 in	Surface Mount	700 mA	0402 (1005 Metric)	6.5 nH	100 MHz	Drum Core Wirewound	Ceramic	6 GHz	0402	125 °C	-40 C	Unshielded	90 mOhm	0.1 nH
Shenzhen Sunlord Electronics Co., Ltd. MWSD1005C6N0CTM81					0.021 "	1.1 mm	0.53 mm	0.043 in	Surface Mount	1.6 A	0402 (1005 Metric)	6 nH	100 MHz	Drum Core Wirewound	Ceramic	8 GHz	0402	125 °C	-40 C	Unshielded		0.2 nH	0.7 mm	0.028 "	56 mOhm	32 250 MHz
Shenzhen Sunlord Electronics Co., Ltd. MWSD1005C6N8KT		250 MHz	0.026 in	0.65 mm	0.024 "	1.1 mm	0.6 mm	0.043 in	Surface Mount	0.61 A	0402 (1005 Metric)	6.8 nH	250 MHz	Drum Core Wirewound	Ceramic	6 GHz	0402	125 °C	-40 C	Unshielded		10 %			105 mOhm		24
Shenzhen Sunlord Electronics Co., Ltd. MWSD1005C6N1CTM81					0.021 "	1.1 mm	0.53 mm	0.043 in	Surface Mount	1.6 A	0402 (1005 Metric)	6.1 nH	100 MHz	Drum Core Wirewound	Ceramic	8 GHz	0402	125 °C	-40 C	Unshielded		0.2 nH	0.7 mm	0.028 "	56 mOhm	32 250 MHz
Shenzhen Sunlord Electronics Co., Ltd. MWSD1005C6N6GTM81		250 MHz			0.021 "	1.1 mm	0.53 mm	0.043 in	Surface Mount	1.28 A	0402 (1005 Metric)	6.6 nH	100 MHz	Drum Core Wirewound	Ceramic	7 GHz	0402	125 °C	-40 C	Unshielded	78 mOhm	2 %	0.7 mm	0.028 "			30
Shenzhen Sunlord Electronics Co., Ltd. MWSD1005C6N2BTM01	25	250 MHz	0.026 in	0.65 mm	0.024 "	1.1 mm	0.6 mm	0.043 in	Surface Mount	700 mA	0402 (1005 Metric)	6.2 nH	100 MHz	Drum Core Wirewound	Ceramic	6 GHz	0402	125 °C	-40 C	Unshielded	90 mOhm	0.1 nH
Shenzhen Sunlord Electronics Co., Ltd. MWSD1005C6N8GTM81		250 MHz			0.021 "	1.1 mm	0.53 mm	0.043 in	Surface Mount	1.45 A	0402 (1005 Metric)	6.8 nH	100 MHz	Drum Core Wirewound	Ceramic	7 GHz	0402	125 °C	-40 C	Unshielded	68 mOhm	2 %	0.7 mm	0.028 "			30
Shenzhen Sunlord Electronics Co., Ltd. MWSD1005C6N2CTM81	33	250 MHz			0.021 "	1.1 mm	0.53 mm	0.043 in	Surface Mount	1.6 A	0402 (1005 Metric)	6.2 nH	100 MHz	Drum Core Wirewound	Ceramic	8 GHz	0402	125 °C	-40 C	Unshielded		0.2 nH	0.7 mm	0.028 "	56 mOhm
Shenzhen Sunlord Electronics Co., Ltd. MWSD1005C6N2BTM81	33	250 MHz			0.021 "	1.1 mm	0.53 mm	0.043 in	Surface Mount	1.6 A	0402 (1005 Metric)	6.2 nH	100 MHz	Drum Core Wirewound	Ceramic	8 GHz	0402	125 °C	-40 C	Unshielded		0.1 nH	0.7 mm	0.028 "	56 mOhm
Shenzhen Sunlord Electronics Co., Ltd. MWSD1005C6N2KT	25	250 MHz	0.026 in	0.65 mm	0.024 "	1.1 mm	0.6 mm	0.043 in	Surface Mount	0.71 A	0402 (1005 Metric)	6.2 nH	250 MHz	Drum Core Wirewound	Ceramic	6 GHz	0402	125 °C	-40 C	Unshielded	78 mOhm	10 %
