075000 Series
Manufacturer: Molex
Beta
⌘K
CONN D-TYPE PLUG 28POS VERT SLDR
| Part | Contact Material | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Termination | Mounting Type | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Features | Dielectric Material | Operating Temperature [Max] | Operating Temperature [Min] | Contact Type | Color | Connector Type | Voltage Rating | Material Flammability Rating | Number of Rows | Contact Finish | Connector Style | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

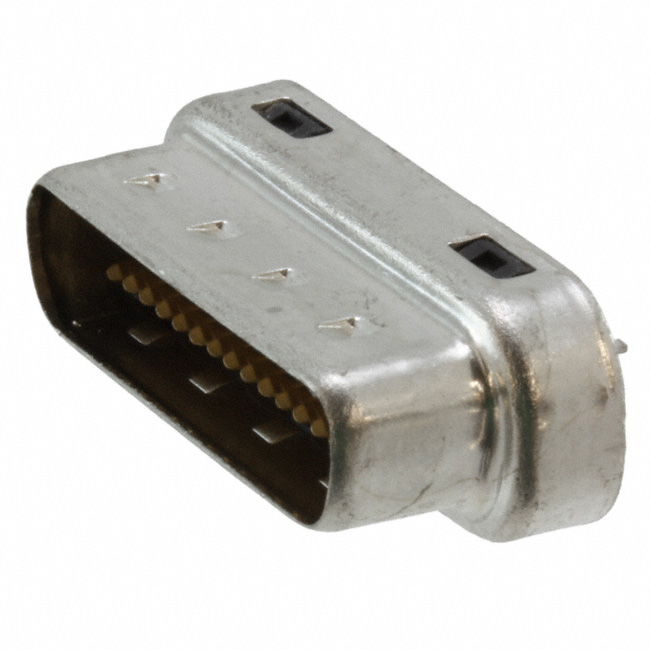

 Molex | Copper Alloy | 28 | 15 µin | 0.38 µm | Solder | Through Hole | 0.05 | 0.065 | Grounding Indents Shielded | Polymer Glass Filled | 85 °C | -20 C | Signal | Black | Male Pins Plug | 40 V | UL94 V-0 | 2 | Gold | D-Type | 1.5 A |

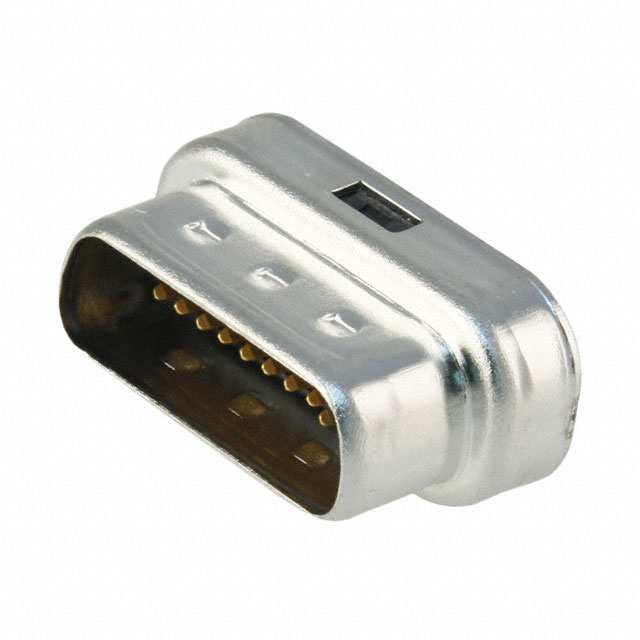

 Molex | Copper Alloy | 18 | 15 µin | 0.38 µm | Solder | Through Hole | 0.05 | 0.065 | Grounding Indents Shielded | Polymer Glass Filled | 85 °C | -20 C | Signal | Black | Male Pins Plug | 40 V | UL94 V-0 | 2 | Gold | D-Type | 1.5 A |
