2006-161 Series

Catalog

CONN FUSE DISCONNECT TERMINAL BLOCK 2 POS PUSH-IN CAGE CLAMP T DIN RAIL 10A BOX

Part	Material - Insulation	Stripping Length [Max]	Stripping Length [Min]	Color	Termination Style	Fuse Type [y]	Fuse Type [x]	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Number of Positions	Current - IEC	Voltage - IEC	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Type	Number of Levels	Disconnect Type	Terminal - Width [y]	Features

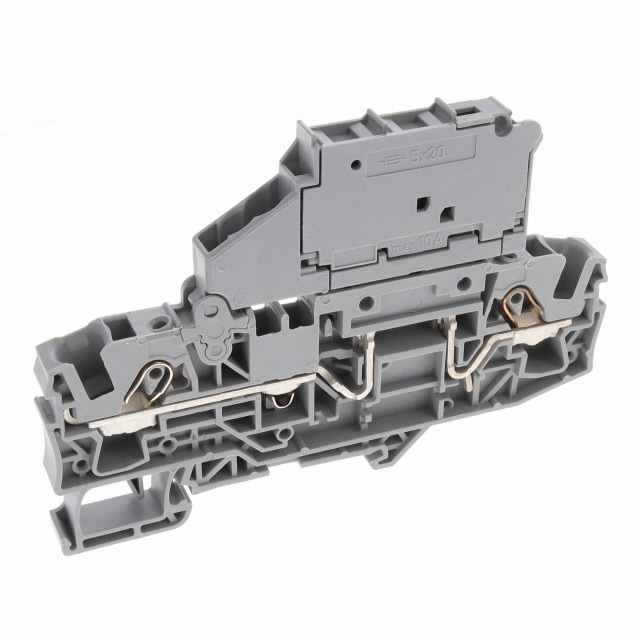

WAGO Corporation 2006-1611	Nylon 6/6 Polyamide (PA66)	15 mm	13 mm	Gray	Push In Spring	20 mm	5 mm	8 AWG	14 AWG	2	10 A	800 V	10 mm²	2.5 mm²	Disconnect	1	Fuse	7.5 mm

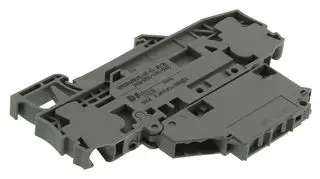

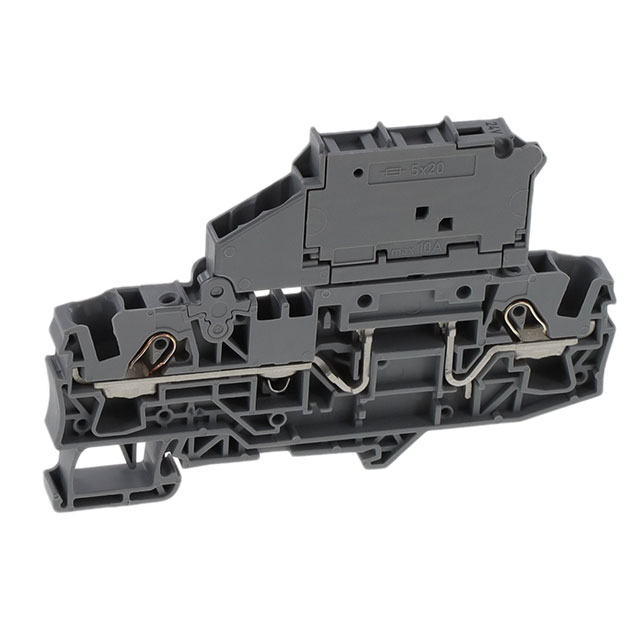

WAGO Corporation 2006-1611/1000-541	Nylon 6/6 Polyamide (PA66)	15 mm	13 mm	Gray	Push In Spring	20 mm	5 mm	8 AWG	14 AWG	2	10 A	800 V	10 mm²	2.5 mm²	Disconnect	1	Fuse	7.5 mm	LED Indicator
